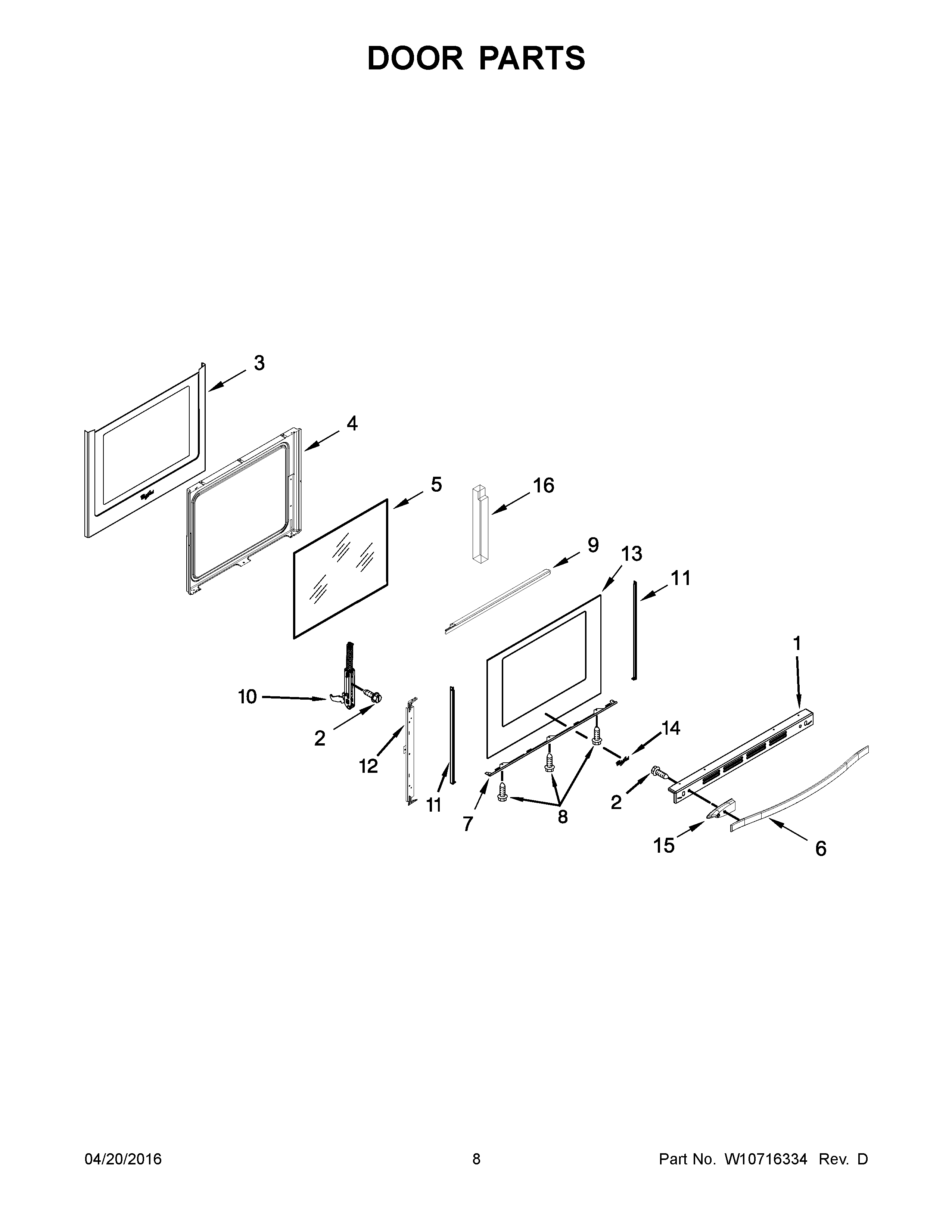

WEG730H0DB0 05 – DOOR PARTS

WEG730H0DB0 05 – DOOR PARTS

Written by

in

WEG730H0DB0 05 – DOOR PARTS

Products

PositionProduct
1BW10335333 Whirlpool Vent Trim
1AWPW10335331 Whirlpool Trim Vent
1W10294855 Whirlpool Vent Trim
2WPW10317886 Whirlpool Screw
3WPW10704053 Whirlpool Door Glass
4WPW10297318 Whirlpool Door Liner
5WPW10300487 Whirlpool Door Glass
6W10300490 Whirlpool Door Handle
6BWPW10618239 Whirlpool Door Handle
6AW10300489 Whirlpool Door Handle
7W10334031 Whirlpool Glass Bracket
7AWPW10333990 Whirlpool Glass Bracket
8WPW10031790 Whirlpool Screw
9W10294853 Whirlpool Mounting Bracket
10WPW10440013 Whirlpool Door Hinge
11AW10334003 Whirlpool Door Trim
11W10334004 Whirlpool Door Trim
12W11116956 Whirlpool Support Bracket
13AWPW10333987 Whirlpool Door Glass
13WPW10333988 Whirlpool Door Glass
14W11178521 Whirlpool Dishwasher Nameplate
15WPW10254688 Whirlpool Spacer
16W11688565 Whirlpool Insulation
