WEG730H0DS0 06 – DRAWER PARTS

WEG730H0DS0 06 – DRAWER PARTS

Written by

in

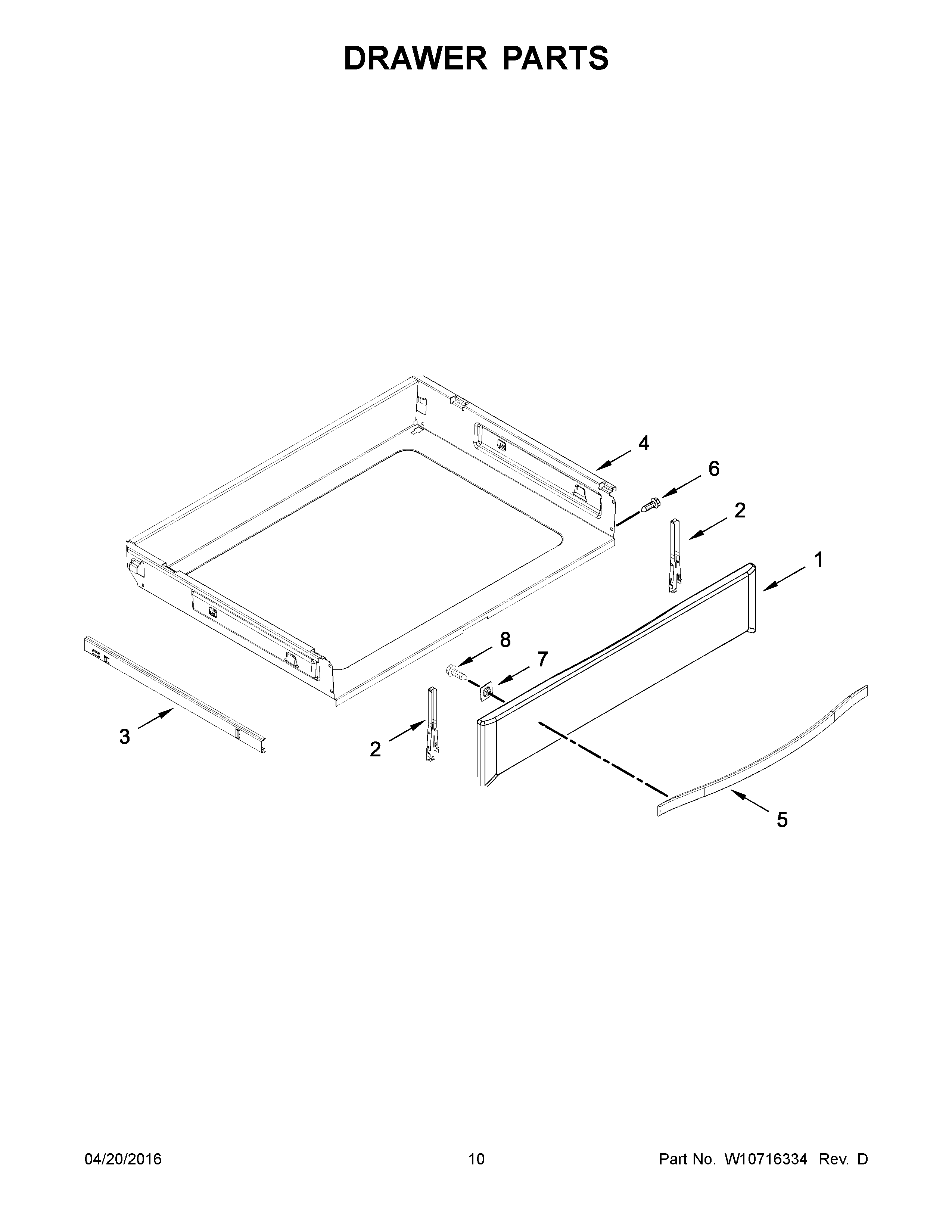

WEG730H0DS0 06 – DRAWER PARTS

Products

PositionProduct
1AW11449681 Whirlpool Drawer Panel
1W11449686 Whirlpool Drawer Panel
1BW10859916 Whirlpool Drawer Panel
2WPW10318026 Whirlpool Mounting Bracket
3AWPW10441805 Whirlpool Slide Drawer
3WPW10441804 Whirlpool Drawer Slide
4W10813962 Whirlpool Utility Drawer
5W10634252 Whirlpool Door Handle
5BWPW10618239 Whirlpool Door Handle
5AW10634251 Whirlpool Door Handle
6WP3196557 Whirlpool Screw
7SPACER, HANDLE
8WP3400882 Whirlpool Screw
