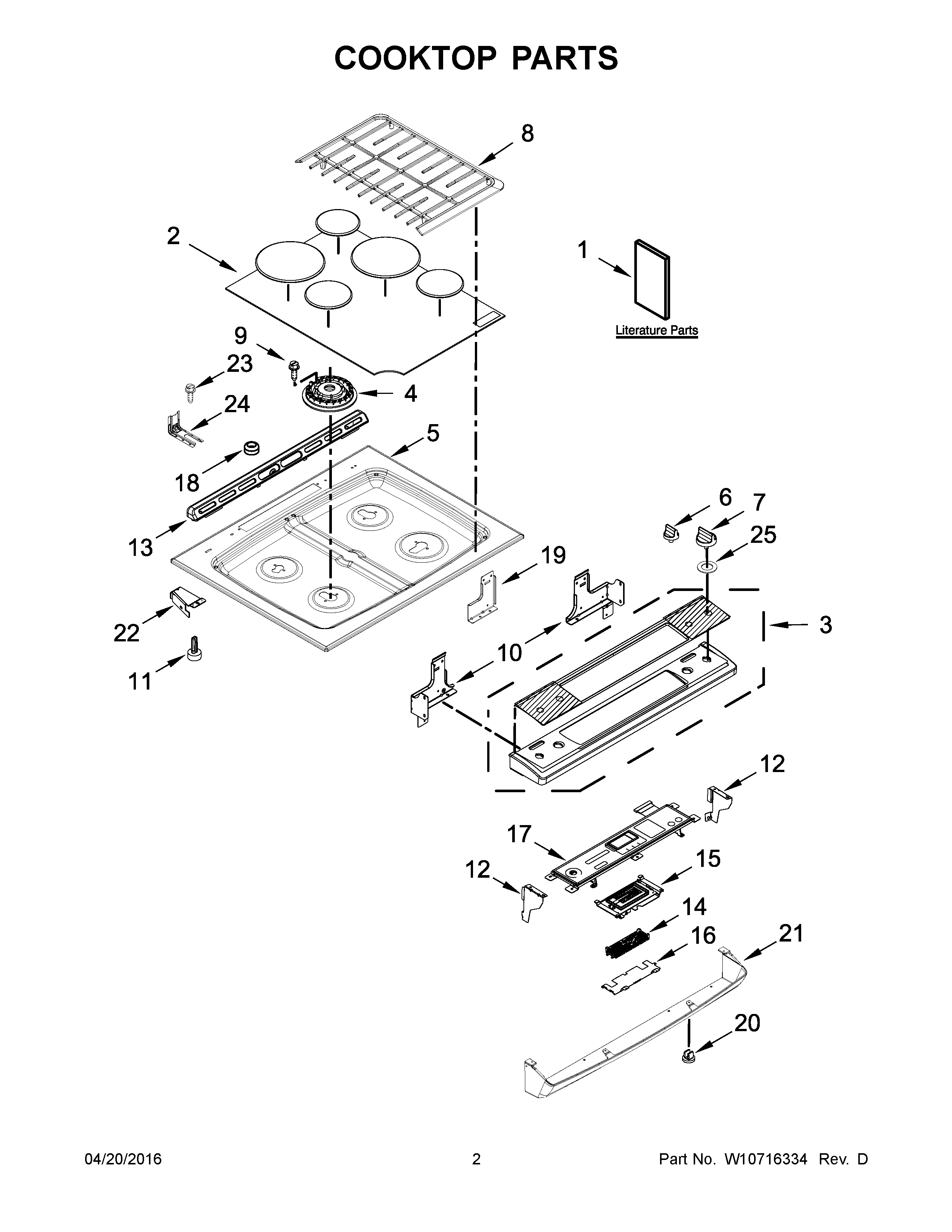

WEG730H0DW0 02 – COOKTOP PARTS

Products

Position	Product
NI	16515 Whirlpool Clip
NI	W11025616 Whirlpool Wire Harness
NI	W10580281 Whirlpool Wire Harness
NI	CLAMP, WIRE
NI	W10580229 Whirlpool Grounding Wire
NI	3400964 Whirlpool Oven Clip
NI	W11176109 Whirlpool Wire Harness
NI	W11198972 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
1I	W11087486 Whirlpool Spud Orifice
1F	GUIDE, QUICK START
1G	QUICK START GUIDE (FRENCH)
1H	SPUD-ORFCE
1	INSTRUCTIONS, INSTALLATION
1A	GUIDE, USE & CARE
1C	WIRING DIAGRAM
1B	SHEET, TECH
1D	SAFER COOKING TIPS (ENGLISH
1E	Safer Cooking Tips (French)
2	WPW10479988 Whirlpool Burner Cap
2A	KIT, BURNER CAP (WETSTONE)
3B	W10728508 Whirlpool Control Panel
3A	W10728510 Whirlpool Control Panel Assembly
3	W10728512 Whirlpool Control Panel
4	WPW10256028 Whirlpool Stove Surface Burner Base
4B	WPW10256025 Whirlpool Burner Head
4A	W10836467 Whirlpool Burner Head
5A	COOKTOP (WHITE)
5	W10712112 Whirlpool Cooktop Assembly
6B	W11129406 Whirlpool Knob
6A	W10569591 Whirlpool Knob
6	W10569590 Whirlpool Knob Assembly
7	W11684561 Whirlpool Knob
7A	W10569584 Whirlpool Knob
7B	W10818230 Whirlpool Range Stainless Steel Knob
8	W11175813 Whirlpool Grate Kit
8A	KIT, GRATE (WETSTONE)
9	WP3368921 Whirlpool Screw
10A	W10289169 Whirlpool Bracket Support
10	W10289170 Whirlpool Support Bracket
11	GLIDE, MAIN TOP
12	W10547960 Whirlpool Endcap Panel
12A	W10547961 Whirlpool Endcap Panel
13A	W10577780 Whirlpool Vent Trim Assembly
13	W11256338 Whirlpool Vent Trim
14	W11050551 Whirlpool Electronic Control Board + Core
15	WPW10603098 Whirlpool Stove Electronic Control Board + Core
16	W10558372 Whirlpool Bracket Mounting
17B	W10728523 Whirlpool Membrane Switch
17	W10728529 Whirlpool Membrane Switch
17A	W10728525 Whirlpool Membrane Switch
18	W11104127 Whirlpool Bumper Assembly
19	W10598048 Whirlpool Support Bracket
20	W11025100 Whirlpool Insert
21B	WPL W10581493
21A	WPL W10570528
21	W11218703 Whirlpool Mounting Bracket
22	W10162253 Whirlpool Mounting Bracket
22A	W10162252 Whirlpool Bracket Mounting
23	SCREW, ANTI-TIP KIT
24	W11502257 Whirlpool Anchor Tip
25	W11131701 Whirlpool Bushing
