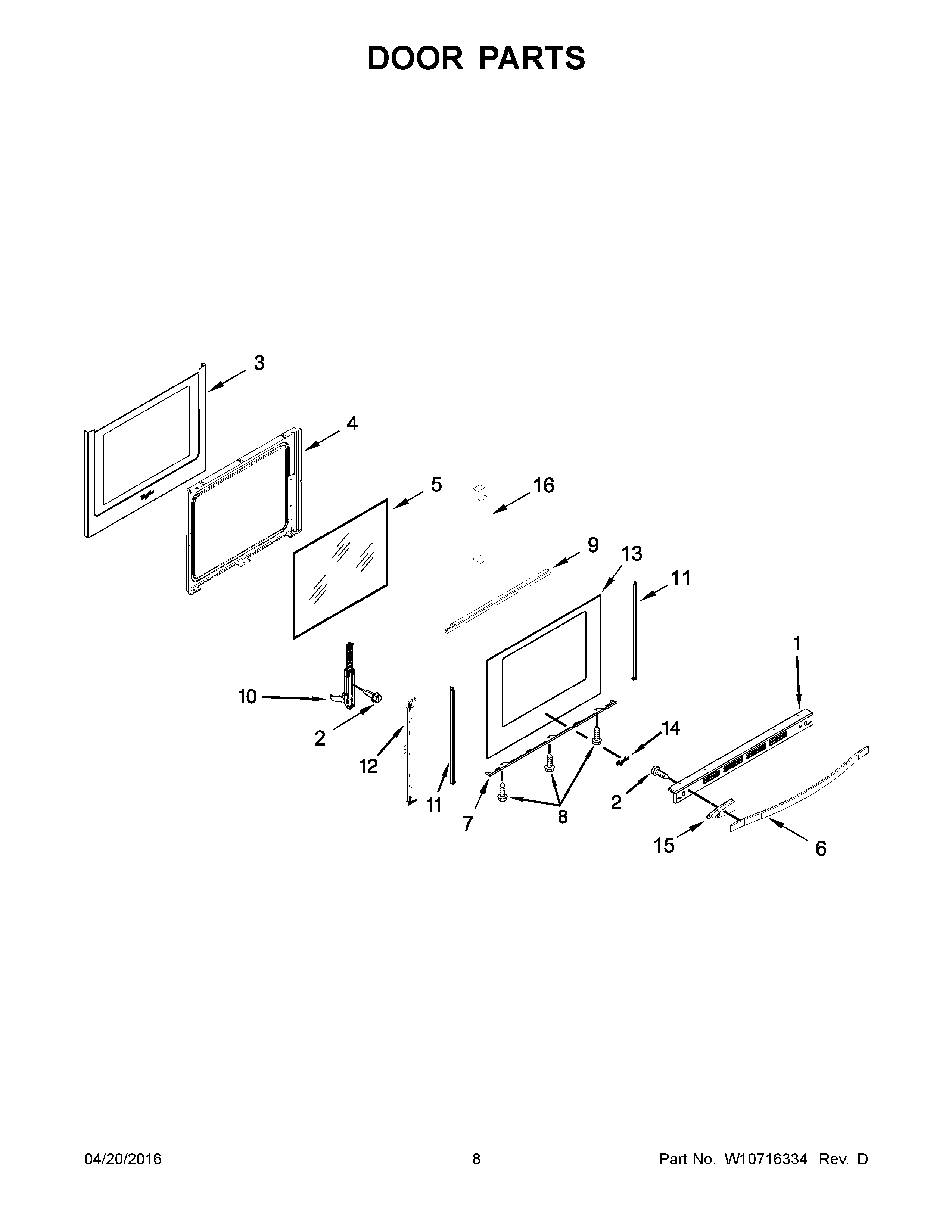

WEG730H0DW0 05 – DOOR PARTS

Products

Position	Product
1B	W10335333 Whirlpool Vent Trim
1A	WPW10335331 Whirlpool Trim Vent
1	W10294855 Whirlpool Vent Trim
2	WPW10317886 Whirlpool Screw
3	WPW10704053 Whirlpool Door Glass
4	WPW10297318 Whirlpool Door Liner
5	WPW10300487 Whirlpool Door Glass
6	W10300490 Whirlpool Door Handle
6B	WPW10618239 Whirlpool Door Handle
6A	W10300489 Whirlpool Door Handle
7	W10334031 Whirlpool Glass Bracket
7A	WPW10333990 Whirlpool Glass Bracket
8	WPW10031790 Whirlpool Screw
9	W10294853 Whirlpool Mounting Bracket
10	WPW10440013 Whirlpool Door Hinge
11A	W10334003 Whirlpool Door Trim
11	W10334004 Whirlpool Door Trim
12	W11116956 Whirlpool Support Bracket
13A	WPW10333987 Whirlpool Door Glass
13	WPW10333988 Whirlpool Door Glass
14	W11178521 Whirlpool Dishwasher Nameplate
15	WPW10254688 Whirlpool Spacer
16	W11688565 Whirlpool Insulation
