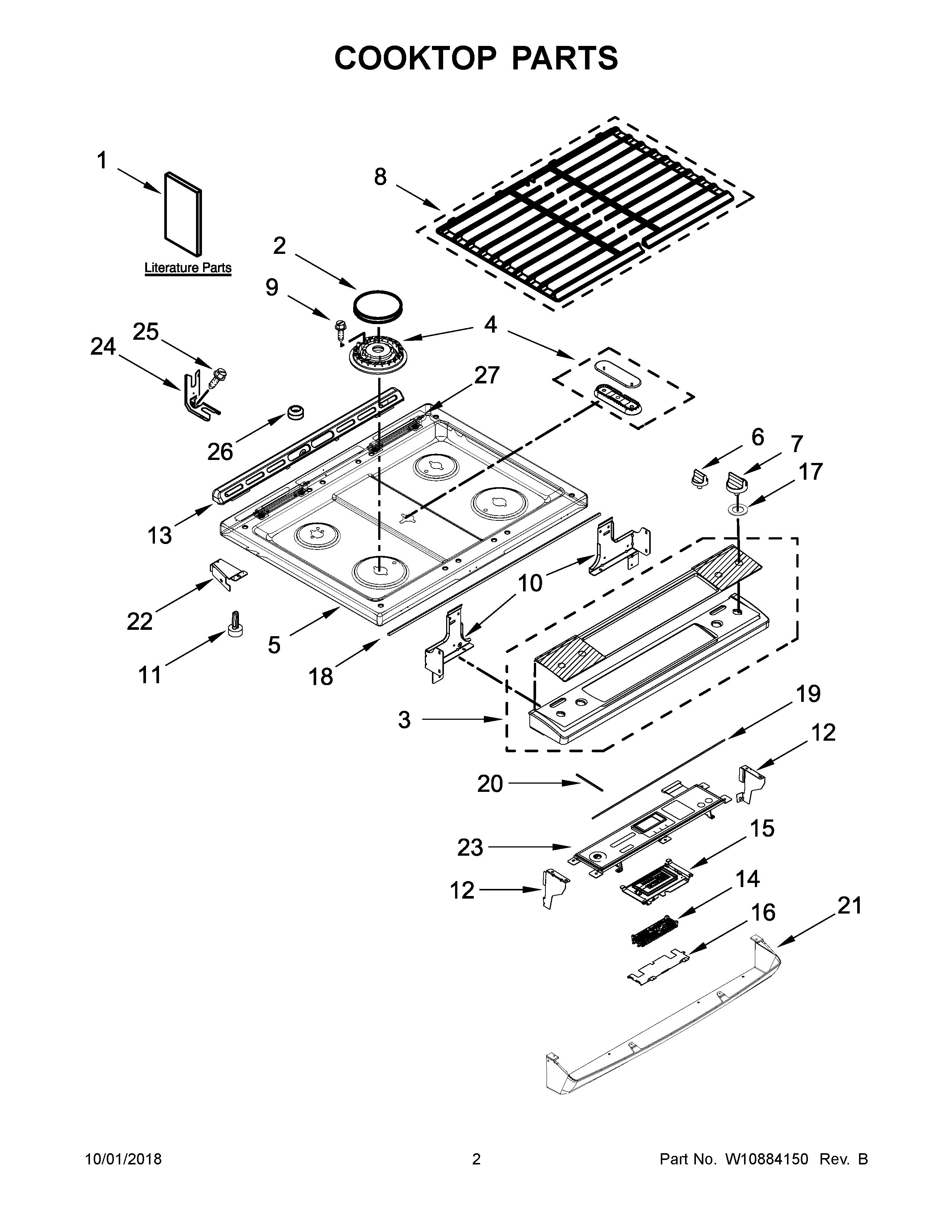

WEG745H0FE0 02 – COOKTOP PARTS

WEG745H0FE0 02 – COOKTOP PARTS

Written by

in

WEG745H0FE0 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11025616 Whirlpool Wire Harness
NI	W10908899 Whirlpool Wire Harness
NI	CLAMP, WIRE
NI	W10580229 Whirlpool Grounding Wire
NI	W11176109 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	W11198972 Whirlpool Wire Harness
1A	GUIDE, USE AND CARE
1D	GUIDE, QUICK START
1	INSTRUCTIONS, INSTALLATION
1B	SHEET, TECH
1E	QUICK START GUIDE (FRENCH)
1C	DIAGRAM, WIRING
2	W11161846 Whirlpool Burner Cap
3B	W10885068 Whirlpool Control Panel
3A	W10728505 Whirlpool Control Panel
3	W10728507 Whirlpool Control Panel
4C	W11162114 Whirlpool Top Burner Assembly
4B	WPW10256025 Whirlpool Burner Head
4	WPW10256028 Whirlpool Stove Surface Burner Base
4A	W10836467 Whirlpool Burner Head
5A	W10885067 Whirlpool Cooktop
5	W10885066 Whirlpool Cooktop
6	W11211501 Whirlpool Knob Assembly
7	KNOB
8	W11381339 Whirlpool Grate Kit
9	W11241230 Whirlpool Screw
10B	W10598048 Whirlpool Support Bracket
10	W10289170 Whirlpool Support Bracket
10A	W10289169 Whirlpool Bracket Support
11	GLIDE, MAIN TOP
12A	W10547961 Whirlpool Endcap Panel
12	W10547960 Whirlpool Endcap Panel
13	W11256338 Whirlpool Vent Trim
13A	W10577780 Whirlpool Vent Trim Assembly
14	W10885069 Whirlpool Electronic Control Board
15	W11122852 Whirlpool Electronic Control Board + Core
16	W10558372 Whirlpool Bracket Mounting
17	W11131701 Whirlpool Bushing
18	W10802441 Whirlpool Gasket
19	W10802457 Whirlpool Gasket
20	W11744482 Whirlpool Gasket Assembly
21A	WPL W10570528
21	W11218703 Whirlpool Mounting Bracket
22	W10162253 Whirlpool Mounting Bracket
22A	W10162252 Whirlpool Bracket Mounting
23A	W10728522 Whirlpool Membrane Switch
23B	W10728529 Whirlpool Membrane Switch
23	W10728523 Whirlpool Membrane Switch
24	W11502257 Whirlpool Anchor Tip
25	SCREW, ANTI-TIP KIT
26	W11104127 Whirlpool Bumper Assembly
