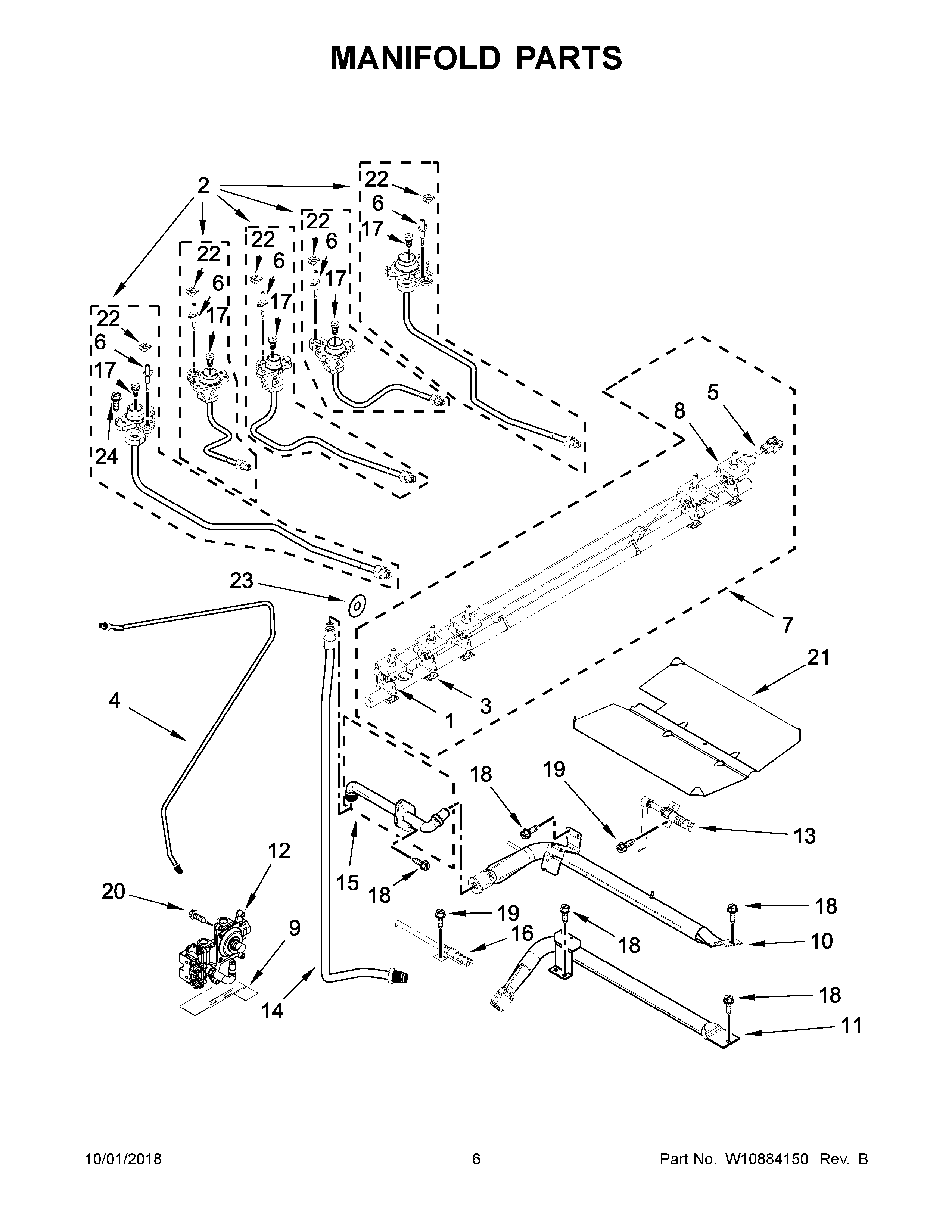

WEG745H0FE0 04 – MANIFOLD PARTS

Products

PositionProduct
NISPUD-ORFCE
NIW11087486 Whirlpool Spud Orifice
NICABINET (NOT A SERVICEABLE PART)
1W11666001 Whirlpool Screw
2AW10552127 Whirlpool Orifice Holder
2DW10885071 Whirlpool Orifice Holder
2W10552128 Whirlpool Holder Orifice
2CW10552125 Whirlpool Orifice Holder
2BW10552126 Whirlpool Orifice Holder
3W10949105 Whirlpool Mounting Bracket
4W10552140 Whirlpool Gas Tubing
5W11677625 Whirlpool Wire Harness
6BW11447374 Whirlpool Surface Igniter
6CW11220383 Whirlpool Surface Igniter
6W11611678 Whirlpool Surface Igniter
6AW11050467 Whirlpool Surface Igniter
7W10885072 Whirlpool Manifold Assembly
8W11223016 Whirlpool Burner Valve
8CW10850893 Whirlpool Burner Valve
8AW11672512 Whirlpool Range Burner Valve
8BW11163975 Whirlpool Burner Valve
9W10224921 Whirlpool Bracket Mounting
10W11676566 Whirlpool Range Burner Broiler
11W10764654 Whirlpool Oven Burner
12W10861656 Whirlpool Regulator Assembly
13WPW10324262 Whirlpool Oven Igniter
14W10306050 Whirlpool Gas Tubing
15W10583216 Whirlpool Fitting Assembly
16WPW10333842 Whirlpool Oven Igniter
17W11690133 Whirlpool Range Orifice Spud
17DW10256129 Whirlpool Orifice Assembly
17AW10756981 Whirlpool Spud Orifice
17CSPUD-ORFCE
17BW10821182 Whirlpool Orifice
18SCREW
19W11684507 Whirlpool Screw
20WP3400016 Whirlpool Screw Assembly
21BAFFLE, BROIL BURNER
22W11190173 Whirlpool Clip
23W10140571 Whirlpool Seal Switch
24W11676349 Whirlpool Screw
