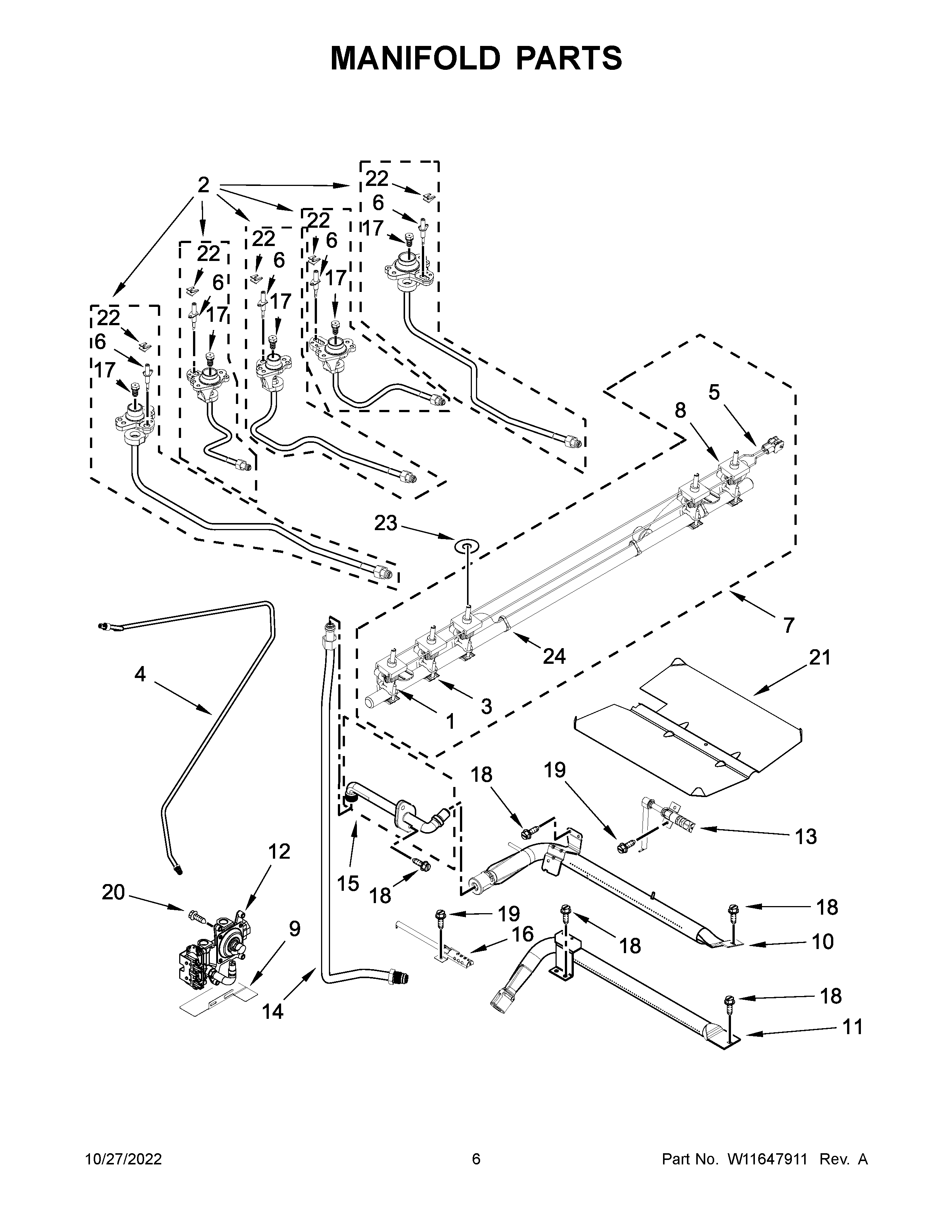

WEG745H0LZ4 04 – MANIFOLD PARTS

WEG745H0LZ4 04 – MANIFOLD PARTS

Written by

in

WEG745H0LZ4 04 – MANIFOLD PARTS

Products

PositionProduct
NIW11087486 Whirlpool Spud Orifice
NIWPW10400494 Whirlpool Orifice Assembly
NISPUD-ORFCE
NICABINET (NOT A SERVICEABLE PART)
NIW11216991 Whirlpool Orifice
1W11577790 Whirlpool Screw Assembly
2DW11186516 Whirlpool Orifice Holder
2W11186510 Whirlpool Holder Orifice
2BW11186523 Whirlpool Orifice Holder
2AW11186507 Whirlpool Orifice Holder
2CW11186519 Whirlpool Orifice Holder
3W10949105 Whirlpool Mounting Bracket
4W10552140 Whirlpool Gas Tubing
5W11512353 Whirlpool Manifold
6CW11661897 Whirlpool Range Surface Igniter
6W11661929 Whirlpool Surface Igniter
6BW11643126 Whirlpool Surface Igniter
6AW11666003 Whirlpool Range Surface Igniter
8AVALVE-BRNR
8VALVE-BRNR
8BW11620677 Whirlpool Burner Valve
9W10224921 Whirlpool Bracket Mounting
10W11676566 Whirlpool Range Burner Broiler
11W10764654 Whirlpool Oven Burner
12W10861656 Whirlpool Regulator Assembly
13WPW10324262 Whirlpool Oven Igniter
14W10306050 Whirlpool Gas Tubing
15W10583216 Whirlpool Fitting Assembly
16WPW10333842 Whirlpool Oven Igniter
17DORIFICE (8K) (CENTER)
17CW10849714 Whirlpool Orifice Spud
17ORIFICE (18K) (LEFT FRONT, RIGHT FRONT AND CENTER)
17BW10849717 Whirlpool Orifice Spud
17AW11677633 Whirlpool Spud Orifice
18SCREW
19W11684507 Whirlpool Screw
20WP3400016 Whirlpool Screw Assembly
21BAFFLE, BROIL BURNER
22W11684564 Whirlpool Clip Assembly
23W11507167 Whirlpool Switch Seal
24WPW10182767 Whirlpool Wire Tie
