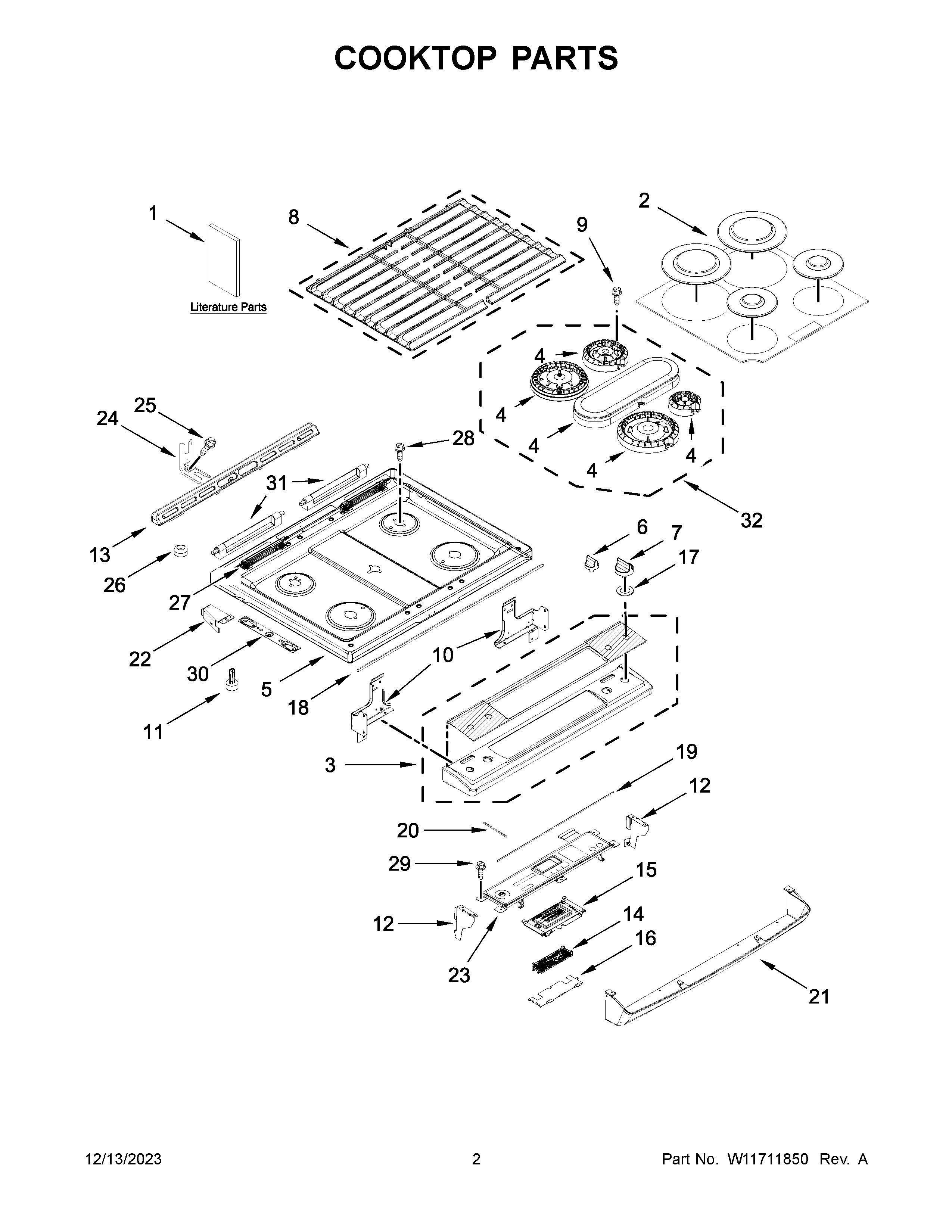

WEG745H0LZ5 02 – COOKTOP PARTS

WEG745H0LZ5 02 – COOKTOP PARTS

Written by

in

WEG745H0LZ5 02 – COOKTOP PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W11198972 Whirlpool Wire Harness
NI	W11176109 Whirlpool Wire Harness
NI	W10580229 Whirlpool Grounding Wire
NI	W11123868 Whirlpool Venturi Assembly
NI	W11458864 Whirlpool Wire Harness
NI	W11025616 Whirlpool Wire Harness
NI	CLAMP, WIRE
NI	3196896 Whirlpool Clip
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
1B	TECH SHEET
1	OWNERS MANUAL
1A	QUICK START GUIDE
2	W11605759 Whirlpool Burner Cap
3	W11564647 Whirlpool Range Control Panel
4	W11435630 Whirlpool Oven Burner Head
4B	W11435659 Whirlpool Burner Head
4A	W11435657 Whirlpool Burner Head
4C	W11435660 Whirlpool Burner Head
5	W11435855 Whirlpool Cooktop
6	W11620681 Whirlpool Knob
7	W11687171 Whirlpool Knob
8	W11435675 Whirlpool Grate Kit
9	W11241230 Whirlpool Screw
10B	BRACKET, SUPPORT (RIGHT)
10A	W10598048 Whirlpool Support Bracket
10	BRACKET,SUPPORT (LEFT)
11	GLIDE, MAIN TOP
12	W10547960 Whirlpool Endcap Panel
12A	W10547961 Whirlpool Endcap Panel
13	W11256338 Whirlpool Vent Trim
14	W11620680-includeCORE Whirlpool W11620680 Washer Electronic Control Board + Core
15	W11122852 Whirlpool Electronic Control Board + Core
16	W10558372 Whirlpool Bracket Mounting
17	W11131701 Whirlpool Bushing
18	GASKET, CONSOLE AND COOKTOP
19	W10802457 Whirlpool Gasket
20	W11744482 Whirlpool Gasket Assembly
21	W11218703 Whirlpool Mounting Bracket
22A	W10162252 Whirlpool Bracket Mounting
22	W10162253 Whirlpool Mounting Bracket
23	W11564650 Whirlpool Range Membrane Switch
24	W11502257 Whirlpool Anchor Tip
25	SCREW, ANTI-TIP KIT
26	W11690600 Whirlpool Bumper
27	HINGE, GRATE (NOT SERVICED)
28	3196172 Whirlpool Oven Screw
29	W11245710 Whirlpool Refrigerator Screw
30	GRATE HINGE SPACER
31	W10826075 Whirlpool Cooktop Hinge
32	W11575584 Whirlpool Burner Head
