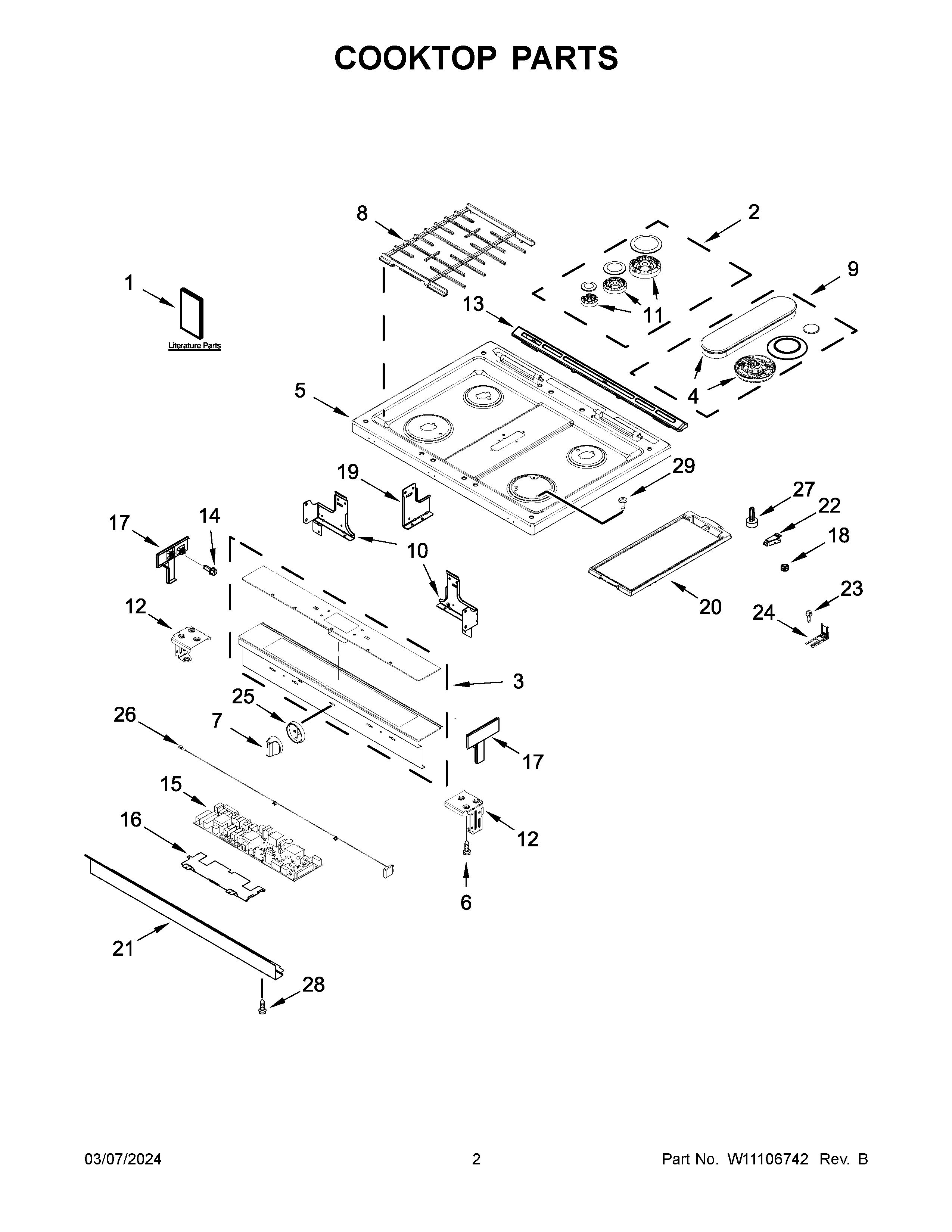

WEG750H0HB0 02 – COOKTOP PARTS

WEG750H0HB0 02 – COOKTOP PARTS

Written by

in

WEG750H0HB0 02 – COOKTOP PARTS

Products

PositionProduct
NIW10887379 Whirlpool Wire Harness
NIW11198972 Whirlpool Wire Harness
NICLAMP, WIRE
NIW10580229 Whirlpool Grounding Wire
NI16515 Whirlpool Clip
NI3400964 Whirlpool Oven Clip
NIFOLLOWING PARTS NOT ILLUSTRATED
1BSHEET, TECH
1CWIRING DIAGRAM
1DGUIDE, INTERNET CONNECTIVITY
1AGUIDE, USE & CARE
1INSTRUCTIONS, INSTALLATION
1ESAFER COOKING TIPS (ENGLISH
2W11121923 Whirlpool Range Burner Head
3W11339759-includeCORE Whirlpool W11339759 Refrigerator Electronic Control Board + Core
3AW11339758-includeCORE Whirlpool W11339758 Electronic Control Board + Core
4AW11245289 Whirlpool Head Burner
5AW11121762 Whirlpool Cooktop
5W11121761 Whirlpool Range Cooktop
6W10491985 Whirlpool Screw
7W11121968 Whirlpool Knob Assembly
7AW11121969 Whirlpool Knob
8W11428496 Whirlpool Grate Kit
10W10867593 Whirlpool Support Bracket
10AW10867592 Whirlpool Support Bracket
11W11084058 Whirlpool Burner Head
11AW11084062 Whirlpool Burner Head
11BW11084059 Whirlpool Burner Head
12AWPL W10828160
12WPL W10828159
13AW10577780 Whirlpool Vent Trim Assembly
13W11256338 Whirlpool Vent Trim
14W11245710 Whirlpool Refrigerator Screw
15W11205353-includeCORE Whirlpool W11205353 Refrigerator Electronic Control Board
16WPL W10908536
17AENDCAP (WHITE (LEFT))
17CENDCAP (WHITE (RIGHT))
17BENDCAP (BLACK (RIGHT))
17ENDCAP (BLACK (LEFT))
18W11104127 Whirlpool Bumper Assembly
19WPL W10867600
20W11123246 Whirlpool Griddle
21ACONSOLE, LOWER PANEL (WHITE)
21W10899344 Whirlpool Mounting Bracket
22W10162253 Whirlpool Mounting Bracket
22AW10162252 Whirlpool Bracket Mounting
23SCREW, ANTI-TIP KIT
24W11502257 Whirlpool Anchor Tip
25BEZEL (BLACK)
25AW10906018 Whirlpool Bezel Switch
26W11113849 Whirlpool Antenna
27GLIDE, MAIN TOP
28SCREW
29W11103318 Whirlpool Screw
