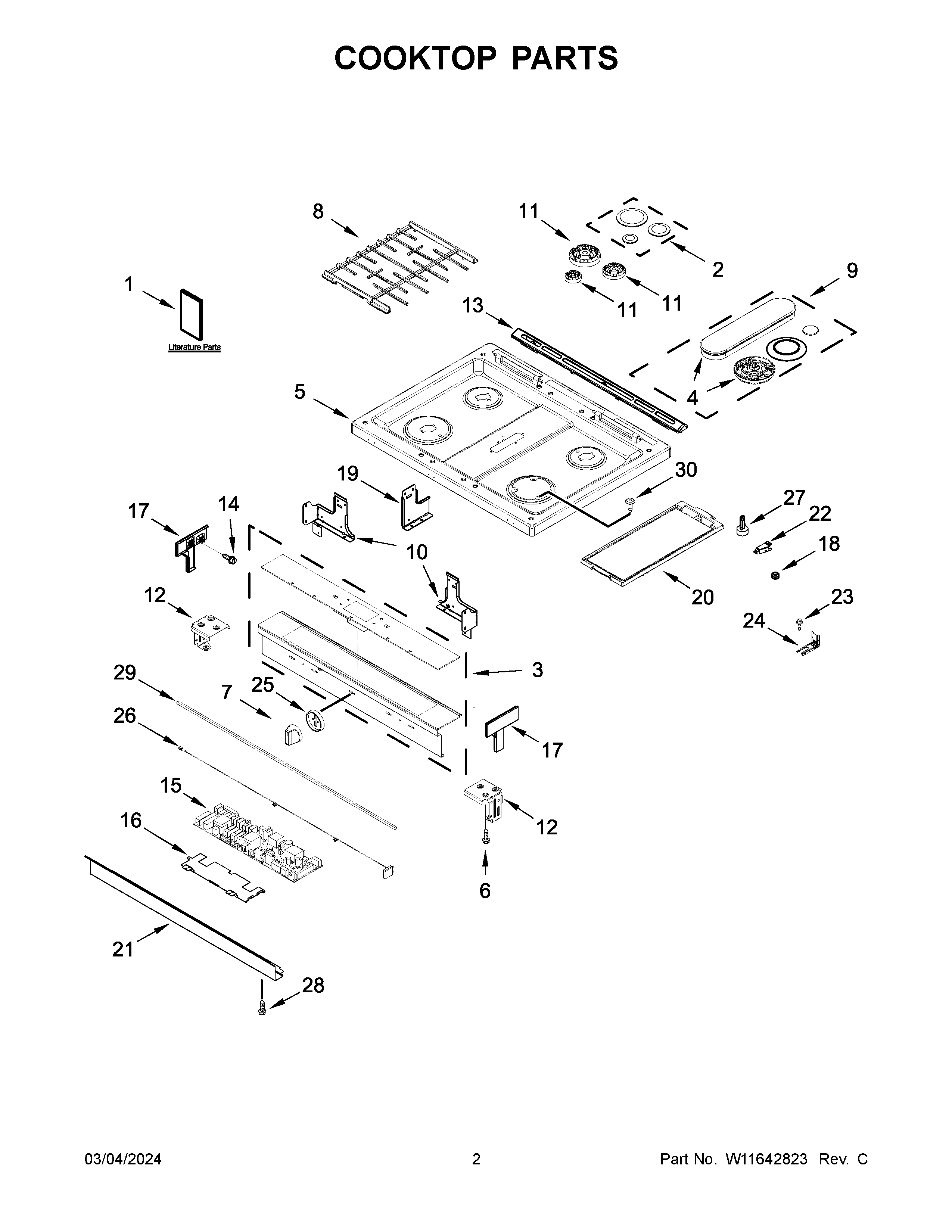

WEG750H0HB5 02 – COOKTOP PARTS

Products

PositionProduct
NICLAMP, WIRE
NIW11198972 Whirlpool Wire Harness
NI3196896 Whirlpool Clip
NIW10580229 Whirlpool Grounding Wire
NI16515 Whirlpool Clip
NI3400964 Whirlpool Oven Clip
NIFOLLOWING PARTS NOT ILLUSTRATED
NIW11456871 Whirlpool Wire Harness
1AOWNERS MANUAL
1QUICK START GUIDE
1BTECH, SHEET
2W11605764 Whirlpool Burner Cap
3W11339759-includeCORE Whirlpool W11339759 Refrigerator Electronic Control Board + Core
3AW11339758-includeCORE Whirlpool W11339758 Electronic Control Board + Core
4W11245289 Whirlpool Head Burner
4AW11548764 Whirlpool Burner Head
5W11548508 Whirlpool Cooktop
5ACOOKTOP (WHITE)
6W10491985 Whirlpool Screw
7W11121968 Whirlpool Knob Assembly
7AW11121969 Whirlpool Knob
8W11548766 Whirlpool Range Grate Kit
9W11550541 Whirlpool Burner Head
10W10867593 Whirlpool Support Bracket
10AW10867592 Whirlpool Support Bracket
11BW11531098 Whirlpool Burner Head
11W11531096 Whirlpool Burner Head
11AW11531097 Whirlpool Burner – Head
12AWPL W10828160
12WPL W10828159
13AW10577780 Whirlpool Vent Trim Assembly
13W11256338 Whirlpool Vent Trim
14W11245710 Whirlpool Refrigerator Screw
15W11620582 Whirlpool Refrigerator Electronic Control Board + Core
16WPL W10908536
17BENDCAP (BLACK (RIGHT))
17AENDCAP (WHITE (LEFT))
17ENDCAP (BLACK (LEFT))
17CENDCAP (WHITE (RIGHT))
18W11690600 Whirlpool Bumper
19WPL W10867600
20W11123246 Whirlpool Griddle
21W10899344 Whirlpool Mounting Bracket
22AW10162252 Whirlpool Bracket Mounting
22W10162253 Whirlpool Mounting Bracket
23SCREW, ANTI-TIP KIT
24W11502257 Whirlpool Anchor Tip
25AW10906018 Whirlpool Bezel Switch
25BEZEL (BLACK)
26ANTENNA
27GLIDE, MAIN TOP
28SCREW
29W10802441 Whirlpool Gasket
30W11103318 Whirlpool Screw
