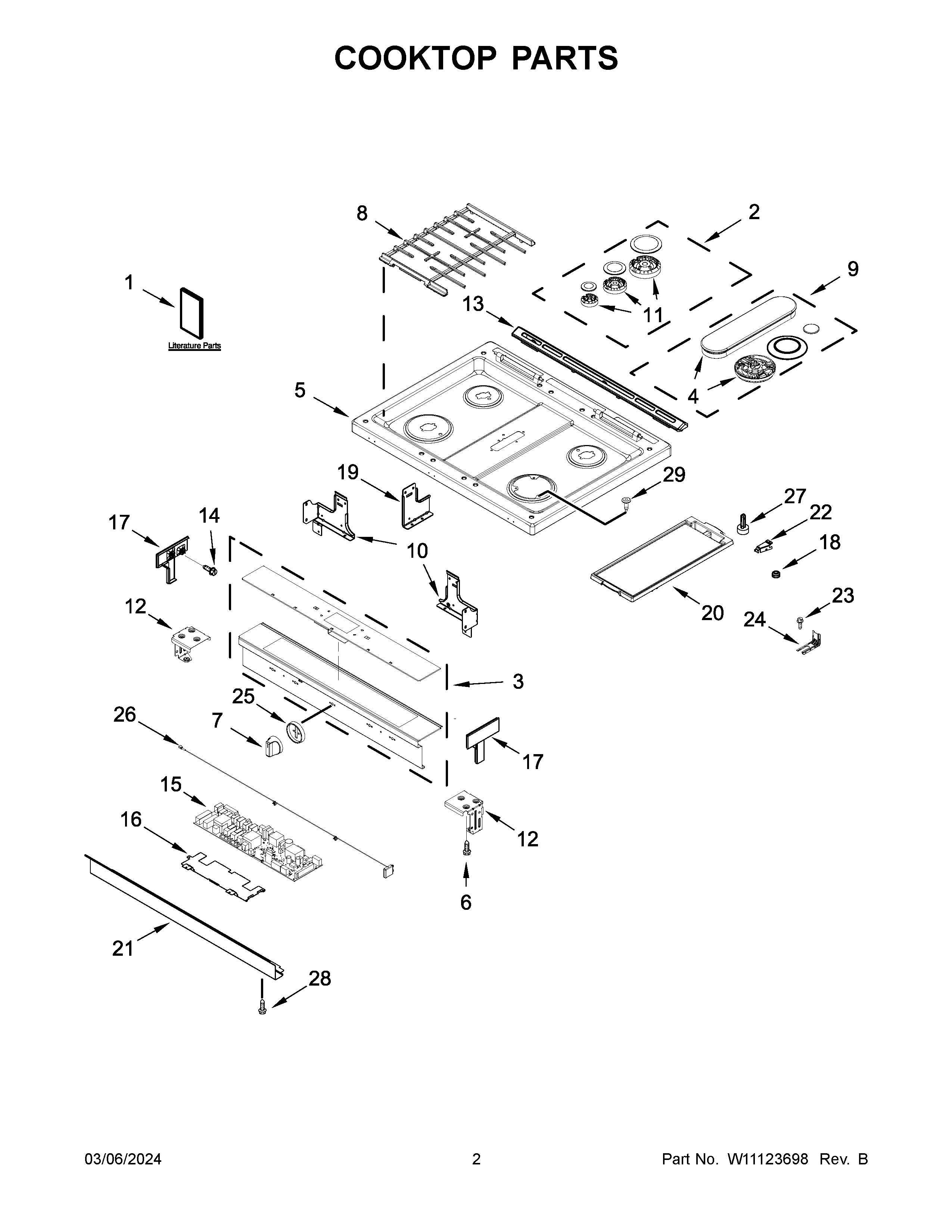

WEG750H0HV0 02 – COOKTOP PARTS

Products

Position	Product
NI	W10580229 Whirlpool Grounding Wire
NI	W10887379 Whirlpool Wire Harness
NI	W11198972 Whirlpool Wire Harness
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	3400964 Whirlpool Oven Clip
NI	16515 Whirlpool Clip
NI	CLAMP, WIRE
1C	WIRING DIAGRAM
1D	GUIDE, INTERNET CONNECTIVITY
1A	GUIDE, USE & CARE
1	INSTRUCTIONS, INSTALLATION
1E	SAFER COOKING TIPS (ENGLISH
1B	SHEET, TECH
2	W11121923 Whirlpool Range Burner Head
3	W11339755 Whirlpool Electronic Control Board + Core
3A	W11339754-includeCORE Whirlpool W11339754 Refrigerator Electronic Control Board + Core
4A	W11245289 Whirlpool Head Burner
5	W11121761 Whirlpool Range Cooktop
6	W10491985 Whirlpool Screw
7A	W11123994 Whirlpool Range Knob
7	W11123250 Whirlpool Range Knob
8	W11428496 Whirlpool Grate Kit
10A	W10867592 Whirlpool Support Bracket
10	W10867593 Whirlpool Support Bracket
11B	W11084059 Whirlpool Burner Head
11A	W11084062 Whirlpool Burner Head
11	W11084058 Whirlpool Burner Head
12A	WPL W10828160
12	WPL W10828159
13	W11256338 Whirlpool Vent Trim
14	W11245710 Whirlpool Refrigerator Screw
15	W11205353-includeCORE Whirlpool W11205353 Refrigerator Electronic Control Board
16	WPL W10908536
17C	ENDCAP (BLACK STAINLESS (RIGHT))
17B	ENDCAP (STAINLESS (RIGHT))
17A	W10913756 Whirlpool Endcap Panel
17	W10854356 Whirlpool Endcap Panel
18	W11104127 Whirlpool Bumper Assembly
19	WPL W10867600
20	W11123246 Whirlpool Griddle
21A	W10899344 Whirlpool Mounting Bracket
21	W11123253 Whirlpool Mounting Bracket
22	W10162253 Whirlpool Mounting Bracket
22A	W10162252 Whirlpool Bracket Mounting
23	SCREW, ANTI-TIP KIT
24	W11502257 Whirlpool Anchor Tip
25A	W11311633 Whirlpool Knob Bezel
25	W10906020 Whirlpool Switch Bezel
26	W11113849 Whirlpool Antenna
27	GLIDE, MAIN TOP
28	SCREW
29	W11103318 Whirlpool Screw
