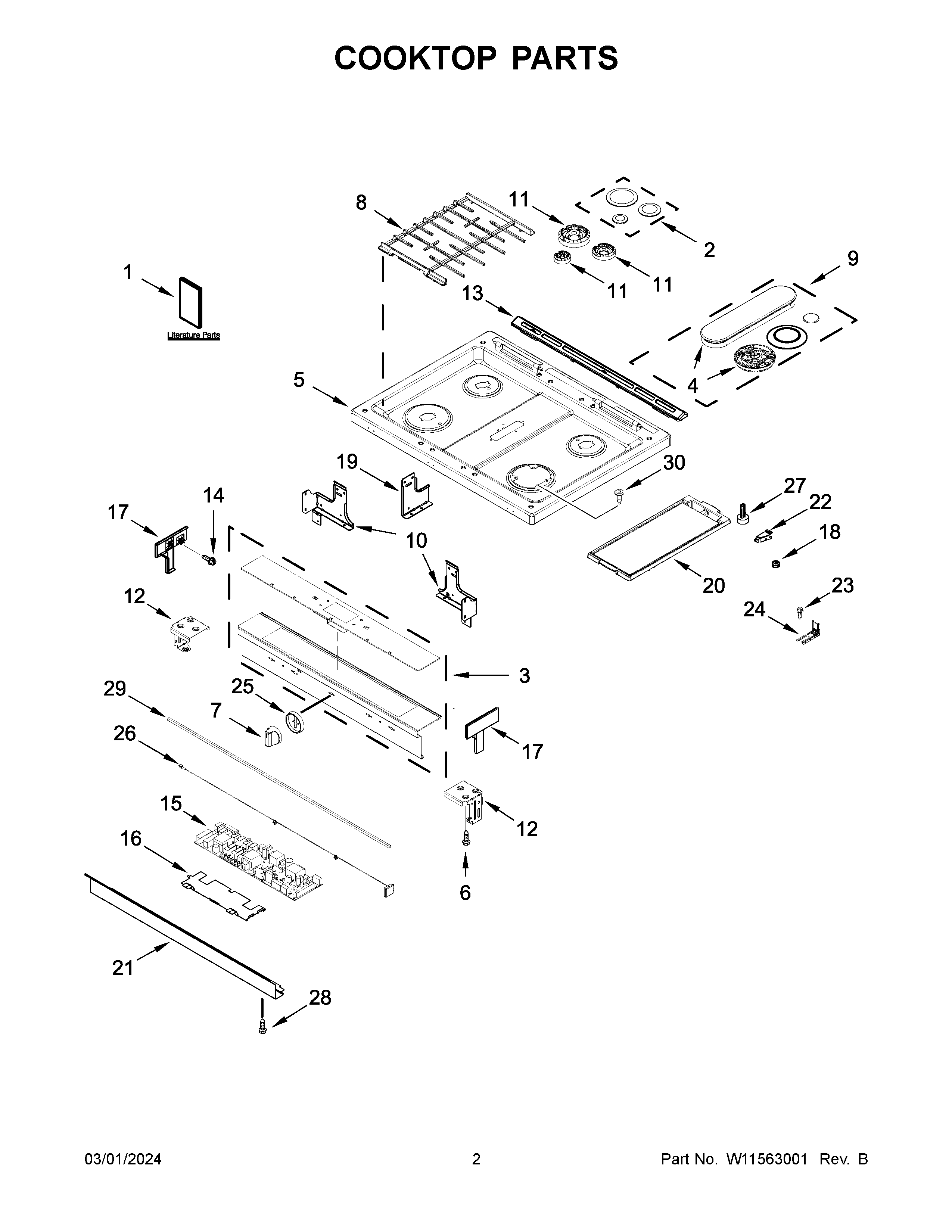

WEG750H0HV2 02 – COOKTOP PARTS

WEG750H0HV2 02 – COOKTOP PARTS

Written by

in

WEG750H0HV2 02 – COOKTOP PARTS

Products

PositionProduct
NIW11198972 Whirlpool Wire Harness
NIW10580229 Whirlpool Grounding Wire
NIW11451579 Whirlpool Wire Harness
NICLAMP, WIRE
NI16515 Whirlpool Clip
NI3400964 Whirlpool Oven Clip
NIFOLLOWING PARTS NOT ILLUSTRATED
1AQUICK START GUIDE
1BTECH SHEET
1OWNERS MANUAL
2W11605764 Whirlpool Burner Cap
3W11339755 Whirlpool Electronic Control Board + Core
3AW11339754-includeCORE Whirlpool W11339754 Refrigerator Electronic Control Board + Core
4AW11548764 Whirlpool Burner Head
4W11245289 Whirlpool Head Burner
5W11548508 Whirlpool Cooktop
6W10491985 Whirlpool Screw
7W11123250 Whirlpool Range Knob
7AW11123994 Whirlpool Range Knob
8W11548766 Whirlpool Range Grate Kit
9W11550541 Whirlpool Burner Head
10W10867593 Whirlpool Support Bracket
10AW10867592 Whirlpool Support Bracket
11W11531096 Whirlpool Burner Head
11AW11531097 Whirlpool Burner – Head
11BW11531098 Whirlpool Burner Head
12WPL W10828159
12AWPL W10828160
13W11256338 Whirlpool Vent Trim
14W11245710 Whirlpool Refrigerator Screw
15W11205353-includeCORE Whirlpool W11205353 Refrigerator Electronic Control Board
16WPL W10908536
17AW10913756 Whirlpool Endcap Panel
17BENDCAP (STAINLESS (RIGHT))
17W10854356 Whirlpool Endcap Panel
17CENDCAP (BLACK STAINLESS (RIGHT))
18W11690600 Whirlpool Bumper
19WPL W10867600
20W11123246 Whirlpool Griddle
21W10899344 Whirlpool Mounting Bracket
22AW10162252 Whirlpool Bracket Mounting
22W10162253 Whirlpool Mounting Bracket
23SCREW, ANTI-TIP KIT
24W11502257 Whirlpool Anchor Tip
25W10906020 Whirlpool Switch Bezel
25AW11311633 Whirlpool Knob Bezel
26WPL W11174221
27GLIDE, MAIN TOP
28SCREW
29W10802441 Whirlpool Gasket
30W11103318 Whirlpool Screw
