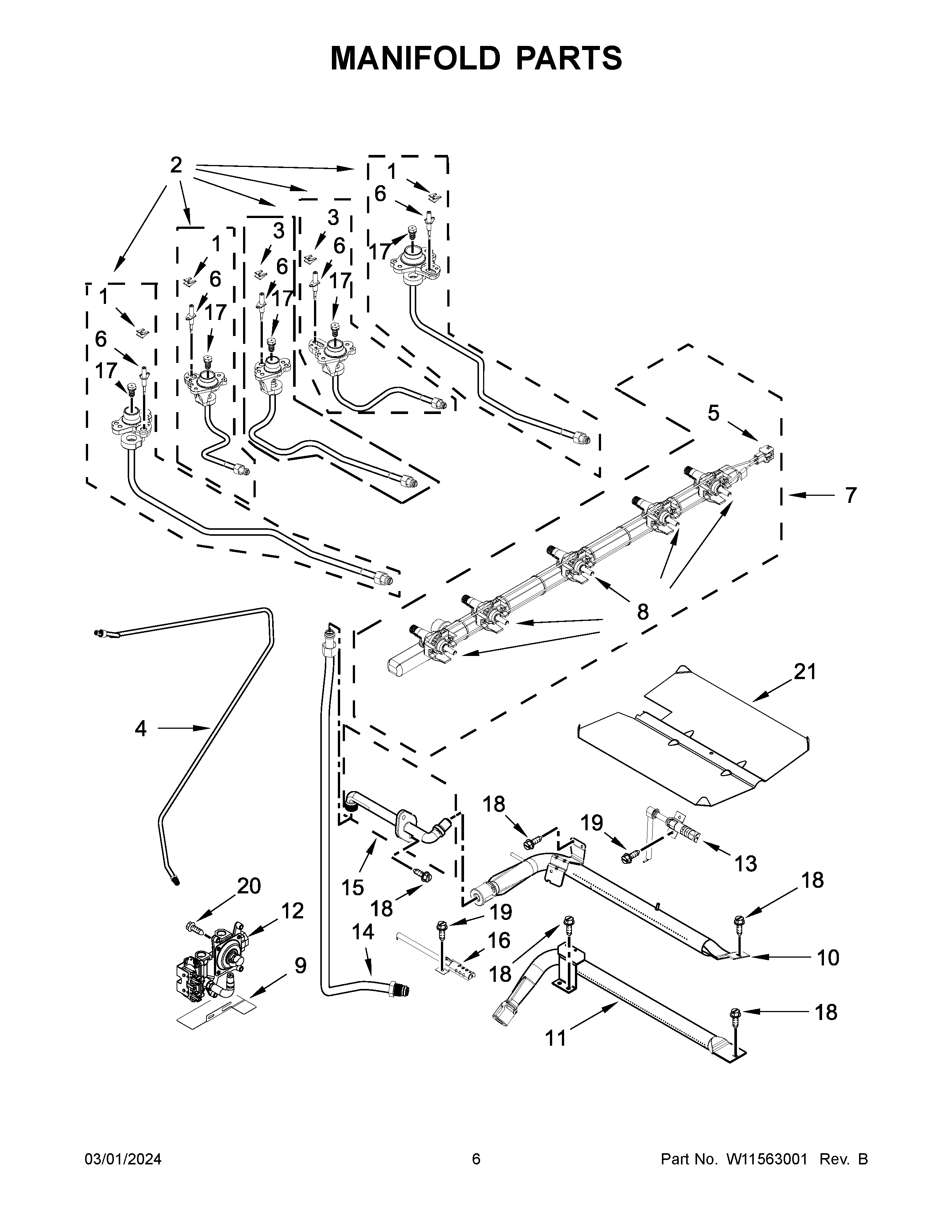

WEG750H0HV2 04 – MANIFOLD PARTS

Products

Position	Product
1	W11684564 Whirlpool Clip Assembly
2	W11122530 Whirlpool Range Orifice Holder
2C	W11122547 Whirlpool Range Orifice Holder
2B	W11672515 Whirlpool Orifice Holder
2A	W11122534 Whirlpool Range Orifice Holder
2D	ASSEMBLY, ORIFICE (CENTER)
3	CLIP, ELECTRODE
4	TUBE, SUPPLY
5	W10885903 Whirlpool Range Wire Harness
6B	W11084034 Whirlpool Surface Igniter
6	W11661929 Whirlpool Surface Igniter
6C	W11661897 Whirlpool Range Surface Igniter
6A	W11643126 Whirlpool Surface Igniter
7	W11504626 Whirlpool Manifold Assembly
8B	W11550546 Whirlpool Burner Valve
8A	W11550545 Whirlpool Burner Valve
8	W11550543 Whirlpool Burner Valve
9	W10224921 Whirlpool Bracket Mounting
10	W11676566 Whirlpool Range Burner Broiler
11	W10764654 Whirlpool Oven Burner
12	W10861656 Whirlpool Regulator Assembly
13	WPW10324262 Whirlpool Oven Igniter
14	W10306050 Whirlpool Gas Tubing
15	W10583216 Whirlpool Fitting Assembly
16	WPW10333842 Whirlpool Oven Igniter
17B	W11209817 Whirlpool Orifice Spud
17D	W10907868 Whirlpool Spud Orifice
17	ORIFICE (18K) (LEFT FRONT, RIGHT FRONT AND CENTER)
17C	W10849714 Whirlpool Orifice Spud
17A	W11677633 Whirlpool Spud Orifice
18	SCREW
19	W11684507 Whirlpool Screw
20	WP3400016 Whirlpool Screw Assembly
21	BAFFLE, BROIL BURNER
