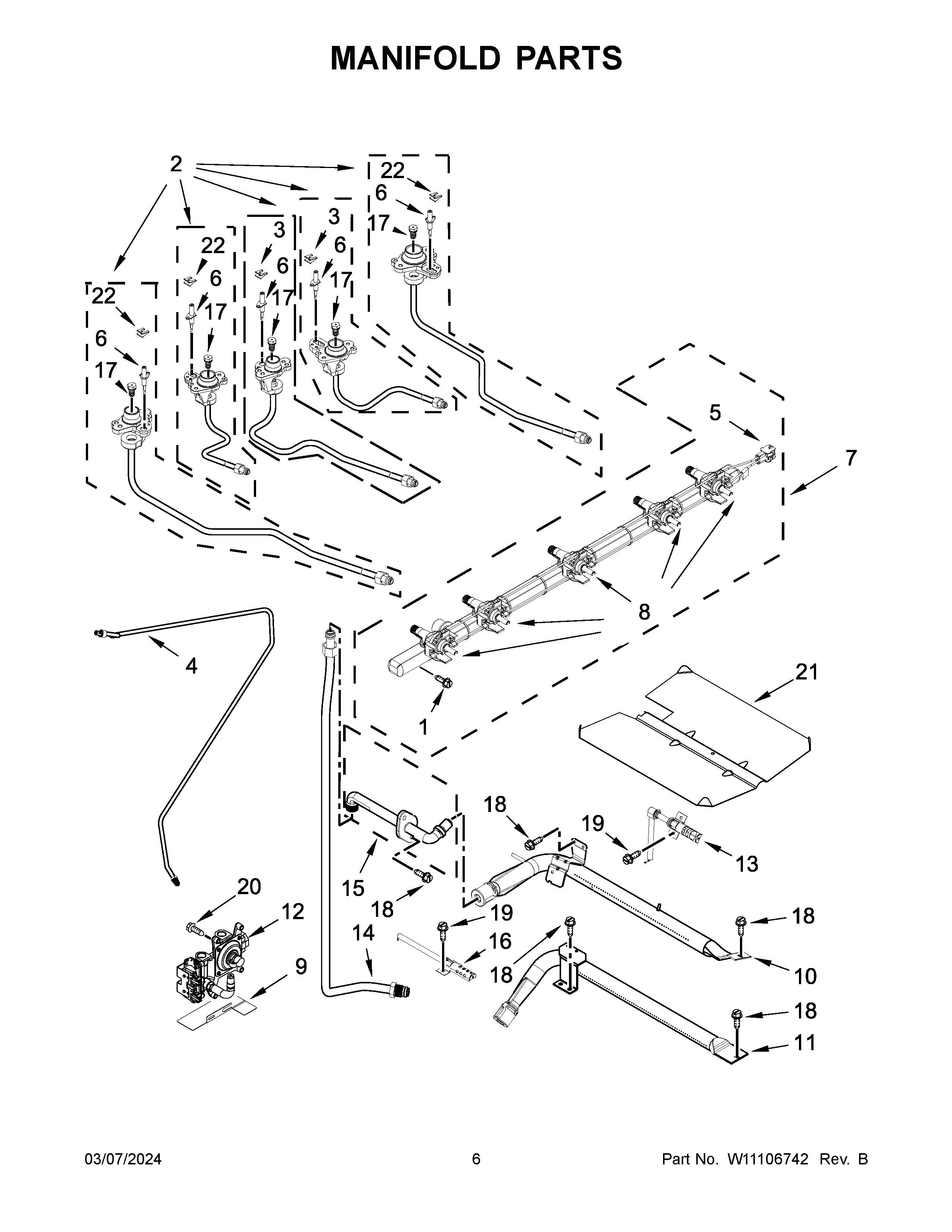

WEG750H0HW0 04 – MANIFOLD PARTSadmin2025-04-26T13:10:43+00:00WEG750H0HW0 04 – MANIFOLD PARTS ProductsPositionProduct1W11666001 Whirlpool Screw2DW11122548 Whirlpool Range Glass Backsplash2CW11122547 Whirlpool Range Orifice Holder2BW11672515 Whirlpool Orifice Holder2AW11122534 Whirlpool Range Orifice Holder2W11122530 Whirlpool Range Orifice Holder3CLIP, ELECTRODE4TUBE, SUPPLY5W10885903 Whirlpool Range Wire Harness6BW11084034 Whirlpool Surface Igniter6W11661929 Whirlpool Surface Igniter6AW11643126 Whirlpool Surface Igniter6CW11082199 Whirlpool Range Surface Igniter7W11259408 Whirlpool Manifold8BW11123996 Whirlpool Burner Valve8AW11123995 Whirlpool Burner Valve8W11123245 Whirlpool Burner Valve9W10224921 Whirlpool Bracket Mounting10W11676566 Whirlpool Range Burner Broiler11W10764654 Whirlpool Oven Burner12W10861656 Whirlpool Regulator Assembly13WPW10324262 Whirlpool Oven Igniter14W10306050 Whirlpool Gas Tubing15W10583216 Whirlpool Fitting Assembly16WPW10333842 Whirlpool Oven Igniter17DW10674732 Whirlpool Orifice Spud17AW11677633 Whirlpool Spud Orifice17CW10849714 Whirlpool Orifice Spud17W10907865 Whirlpool Orifice Spud17BW11209817 Whirlpool Orifice Spud18SCREW19W11684507 Whirlpool Screw20WP3400016 Whirlpool Screw Assembly21BAFFLE, BROIL BURNER22W11684564 Whirlpool Clip Assembly
