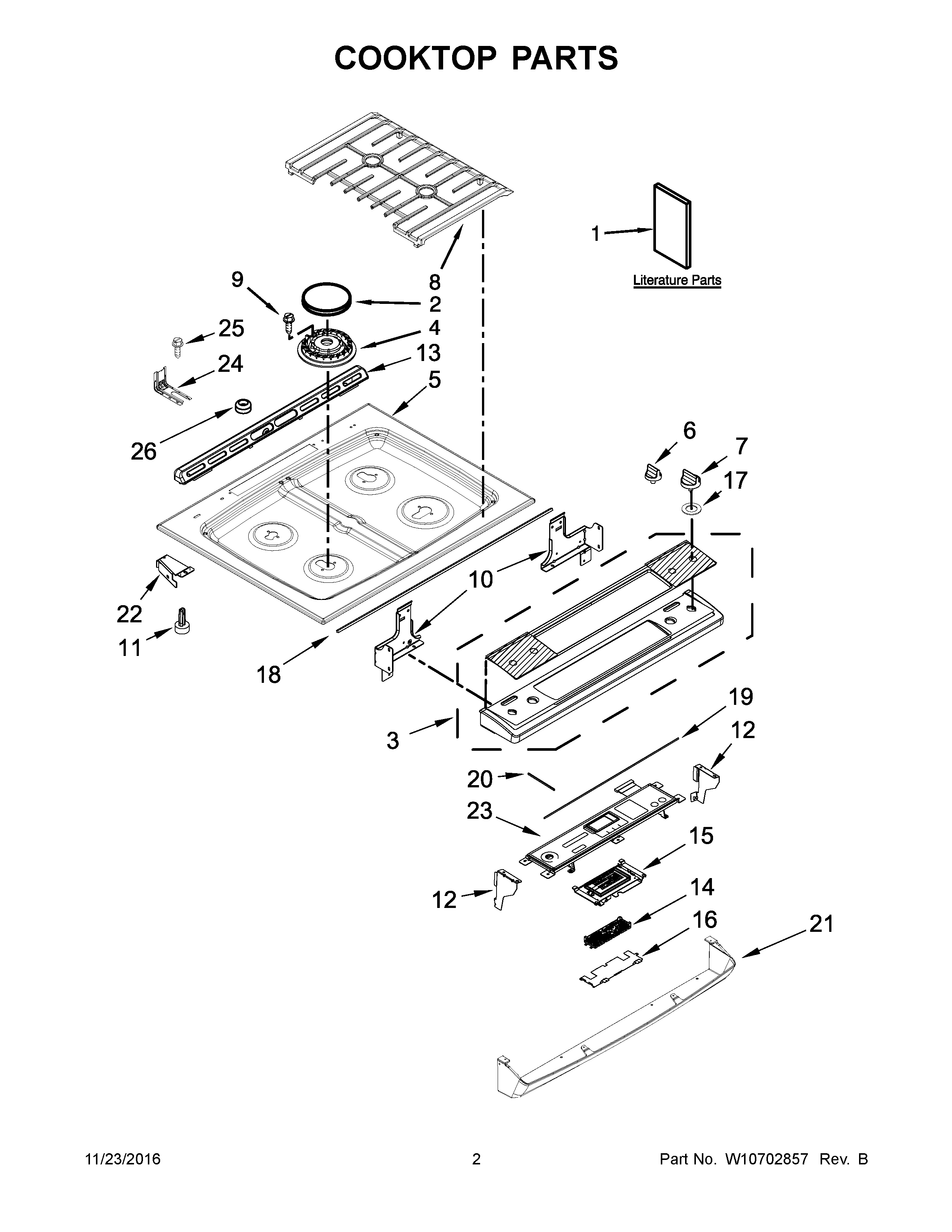

WEG760H0DE0 02 – COOKTOP PARTS

WEG760H0DE0 02 – COOKTOP PARTS

Written by

in

WEG760H0DE0 02 – COOKTOP PARTS

Products

PositionProduct
NI16515 Whirlpool Clip
NIW11025616 Whirlpool Wire Harness
NIW10580230 Whirlpool Wire Harness
NIW10580229 Whirlpool Grounding Wire
NI3400964 Whirlpool Oven Clip
NIW11176109 Whirlpool Wire Harness
NIW11198972 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
1FGUIDE, QUICK START
1CDIAGRAM, WIRING
1INSTRUCTIONS, INSTALLATION
1GQUICK START GUIDE (FRENCH)
1BSHEET, TECH
1DSAFER COOKING TIPS (ENGLISH
1AGUIDE, USE & CARE
1ESafer Cooking Tips (French)
2AWPW10479988 Whirlpool Burner Cap
2KIT, BURNER CAP (WETSTONE)
3W10728505 Whirlpool Control Panel
3BW10728508 Whirlpool Control Panel
3AW10728507 Whirlpool Control Panel
4WPW10256028 Whirlpool Stove Surface Burner Base
4BW10836467 Whirlpool Burner Head
4AWPW10256025 Whirlpool Burner Head
5AW10712112 Whirlpool Cooktop Assembly
5COOKTOP (WHITE)
6W11129406 Whirlpool Knob
7W10818230 Whirlpool Range Stainless Steel Knob
8KIT, GRATE (WETSTONE)
8AW11175813 Whirlpool Grate Kit
9WP3368921 Whirlpool Screw
10W10289170 Whirlpool Support Bracket
10AW10289169 Whirlpool Bracket Support
10BW10598048 Whirlpool Support Bracket
11GLIDE, MAIN TOP
12W10547960 Whirlpool Endcap Panel
12AW10547961 Whirlpool Endcap Panel
13W10577780 Whirlpool Vent Trim Assembly
13AW11256338 Whirlpool Vent Trim
14W10885069 Whirlpool Electronic Control Board
15WPW10603098 Whirlpool Stove Electronic Control Board + Core
16W10558372 Whirlpool Bracket Mounting
17W11131701 Whirlpool Bushing
18W10802441 Whirlpool Gasket
19W10802457 Whirlpool Gasket
20W11744482 Whirlpool Gasket Assembly
21AW11218703 Whirlpool Mounting Bracket
21WPL W10570528
21BWPL W10581493
22AW10162252 Whirlpool Bracket Mounting
22W10162253 Whirlpool Mounting Bracket
23AW10728523 Whirlpool Membrane Switch
23W10728522 Whirlpool Membrane Switch
24W11502257 Whirlpool Anchor Tip
25SCREW, ANTI-TIP KIT
26W11104127 Whirlpool Bumper Assembly
