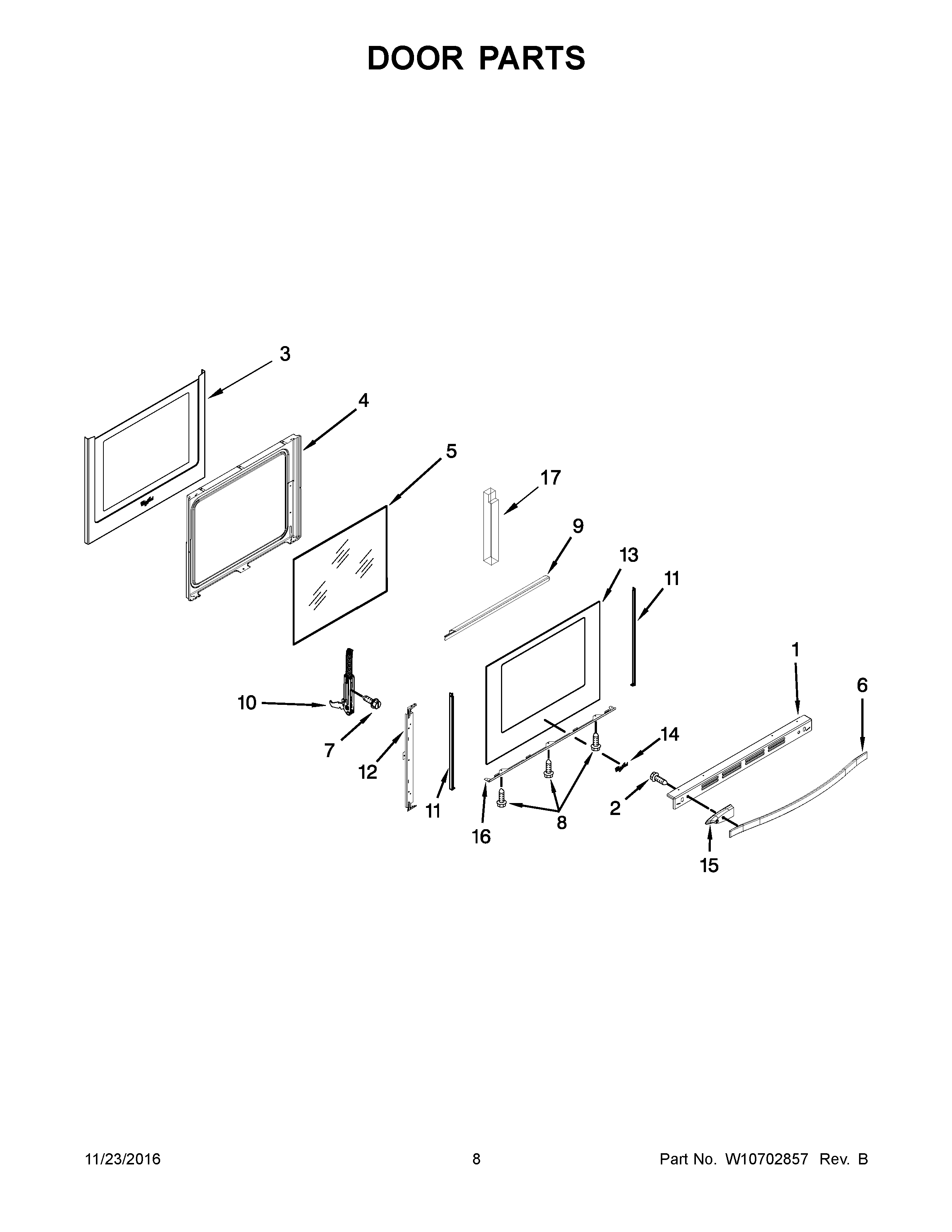

WEG760H0DE0 05 – DOOR PARTS

Products

Position	Product
1B	W10335333 Whirlpool Vent Trim
1	WPW10335331 Whirlpool Trim Vent
1A	W10294855 Whirlpool Vent Trim
2	WP3400882 Whirlpool Screw
3	WPW10704053 Whirlpool Door Glass
4	WPW10297318 Whirlpool Door Liner
5	WPW10300487 Whirlpool Door Glass
6	WPW10618239 Whirlpool Door Handle
7	WP3196175 Whirlpool Screw
8	WPW10031790 Whirlpool Screw
9	W10294853 Whirlpool Mounting Bracket
10	WPW10440013 Whirlpool Door Hinge
11	W10334003 Whirlpool Door Trim
11A	W10334004 Whirlpool Door Trim
12	W11116956 Whirlpool Support Bracket
13A	WPW10289142 Whirlpool Glass Door
13	WPW10289141 Whirlpool Door Glass
14A	W11178521 Whirlpool Dishwasher Nameplate
15B	WPW10254688 Whirlpool Spacer
15	WPW10429492 Whirlpool Spacer
15A	WPW10410341 Whirlpool Spacer
16A	W10334031 Whirlpool Glass Bracket
16	WPW10333990 Whirlpool Glass Bracket
17	W11688565 Whirlpool Insulation
