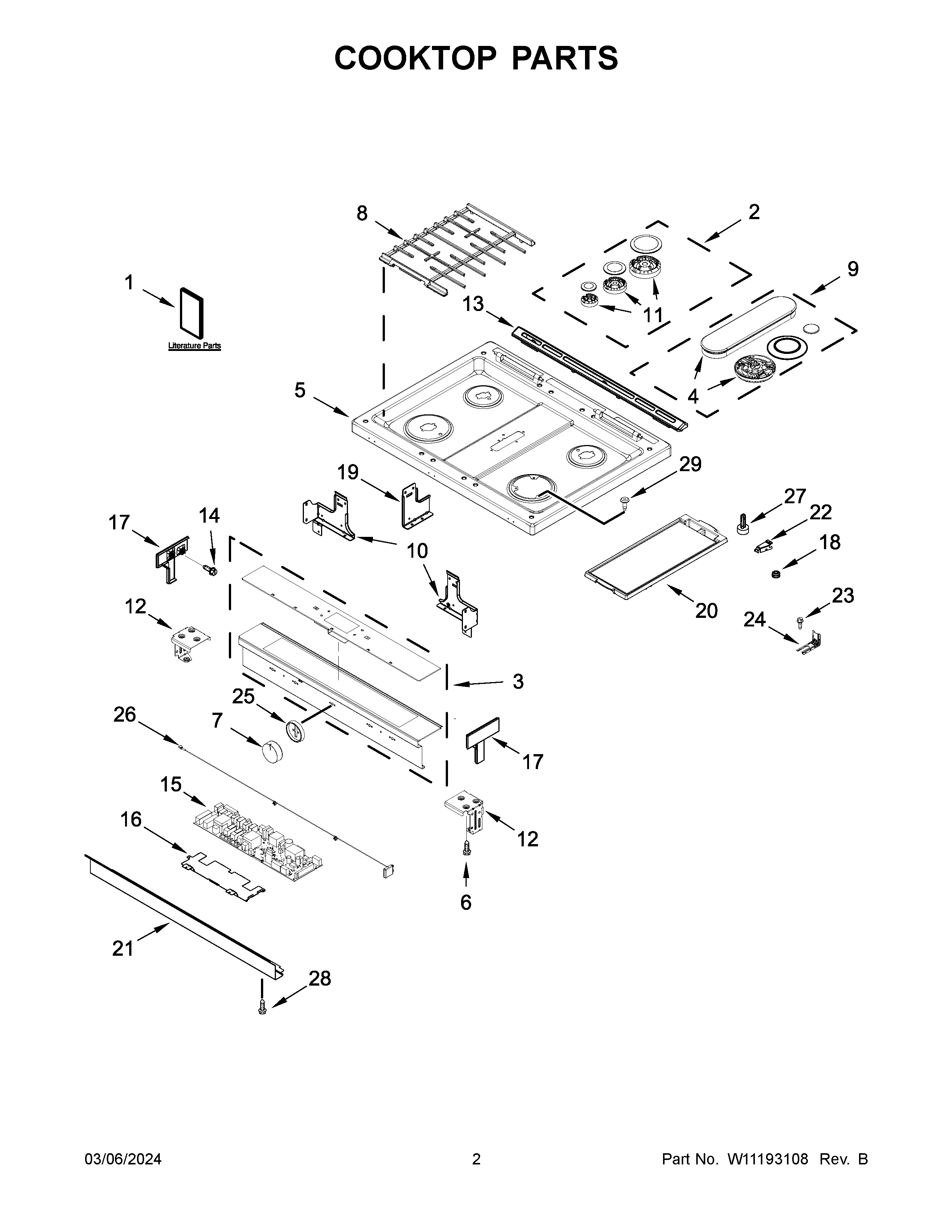

WEGA25H0HN0 02 – COOKTOP PARTS

WEGA25H0HN0 02 – COOKTOP PARTS

Written by

in

WEGA25H0HN0 02 – COOKTOP PARTS

Products

PositionProduct
NIW11103318 Whirlpool Screw
NIW10887379 Whirlpool Wire Harness
NIW11198972 Whirlpool Wire Harness
NIW10580229 Whirlpool Grounding Wire
NICLAMP, WIRE
NI16515 Whirlpool Clip
NI3400964 Whirlpool Oven Clip
NIFOLLOWING PARTS NOT ILLUSTRATED
1BSHEET, TECH
1INSTRUCTIONS, INSTALLATION
1DGUIDE, INTERNET CONNECTIVITY
1AGUIDE, USE & CARE
1CWIRING DIAGRAM
1ESAFER COOKING TIPS (ENGLISH
2W11121923 Whirlpool Range Burner Head
3W11339753-includeCORE Whirlpool W11339753 Washer Electronic Control Board + Core
3AW11339757 Whirlpool Electronic Control Board + Core
5W11245289 Whirlpool Head Burner
5AW11121761 Whirlpool Range Cooktop
6W10491985 Whirlpool Screw
7W11417014 Whirlpool Knob
8W11428496 Whirlpool Grate Kit
10AW10867592 Whirlpool Support Bracket
10W10867593 Whirlpool Support Bracket
11BW11084059 Whirlpool Burner Head
11AW11084062 Whirlpool Burner Head
11W11084058 Whirlpool Burner Head
12WPL W10828159
12AWPL W10828160
13W11256338 Whirlpool Vent Trim
14W11245710 Whirlpool Refrigerator Screw
15W11205353-includeCORE Whirlpool W11205353 Refrigerator Electronic Control Board
16WPL W10908536
17CENDCAP (SUNSET BRONZE (RIGHT))
17AENDCAP (SUNSET BRONZE (LEFT))
17W10854356 Whirlpool Endcap Panel
17BENDCAP (STAINLESS (RIGHT))
18W11104127 Whirlpool Bumper Assembly
19WPL W10867600
20W11123246 Whirlpool Griddle
21W11123253 Whirlpool Mounting Bracket
21AW10899344 Whirlpool Mounting Bracket
22W10162253 Whirlpool Mounting Bracket
23W10162252 Whirlpool Bracket Mounting
24SCREW, ANTI-TIP KIT
25W11502257 Whirlpool Anchor Tip
26BEZEL (STAINLESS)
27W11113849 Whirlpool Antenna
28GLIDE, MAIN TOP
29SCREW
