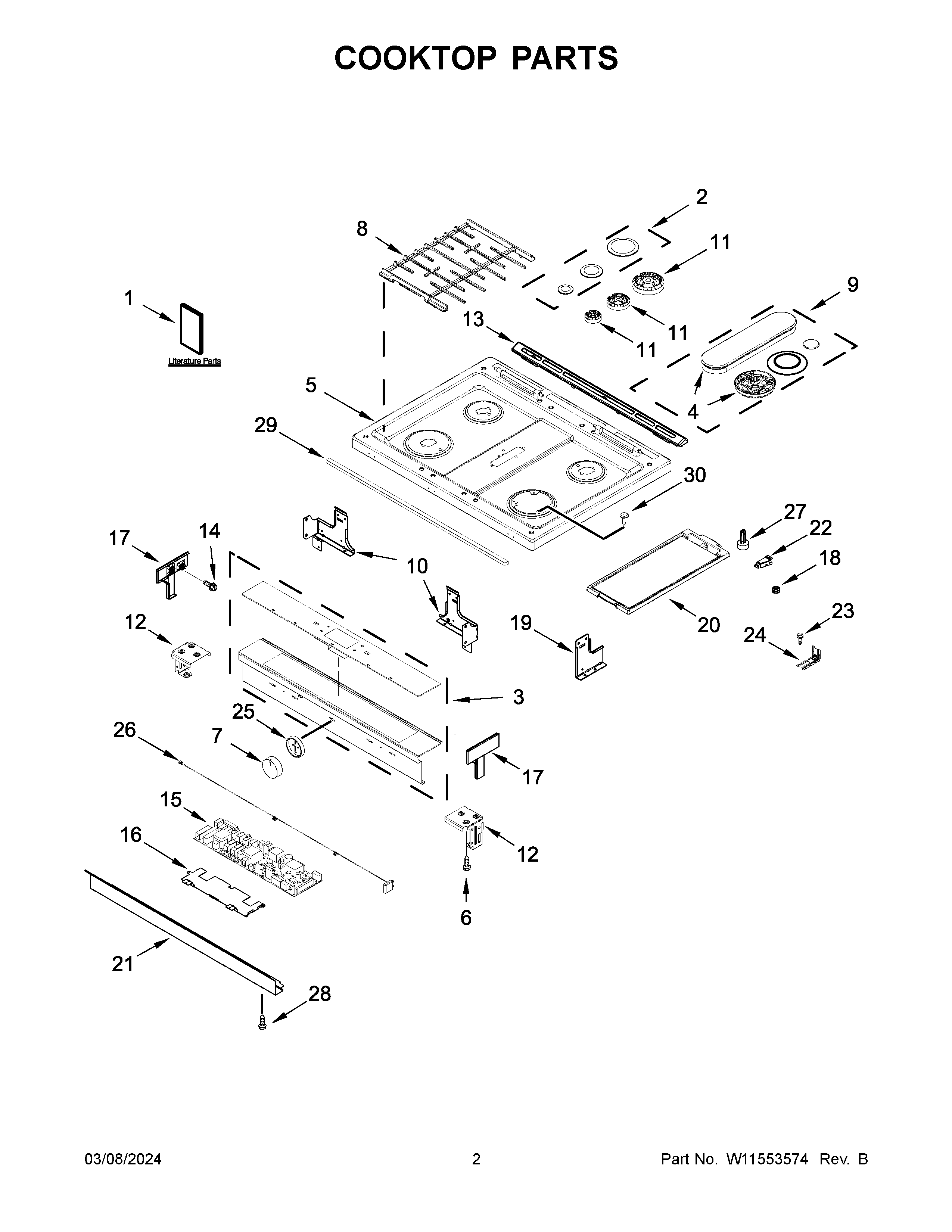

WEGA25H0HZ1 02 – COOKTOP PARTS

Products

Position	Product
NI	CLAMP, WIRE
NI	W10580229 Whirlpool Grounding Wire
NI	W11198972 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W10887379 Whirlpool Wire Harness
1	OWNERS MANUAL
1A	QUICK START GUIDE
2	W11605764 Whirlpool Burner Cap
3	W11339753-includeCORE Whirlpool W11339753 Washer Electronic Control Board + Core
4A	W11548764 Whirlpool Burner Head
4	W11245289 Whirlpool Head Burner
5	W11548508 Whirlpool Cooktop
6	W10491985 Whirlpool Screw
7	W11417014 Whirlpool Knob
8	W11548766 Whirlpool Range Grate Kit
9	W11550541 Whirlpool Burner Head
10A	W10867592 Whirlpool Support Bracket
10	W10867593 Whirlpool Support Bracket
11	W11531096 Whirlpool Burner Head
11B	W11531098 Whirlpool Burner Head
11A	W11531097 Whirlpool Burner – Head
12A	WPL W10828160
12	WPL W10828159
13	W11256338 Whirlpool Vent Trim
14	W11245710 Whirlpool Refrigerator Screw
15	W11205353-includeCORE Whirlpool W11205353 Refrigerator Electronic Control Board
16	WPL W10908536
17	W10854356 Whirlpool Endcap Panel
17A	ENDCAP (STAINLESS (RIGHT))
18	W11690600 Whirlpool Bumper
19	WPL W10867600
20	W11123246 Whirlpool Griddle
21	W10899344 Whirlpool Mounting Bracket
22	W10162253 Whirlpool Mounting Bracket
22A	W10162252 Whirlpool Bracket Mounting
23	SCREW, ANTI-TIP KIT
24	W11502257 Whirlpool Anchor Tip
25	BEZEL (STAINLESS)
26	WPL W11174221
27	GLIDE, MAIN TOP
28	SCREW
29	W10802441 Whirlpool Gasket
30	W11103318 Whirlpool Screw
