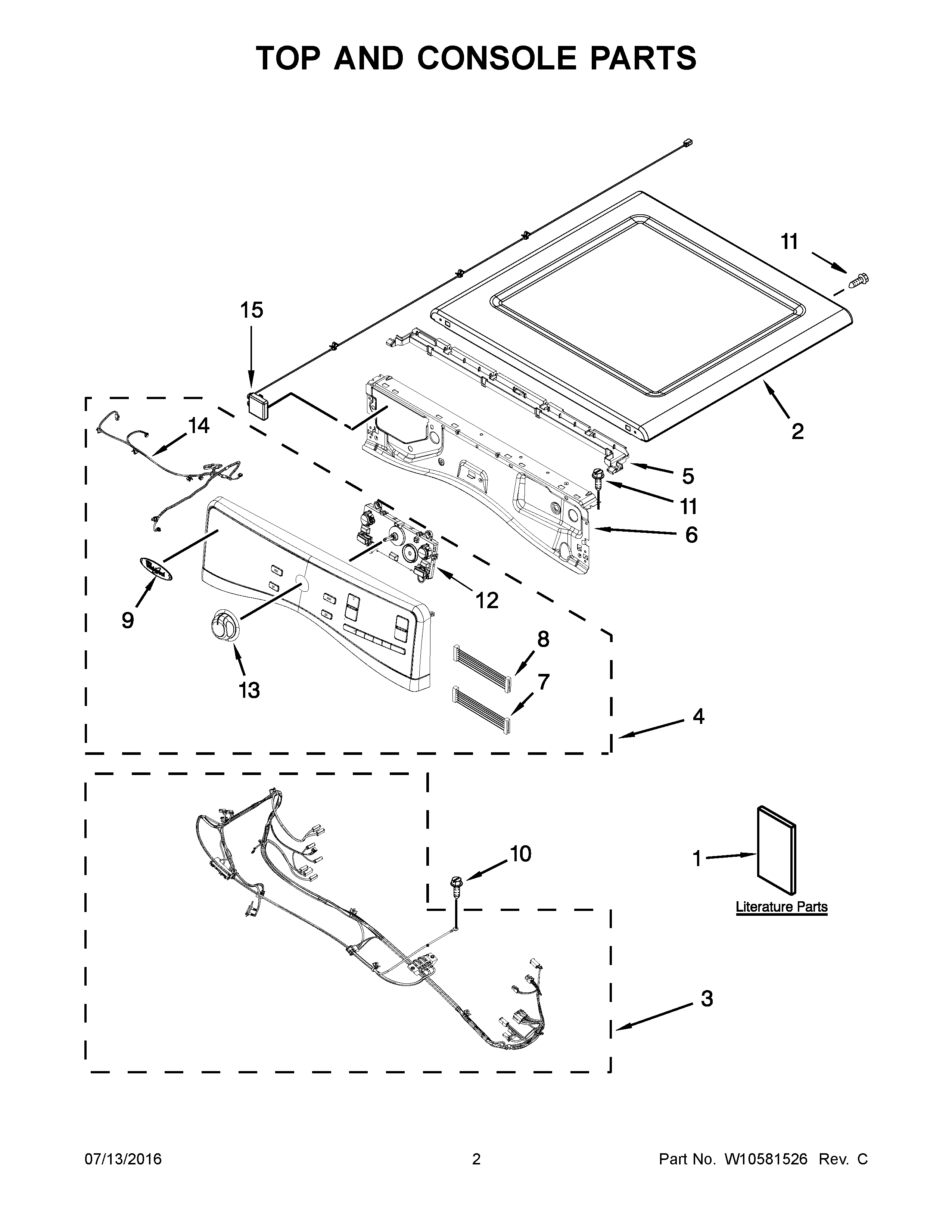

WEL98HEBU0 02 – TOP AND CONSOLE PARTS

WEL98HEBU0 02 – TOP AND CONSOLE PARTS

Written by

in

WEL98HEBU0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1CWIRING DIAGRAM
1ATECH SHEET
1BINSTALLATION, INSTRUCTION
2WPW10316282 Whirlpool Top Assembly
3W10396605 Whirlpool Wire Harness
4PANEL, CONSOLE
5WPW10653575 Whirlpool Channel
6BRACKET, CONSOLE
7HARNESS, JUMPER UI
8W10267937 Whirlpool Wire Harness
9BADGE
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12UI, CENTER (INCLUDES KNOB)
13WPW10251394 Whirlpool Knob
14CABLE, USER INTERFACE
15ANTENNA ASSEMBLY, FRONT
