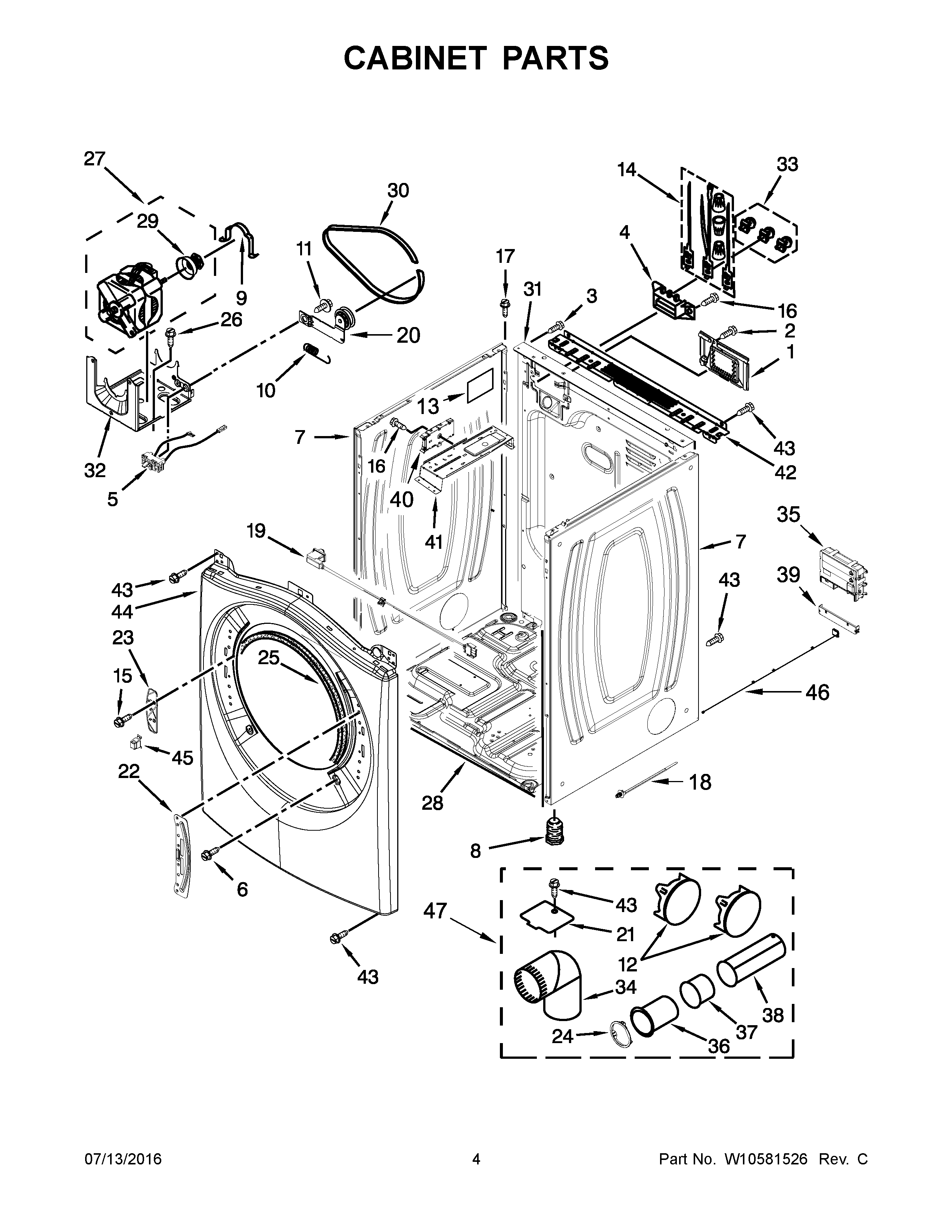

WEL98HEBU0 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	WPW10316167 Whirlpool Dishwasher Terminal Cover
2	WP3390631 Whirlpool Screw
3	W10850756 Whirlpool Screw
4	WP3397659 Whirlpool Terminal Block
5	W10847984 Whirlpool Switch
6	WP308685 Whirlpool Microwave Screw
7	WPW10468499 Whirlpool Panel
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10404617 Whirlpool Plug Assembly
13	W11409002 Whirlpool Pad
14	279318 Whirlpool Terminal
15	SCREW
16	WP90767 Whirlpool Screw
18	WPW10339879 Whirlpool Wire Tie
19	WPW10350906 Whirlpool Door Switch
20	W10837240 Whirlpool Dryer Idler Pulley
21	WPW10354249 Whirlpool Cover
22	BRACKET, DOOR HINGE
23	WPW10208250 Whirlpool Strike
24	WPW10344699 Whirlpool Collar
25	W10516156 Whirlpool Seal
26	SCREW
27	279787 Whirlpool Dryer Drive Motor
28	W11215531 Whirlpool Base
29	W10837625 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	W10487430 Whirlpool Rear Panel
32	W11481730 Whirlpool Bracket
33	279393 Whirlpool Terminal Block Screw and Nut Kit
34	WPW10416072 Whirlpool Elbow
35	ECM, SMART GRID
36	WP8563747 Whirlpool Exhaust Pipe
37	WPW10331278 Whirlpool Exhaust Pipe
38	WP8563749 Whirlpool Exhaust Pipe
39	COVER, ECM CONNECTOR
40	WPW10486575-includeCORE Whirlpool WPW10486575 Washer Electronic Control Board + Core
41	BRACKET, CONTROL
42	WPW10208382 Whirlpool Dryer Bracket
43	WP488729 Whirlpool Refrigerator Door Screw
44	WPW10460923 Whirlpool Panel
45	W11240283 Whirlpool Catch Assembly
46	ANTENNA ASSEMBLY, REAR
47	W10323246 Whirlpool Dryer Vent Kit 4-Way
