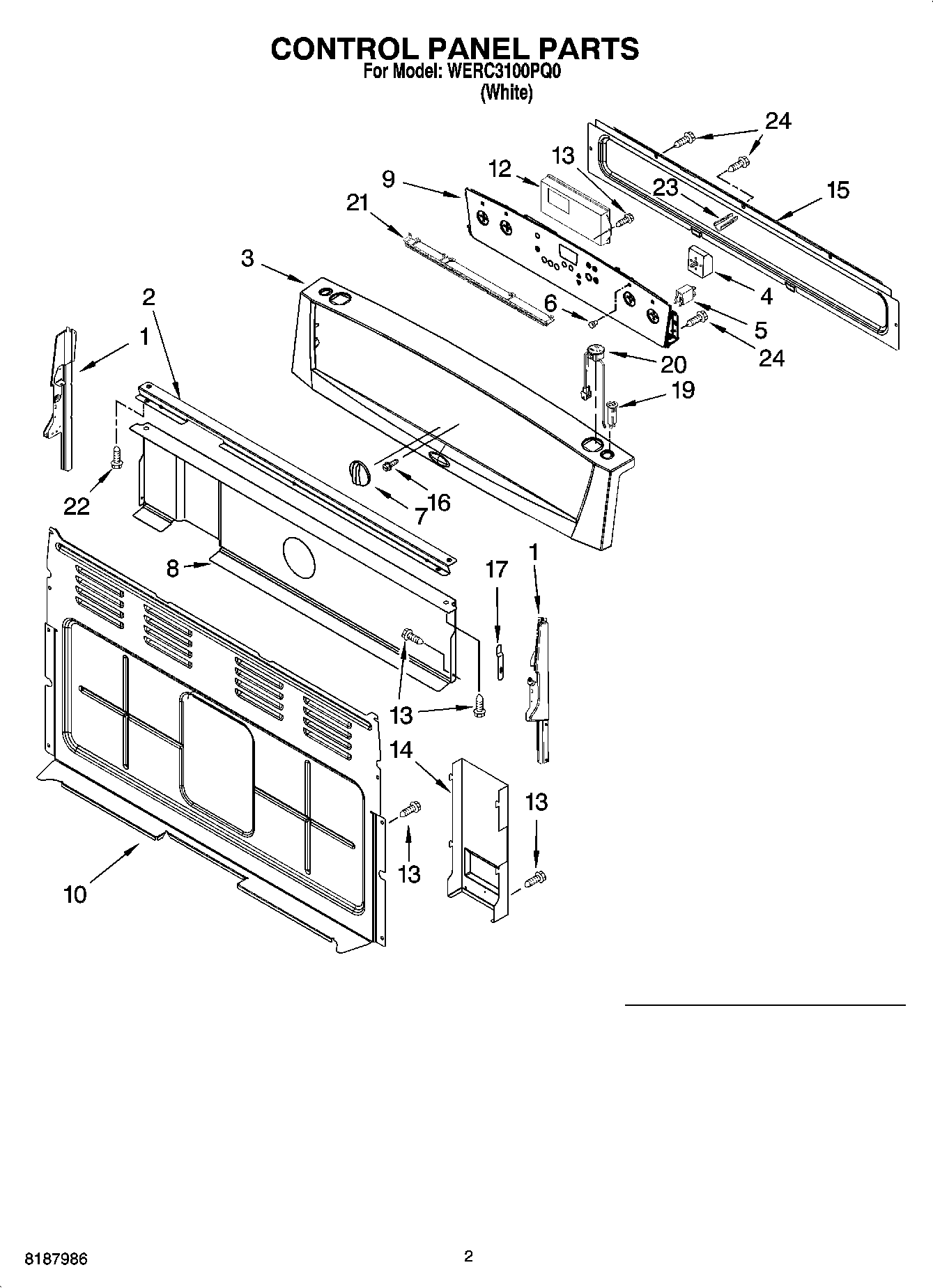

WERC3100PQ0 02 – CONTROL PANEL PARTS

WERC3100PQ0 02 – CONTROL PANEL PARTS

Written by

in

WERC3100PQ0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219365 Whirlpool Panel Endcap
1W11219370 Whirlpool Endcap Panel
2Bracket, Console
3Panel, Backguard (White)
4WP3148952 Whirlpool Oven Infinite Switch
4WP3149400 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7Knob, Infinite (4) (White)
8Shield, Heat
9Bracket, Control
10Cover, Rear
12Control, Range
13SCREW
14Cover, Box
15Cover, Rear (Console)
16WP3400882 Whirlpool Screw
173196200 Whirlpool Clip
19WP9757601 Whirlpool Breaker
20Receptacle (White)
21Re
223196166 Whirlpool Screw
23WPL 9757490
24WPL 8533968
