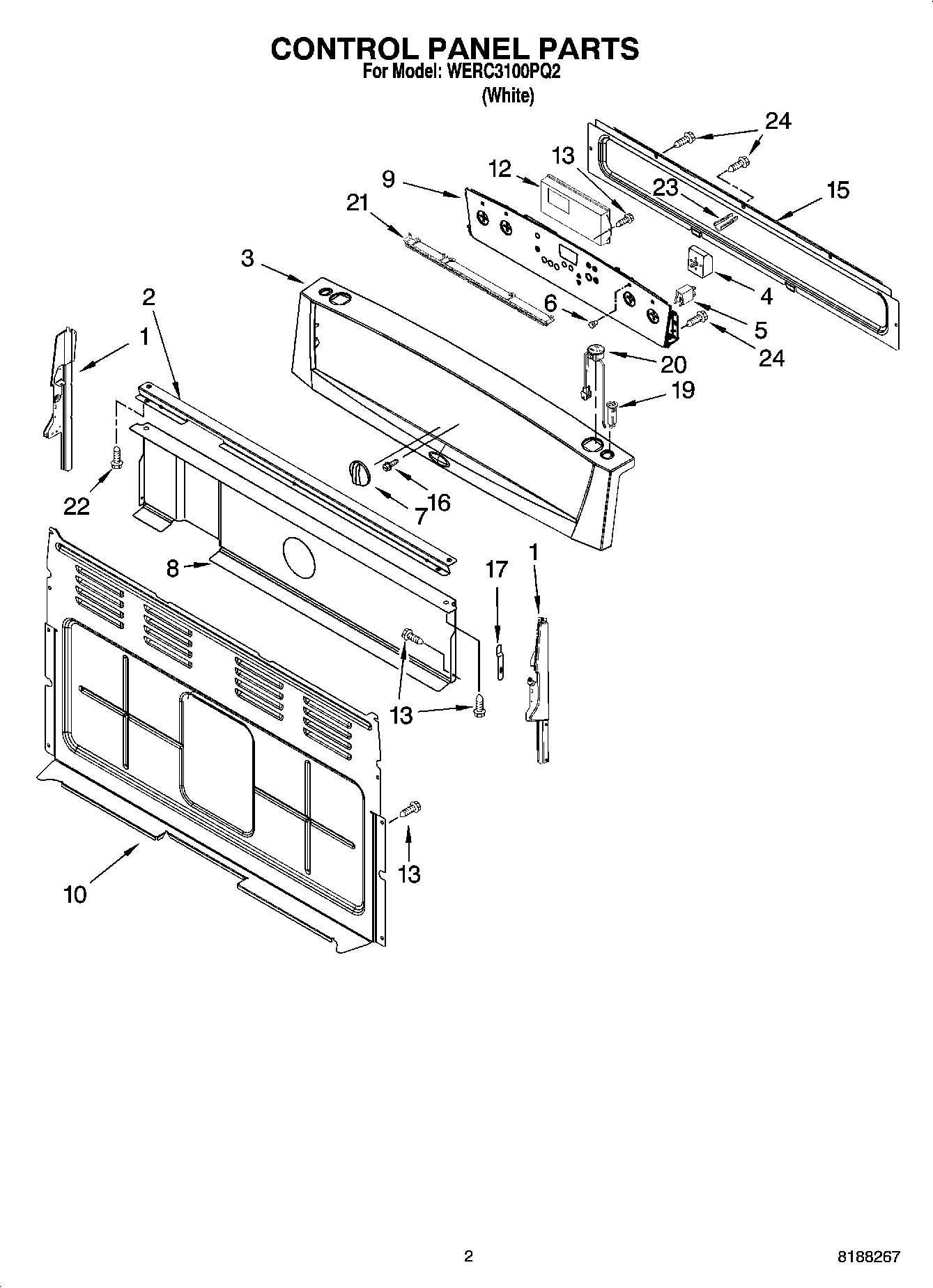

WERC3100PQ2 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219365 Whirlpool Panel Endcap
1	W11219370 Whirlpool Endcap Panel
2	Bracket, Console
3	Panel, Backguard (White)
4	WP3148952 Whirlpool Oven Infinite Switch
4	WP3149400 Whirlpool Oven Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	Knob, Infinite (4) (White)
8	Shield, Heat
9	Bracket, Control
10	Cover, Rear
12	Control, Range
13	SCREW
15	Cover, Rear (Console)
16	WP3400882 Whirlpool Screw
17	3196200 Whirlpool Clip
19	WP9757601 Whirlpool Breaker
20	Receptacle (White)
21	Re
22	3196166 Whirlpool Screw
23	WPL 9757490
24	WP3196154 Whirlpool Screw Assembly
