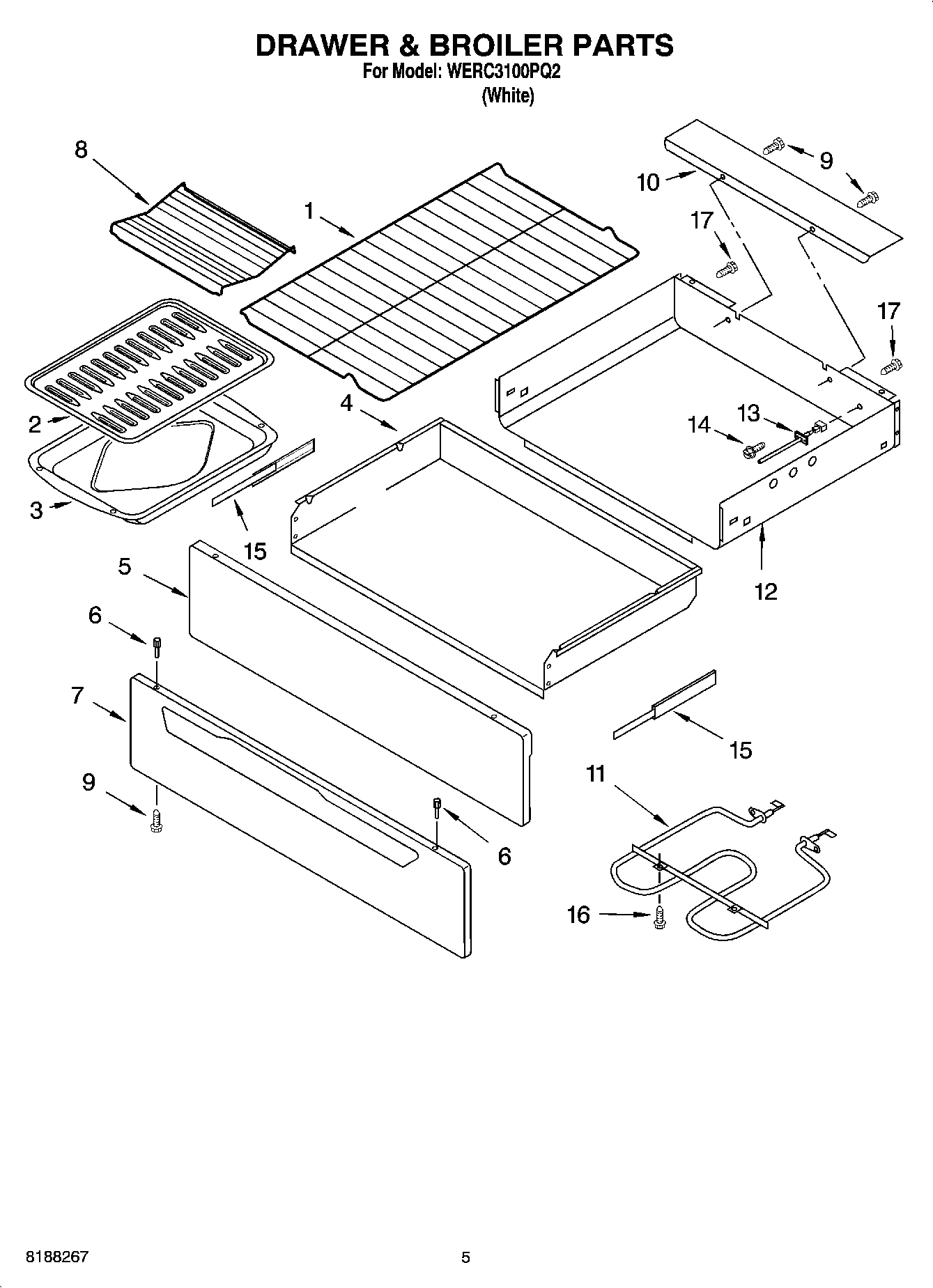

WERC3100PQ2 04 – DRAWER & BROILER PARTS

WERC3100PQ2 04 – DRAWER & BROILER PARTS

Written by

in

WERC3100PQ2 04 – DRAWER & BROILER PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Warming
5Panel, Inner
6WP3196814 Whirlpool Rivet
7W11219377 Whirlpool Drawer Panel
8Rack, Roasting
9WP3400832 Whirlpool Screw
10Shield, Element
11Element, Warming
12Enclosure, Drawer
13WP8274149 Whirlpool Sensor Assembly
14WPY706189 Whirlpool Stove Screw
15Slide, Drawer (Left Hand)
15Slide, Drawer (Right Hand)
16WP3196174 Whirlpool Screw
17SCREW
