WERC4101SB3 05 – DOOR PARTS, OPTIONAL PARTS

WERC4101SB3 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

WERC4101SB3 05 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI164893A
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	3184020 Whirlpool Oven Wire
	WP3196154 Whirlpool Screw Assembly
	WPL W10111794
	WPL ARI164892A
	WPL ARI164891A
	WPL ARI164890A
	WPL ARI164889A
	WPL ARI164888A
	WPL ARI164887A
	WPL W10085200
	WPL 9762816
	WPL 9762815
	WPL 9756779
	Grease
	Clip, Ground Wire
	WP72107 Whirlpool Touchup
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	WPW10208653 Whirlpool Insulation
	FOIL, ALUMINUM OVEN (18“ X 25 )
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	Wire, 25` Roll (Red 14 Ga.)
	350942 Whirlpool Spray Paint
	285006 Whirlpool Spray
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	WPL 799832
	799344 Whirlpool Refrigerator Paint
	511873 Whirlpool Refrigerator Paint
	W11447673 Whirlpool Range Tip Anchor
	Almond (Uncut)

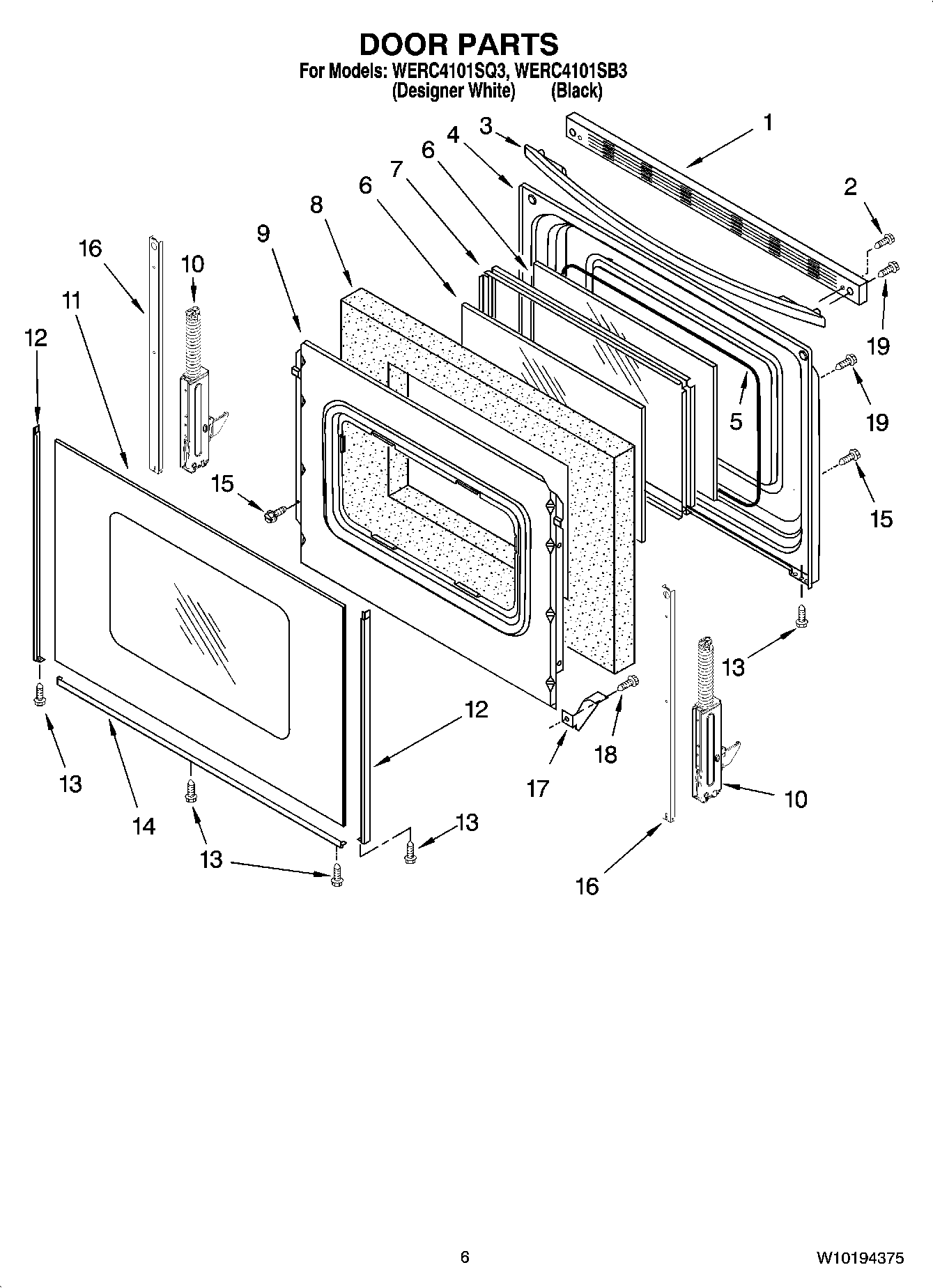

1	Trim, Top (White)
1	WP9762391 Whirlpool Door Trim Assembly
2	WP3196164 Whirlpool Screw
3	Handle, Door (White)
3	Handle, Door (Black)
4	WP9761344 Whirlpool Door Liner
5	Seal, Window
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	W10347466 Whirlpool Door Hinge
11	WPW10118454 Whirlpool Door Outer Glass White
11	WPW10118455 Whirlpool Door Glass Assembly
12	WP8523172 Whirlpool Left Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
12	W10761014 Whirlpool Right Door Trim
12	WP8523166 Whirlpool Door Trim
13	W10491985 Whirlpool Screw
14	WP8523177 Whirlpool Door Trim Assembly
14	WP8523175 Whirlpool Door Trim Assembly
15	WPW10031790 Whirlpool Screw
16	W11502236 Whirlpool Door Trim
17	WP3196794 Whirlpool Glass Bracket
18	WP3196175 Whirlpool Screw
19	W10777162 Whirlpool Screw
