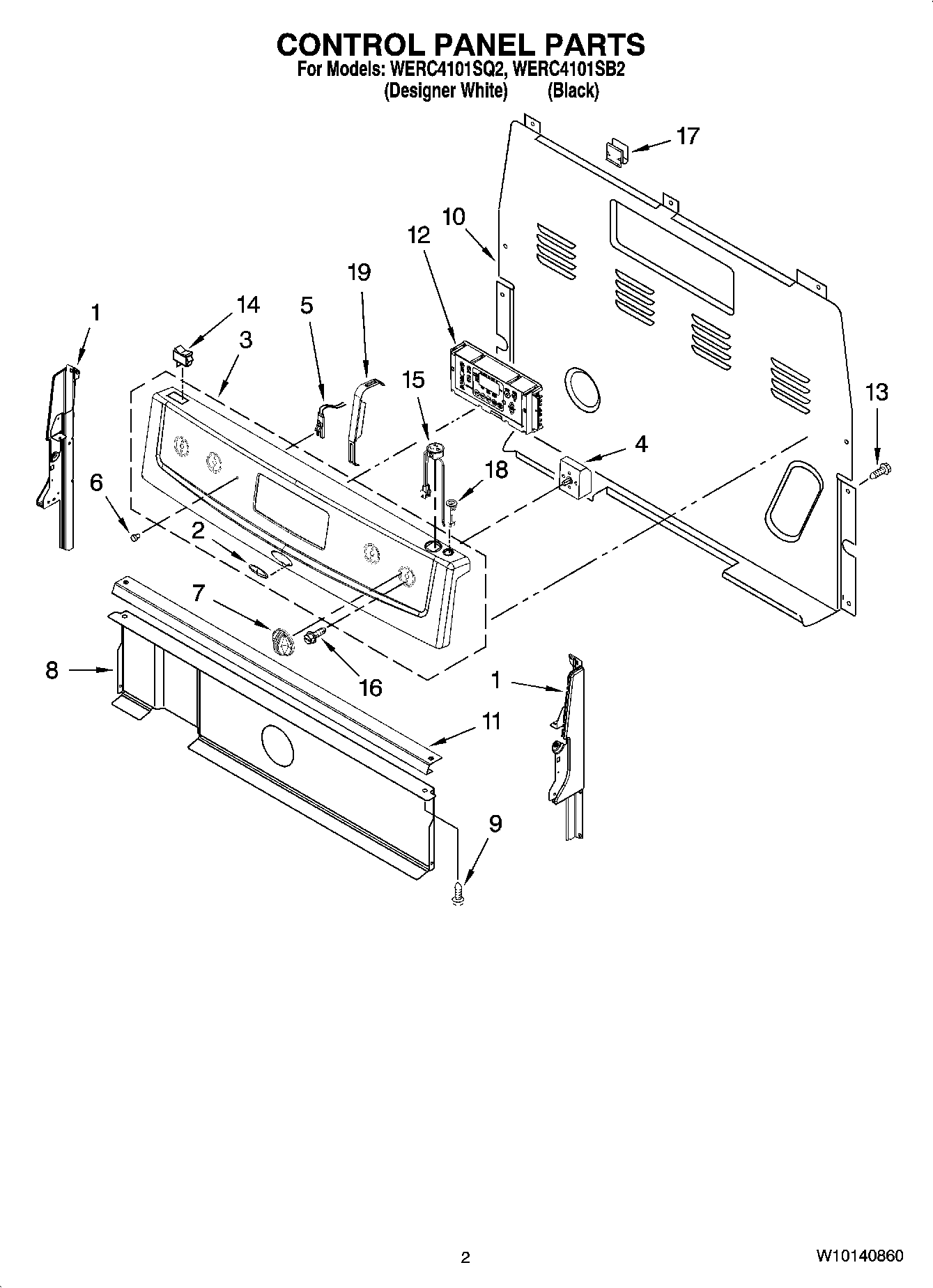

WERC4101SQ2 02 – CONTROL PANEL PARTS

WERC4101SQ2 02 – CONTROL PANEL PARTS

Written by

in

WERC4101SQ2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
1W11219665 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
2Nameplate
3Panel, Control (Black)
3Panel, Control (White)
4WP9758060 Whirlpool Oven Infinite Switch
4WP3149404 Whirlpool Oven Surface Element Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7WP9761964 Whirlpool Knob
7WP9761962 Whirlpool Range Stove Burner Control Knob
8W10134247 Whirlpool Heat Shield
93196166 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11Bracket, Console
12Control, Range (Black)
12Control, Range (White)
13SCREW
143149360 Whirlpool Light Switch
14WP4314961 Whirlpool Lite Switch
15Receptacle (2)
15Receptacle (Black)
16WP3400882 Whirlpool Screw
17WP8273564 Whirlpool Clip
18WP9757602 Whirlpool Breaker
18WP9757601 Whirlpool Breaker
19BRACKET, MOUNTING EOC
