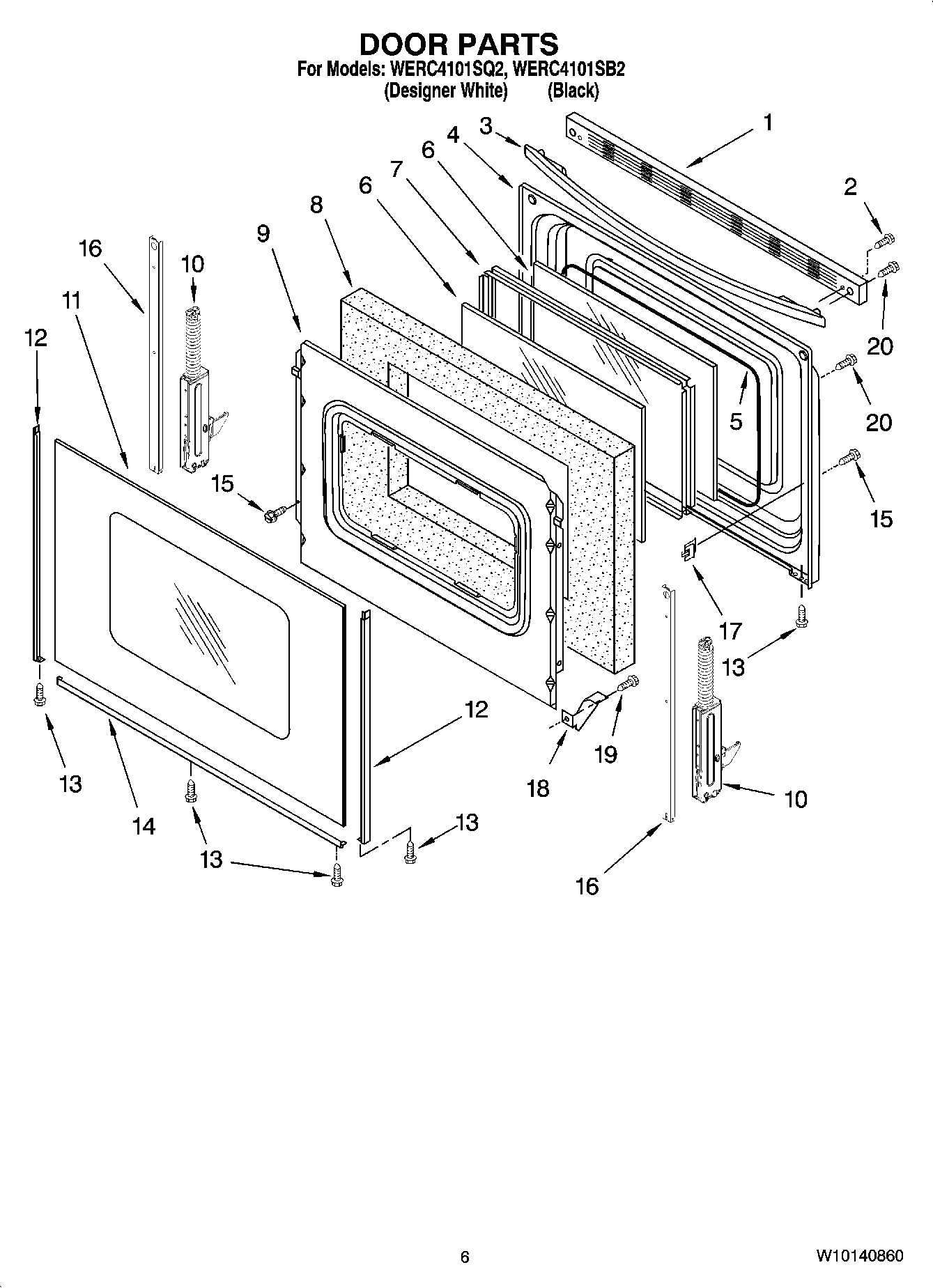

WERC4101SQ2 05 – DOOR PARTS, OPTIONAL PARTS

WERC4101SQ2 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

WERC4101SQ2 05 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI164919A
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	3184020 Whirlpool Oven Wire
	Grease
	WP3196154 Whirlpool Screw Assembly
	WPL ARI164918A
	WPL ARI164917A
	WPL ARI164916A
	WPL W10111794
	WPL ARI164915A
	WPL ARI164914A
	WPL ARI164913A
	W10084710 Whirlpool Wire Harness
	WPL W10111781
	WPL 9756779
	WPL W10111787
	Clip, Ground Wire
	285006 Whirlpool Spray
	WPL 799832
	511873 Whirlpool Refrigerator Paint
	WPW10208653 Whirlpool Insulation
	FOIL, ALUMINUM OVEN (18“ X 25 )
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	Wire, 25` Roll (Red 14 Ga.)
	WP72107 Whirlpool Touchup
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	Almond (Uncut)
	W11447673 Whirlpool Range Tip Anchor
	350942 Whirlpool Spray Paint
1	Trim, Top (White)
1	WP9762391 Whirlpool Door Trim Assembly
2	WP3196164 Whirlpool Screw
3	Handle, Door (White)
3	Handle, Door (Black)
4	WP9761344 Whirlpool Door Liner
5	Seal, Window
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	W10347466 Whirlpool Door Hinge
11	WPW10118454 Whirlpool Door Outer Glass White
11	WPW10118455 Whirlpool Door Glass Assembly
12	W10761014 Whirlpool Right Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
12	WP8523166 Whirlpool Door Trim
12	WP8523172 Whirlpool Left Door Trim
13	W10491985 Whirlpool Screw
14	WP8523177 Whirlpool Door Trim Assembly
14	WP8523175 Whirlpool Door Trim Assembly
15	WPW10031790 Whirlpool Screw
16	W11502236 Whirlpool Door Trim
17	Clip, Glass (4)
18	WP3196794 Whirlpool Glass Bracket
19	WP3196175 Whirlpool Screw
20	W10777162 Whirlpool Screw
