WERC4101SQ3 01 – COOKTOP PARTS

WERC4101SQ3 01 – COOKTOP PARTS

Written by

in

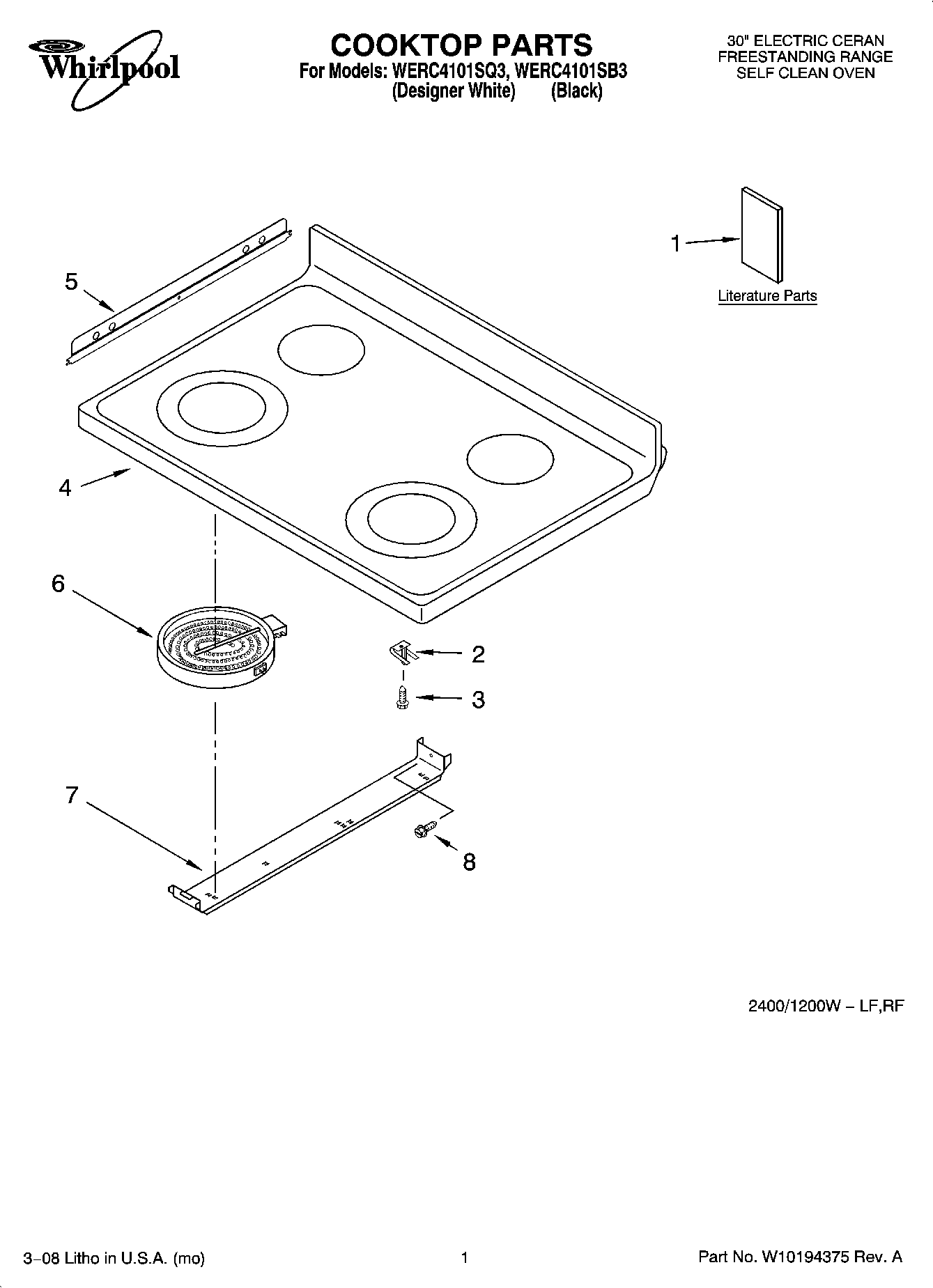

WERC4101SQ3 01 – COOKTOP PARTS

Products

PositionProduct
1Anti-Tip Template (English/Spanish)
1Tech Sheet (English)
1Owners Manual
1Installation Instructions
1Tech Sheet (French)
1Anti-Tip Template (English/French)
2Spring, Locator
3WP3196170 Whirlpool Screw
4Cooktop (White)
4Cooktop (Black)
5WPL 8524132
6W10823692 Whirlpool Dual Radiant Element
6W10823711 Whirlpool Surface Element Left Front and Right Rear
7Bracket, Element ((2))
8WP3196557 Whirlpool Screw
