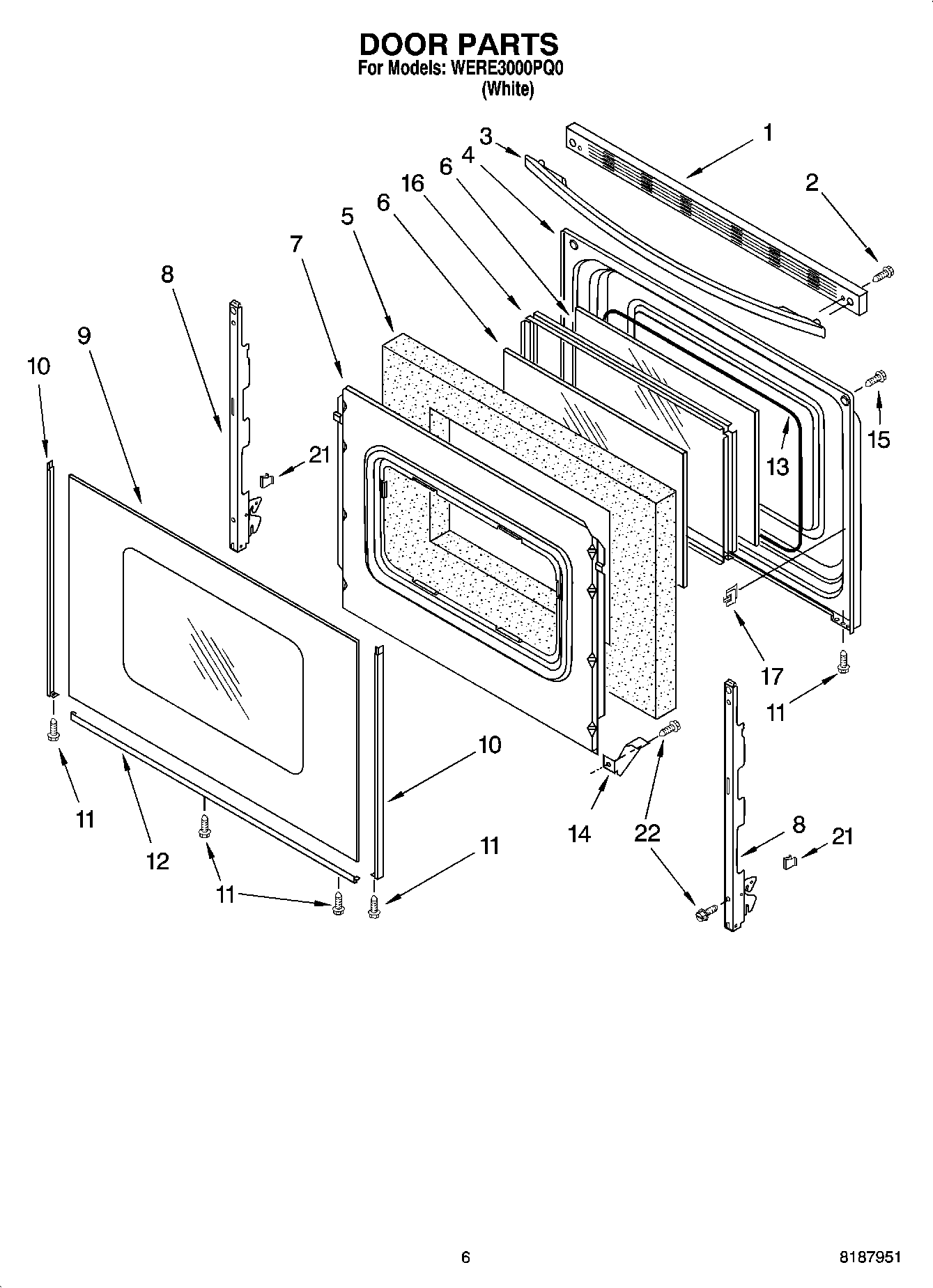

WERE3000PQ0 05 – DOOR PARTS, MISCELLANEOUS PARTS

WERE3000PQ0 05 – DOOR PARTS, MISCELLANEOUS PARTS

Written by

in

WERE3000PQ0 05 – DOOR PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI134944A
	Grease
	3196696 Whirlpool Clip
	3184020 Whirlpool Oven Wire
	8212471 Whirlpool Oven Paint
	WP3196174 Whirlpool Screw
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	WP3196154 Whirlpool Screw Assembly
	WPL 8316781
	WPL ARI134945A
	WPL ARI134943A
	WPL ARI134942A
	WPL ARI134941A
	WPL ARI134940A
	WPL ARI134939A
	WPL ARI134946A
	WPL 9758296
	WPL 9757587
	WPL 9756752
	WPL 9756779
	WPL 9756350
	W11396691 Whirlpool Element Receptacle and Wire Kit
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	350930 Whirlpool White Spray Paint
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	WPL 799832
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	350942 Whirlpool Spray Paint
	Almond (Uncut)
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	WP72107 Whirlpool Touchup
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	242831 Whirlpool Oven Wire
	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
	285006 Whirlpool Spray
	814381 Whirlpool Pin
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
5	WPW10278991 Whirlpool Insulation
6	WP8053948 Whirlpool Door Glass
7	W11539580 Whirlpool Retainer
8	WP8053807 Whirlpool Oven Door Hinge
9	WP8053834 Whirlpool Door Glass
10	WP8523172 Whirlpool Left Door Trim
10	WP8523166 Whirlpool Door Trim
11	W10491985 Whirlpool Screw
12	WP8523175 Whirlpool Door Trim Assembly
13	Seal, Window
14	WP3196794 Whirlpool Glass Bracket
15	WP179051 Whirlpool Screw
16	WPW10316950 Whirlpool Window Frame
17	Clip, Glass (4)
21	WP3196925 Whirlpool Clip Assembly
22	WP3196175 Whirlpool Screw
