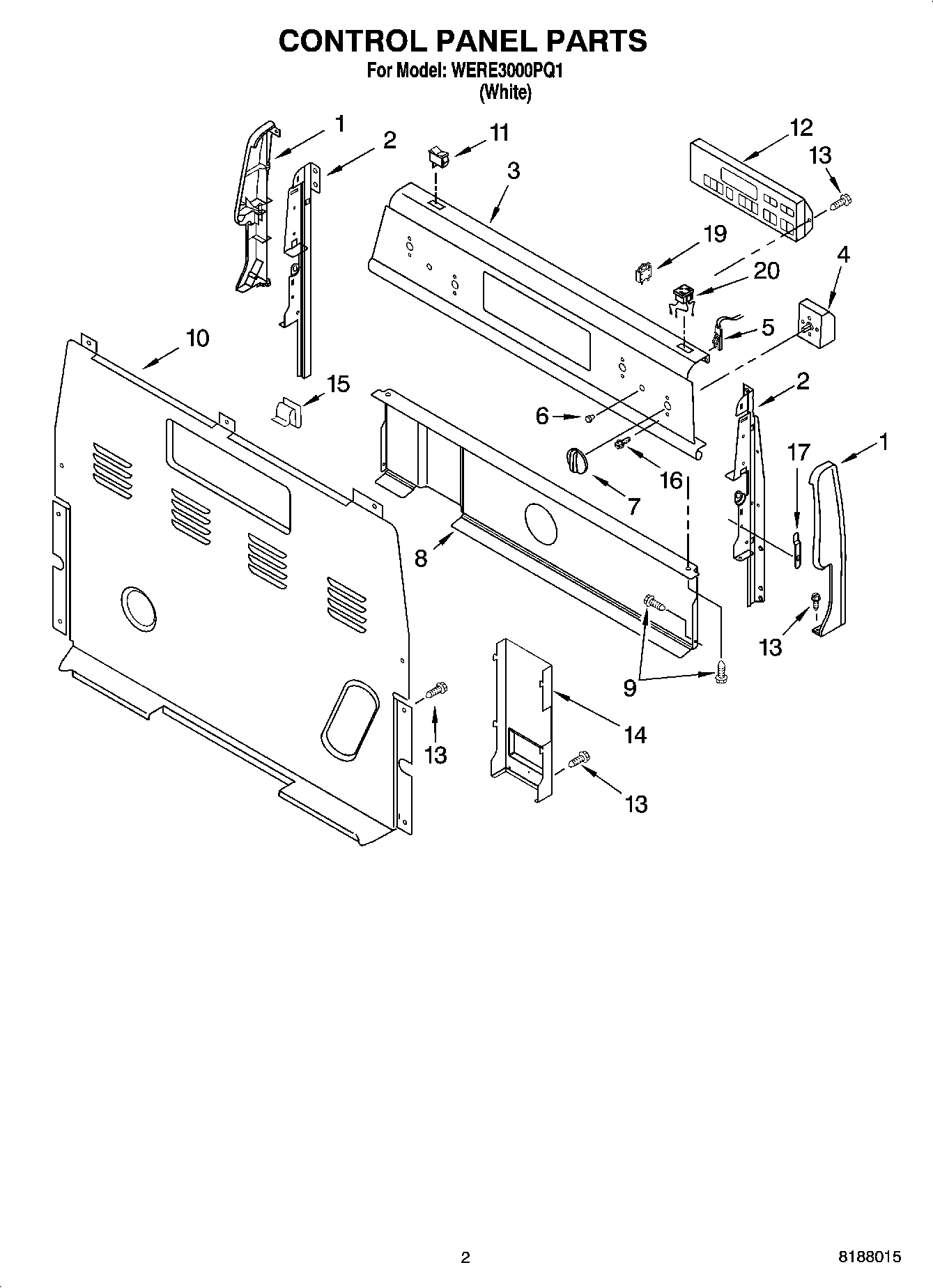

WERE3000PQ1 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Endcap (White Right Hand)
1	Endcap (White Left Hand)
2	Support, Endcap (Right Hand)
2	Support, Endcap (Left Hand)
3	Panel, Backguard
4	WP3149400 Whirlpool Oven Infinite Switch
4	WP3148952 Whirlpool Oven Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	WP8522565 Whirlpool Knob
8	Shield, Heat
9	Screw
10	WP8272473 Whirlpool Rear Cover
11	3149360 Whirlpool Light Switch
12	Control, Range (White)
13	SCREW
14	WPW10326122 Whirlpool Black Cover
15	WP8273564 Whirlpool Clip
16	WP3400882 Whirlpool Screw
17	3196200 Whirlpool Clip
19	Breaker, 15 Amp
20	Outlet, Untimed
