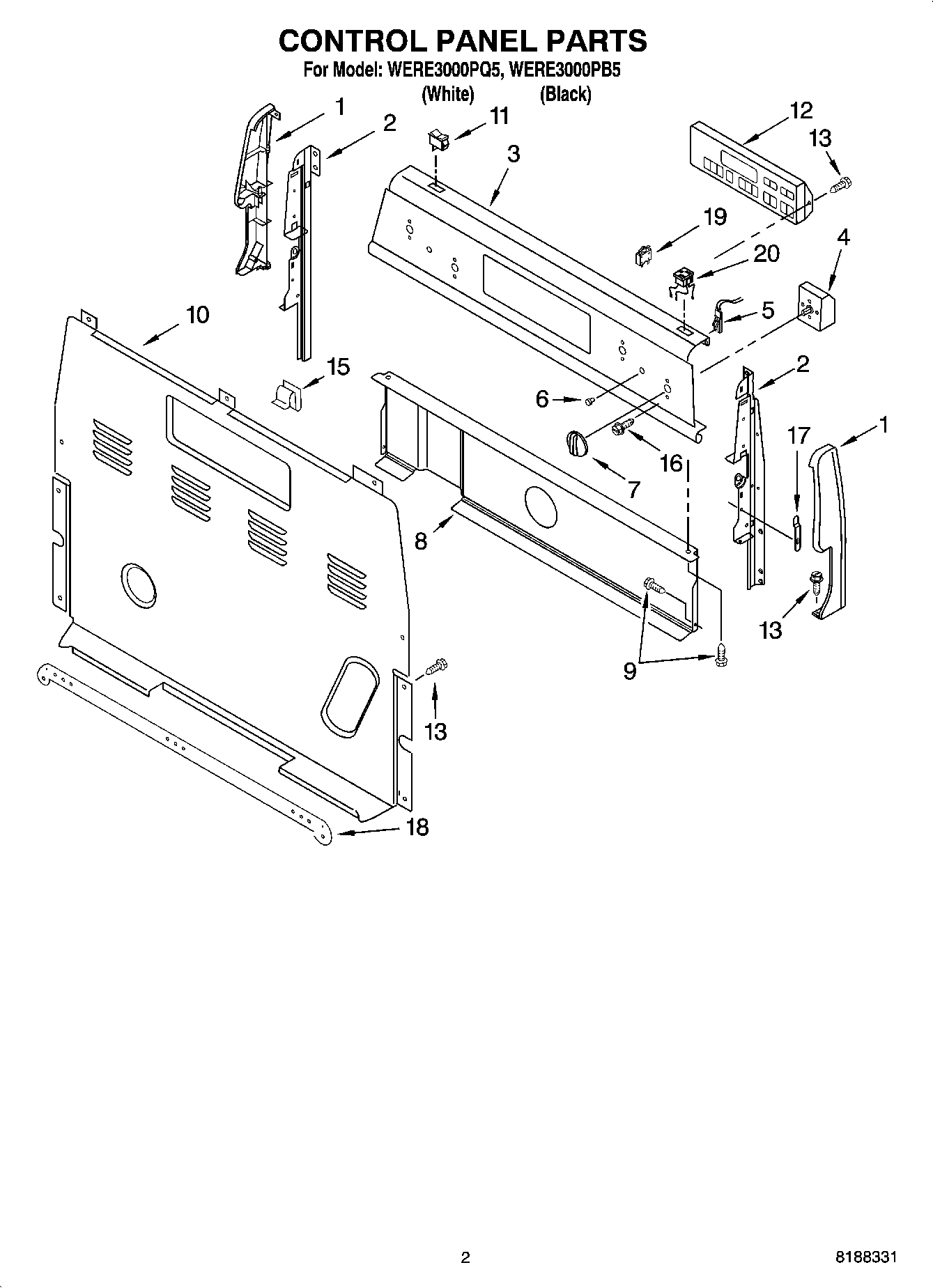

WERE3000PQ5 02 – CONTROL PANEL PARTS

WERE3000PQ5 02 – CONTROL PANEL PARTS

Written by

in

WERE3000PQ5 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap, Right Hand (Black)
1Endcap (Black Left Hand)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Control (Black)
3Panel, Backguard
4WP3148952 Whirlpool Oven Infinite Switch
4WP3149400 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7WP8522566 Whirlpool Knob
7WP8522565 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11WP4314961 Whirlpool Lite Switch
113149360 Whirlpool Light Switch
12Control, Range (Black)
12Control, Range (White)
13SCREW
15WP8273564 Whirlpool Clip
16WP3400882 Whirlpool Screw
173196200 Whirlpool Clip
18Guard, Wire
19WP9757602 Whirlpool Breaker
19WP9757601 Whirlpool Breaker
20Receptacle (2)
20Receptacle (Black)
