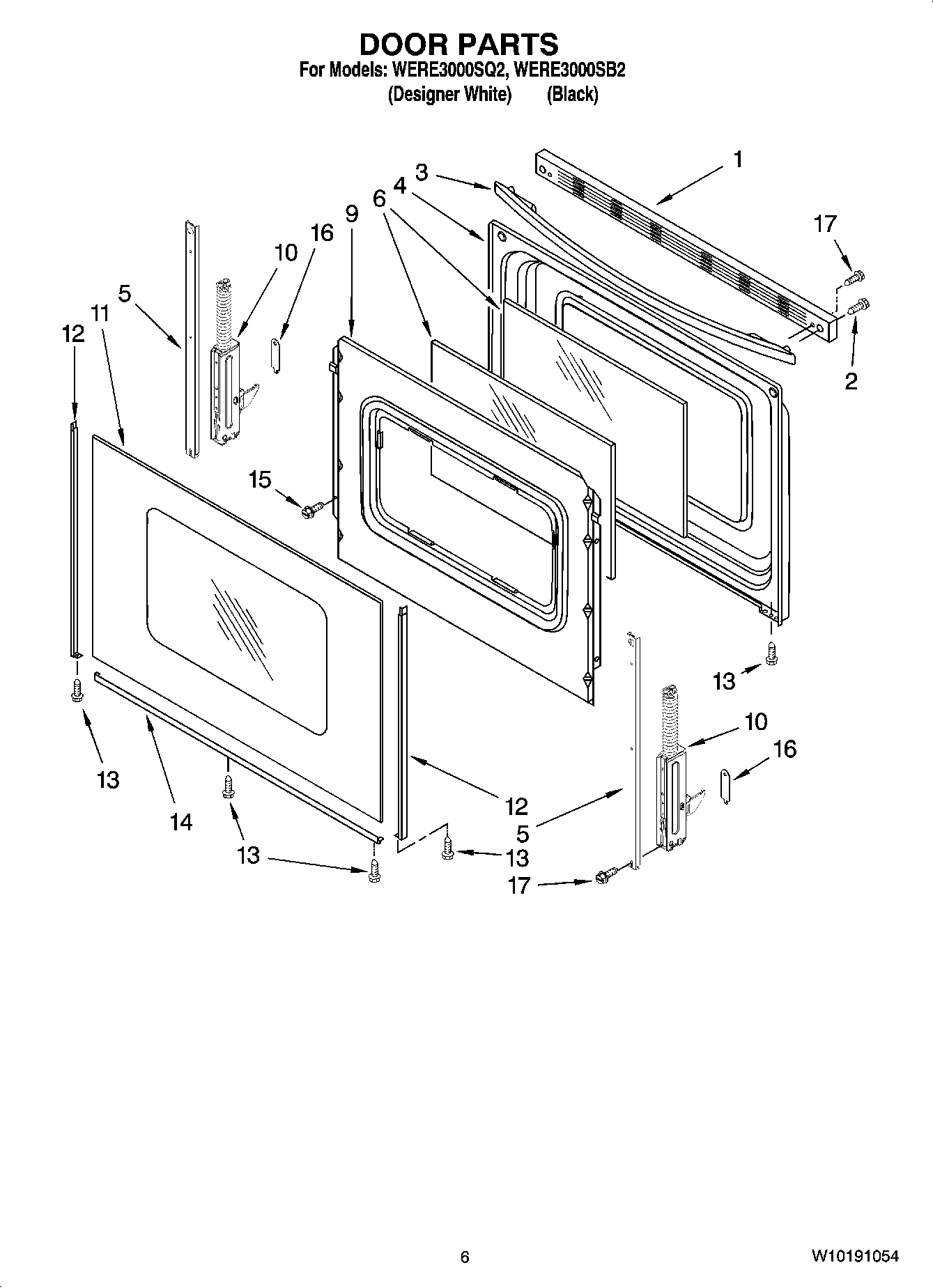

WERE3000SB2 05 – DOOR PARTS, OPTIONAL PARTS

WERE3000SB2 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

WERE3000SB2 05 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI135010A
	3184020 Whirlpool Oven Wire
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Grease
	WP3196154 Whirlpool Screw Assembly
	WPL 9756779
	WPL ARI135009A
	WPL ARI135008A
	WPL ARI135007A
	WPL ARI135006A
	WPL ARI135005A
	WPL W10083580
	W11172424 Whirlpool Wire Harness
	WPW10295595 Whirlpool Wire Harness
	WPL ARI135011A
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	WPW10208653 Whirlpool Insulation
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPL 799832
	Wire, 25` Roll (Red 14 Ga.)
	285006 Whirlpool Spray
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	511873 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	Almond (Uncut)
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	W11447673 Whirlpool Range Tip Anchor
1	WP9762391 Whirlpool Door Trim Assembly
1	Trim, Top (White)
2	WP3196164 Whirlpool Screw
3	Handle, Door (Black)
3	Handle, Door (White)
4	WP9761344 Whirlpool Door Liner
5	W11502236 Whirlpool Door Trim
6	WP8053948 Whirlpool Door Glass
9	W11685635 Whirlpool Retainer
10	W10347465 Whirlpool Door Hinge
11	WPW10118454 Whirlpool Door Outer Glass White
11	WPW10118455 Whirlpool Door Glass Assembly
12	WP8523172 Whirlpool Left Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
12	WP8523166 Whirlpool Door Trim
12	W10761014 Whirlpool Right Door Trim
13	W10491985 Whirlpool Screw
14	WP8523175 Whirlpool Door Trim Assembly
14	WP8523177 Whirlpool Door Trim Assembly
15	WPW10031790 Whirlpool Screw
16	9761517 Whirlpool Oven Clip Assembly
17	W10777162 Whirlpool Screw
