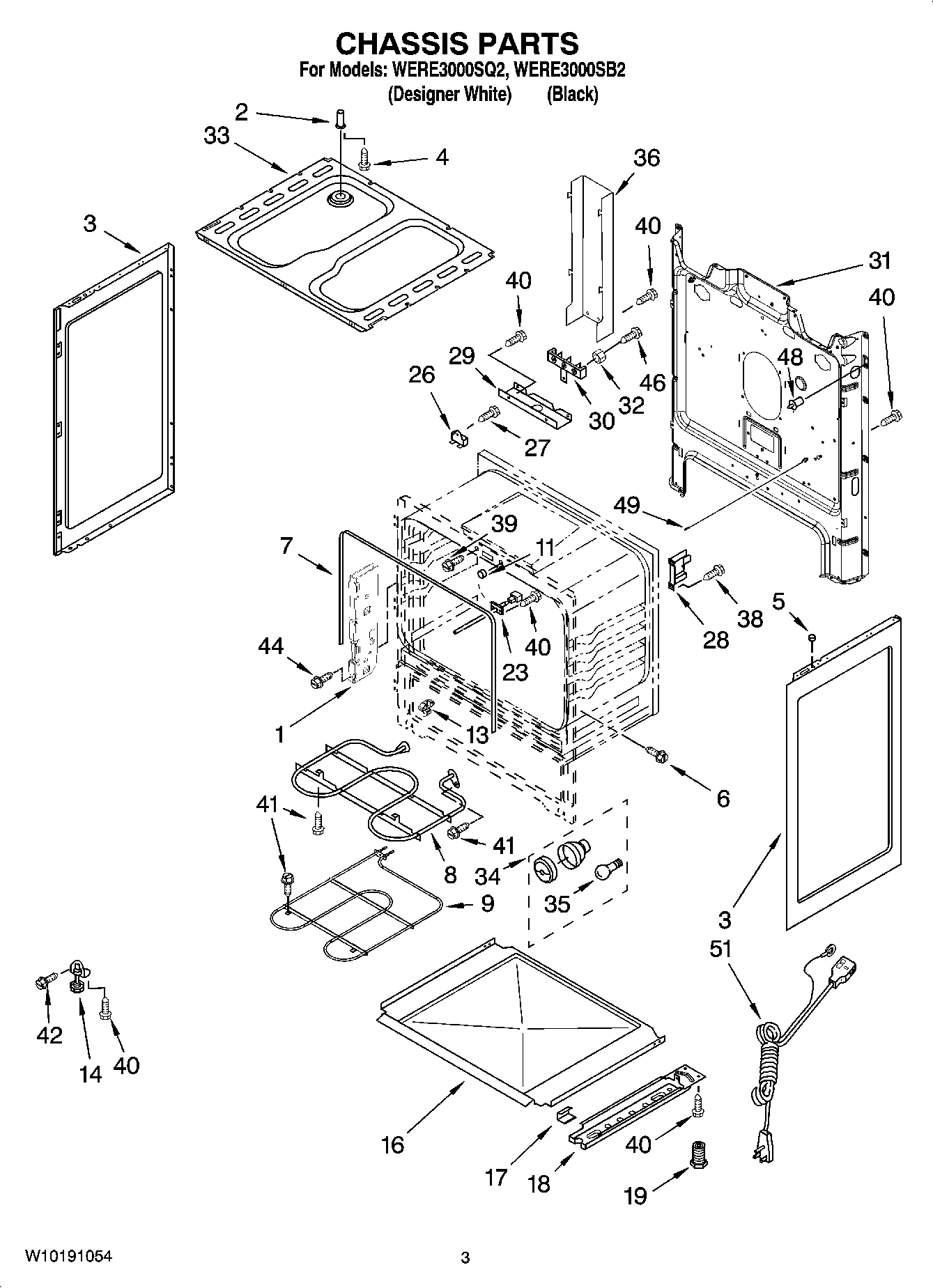

WERE3000SQ2 03 – CHASSIS PARTS

Products

Position	Product
	WPW10208653 Whirlpool Insulation
	W11311894 Whirlpool Insulation
	Insulation
1	W10647259 Whirlpool Hinge Receiver
2	9755804 Whirlpool Oven Vent Tube
3	W11730303 Whirlpool Side Panel
3	WPW10575396 Whirlpool Side Panel
4	WP3196567 Whirlpool Screw
5	238614 Whirlpool Bumper Hinge
7	W11542153 Whirlpool Door Gasket
8	W10856603 Whirlpool Broil Element
9	WPW10308477 Whirlpool Bake Element
11	W10877054 Whirlpool Spacer Assembly
13	WPW10114344 Whirlpool Drawer Glide
14	WP3196037 Whirlpool Leveling Foot
16	WP8054068 Whirlpool Retainer
17	Clip, Panel (6)
18	WPW10306546 Whirlpool Base Rail
19	WPW10058460 Whirlpool Appliance Levelling Leg
23	WPW10181986 Whirlpool Oven Sensor
26	WP3196548 Whirlpool Thermal Fuse
27	3196172 Whirlpool Oven Screw
28	W10404688 Whirlpool Bracket Support
29	W11728255 Whirlpool Service Bracket
30	Block, Terminal
31	Back, Main
32	Nut
33	W11699791 Whirlpool Burner Box
34	W11594027 Whirlpool Range Oven Light Socket
35	RANGE ONLY 40W 120V APPL BULB
36	WPW10326122 Whirlpool Black Cover
38	WP3196557 Whirlpool Screw
39	WP3400832 Whirlpool Screw
40	SCREW
41	WP3196174 Whirlpool Screw
42	Screw
44	W10777162 Whirlpool Screw
46	WP3400016 Whirlpool Screw Assembly
48	WP9757262 Whirlpool Light Switch
49	9757239 Whirlpool Oven Door Rod
51	WPL 9756350
