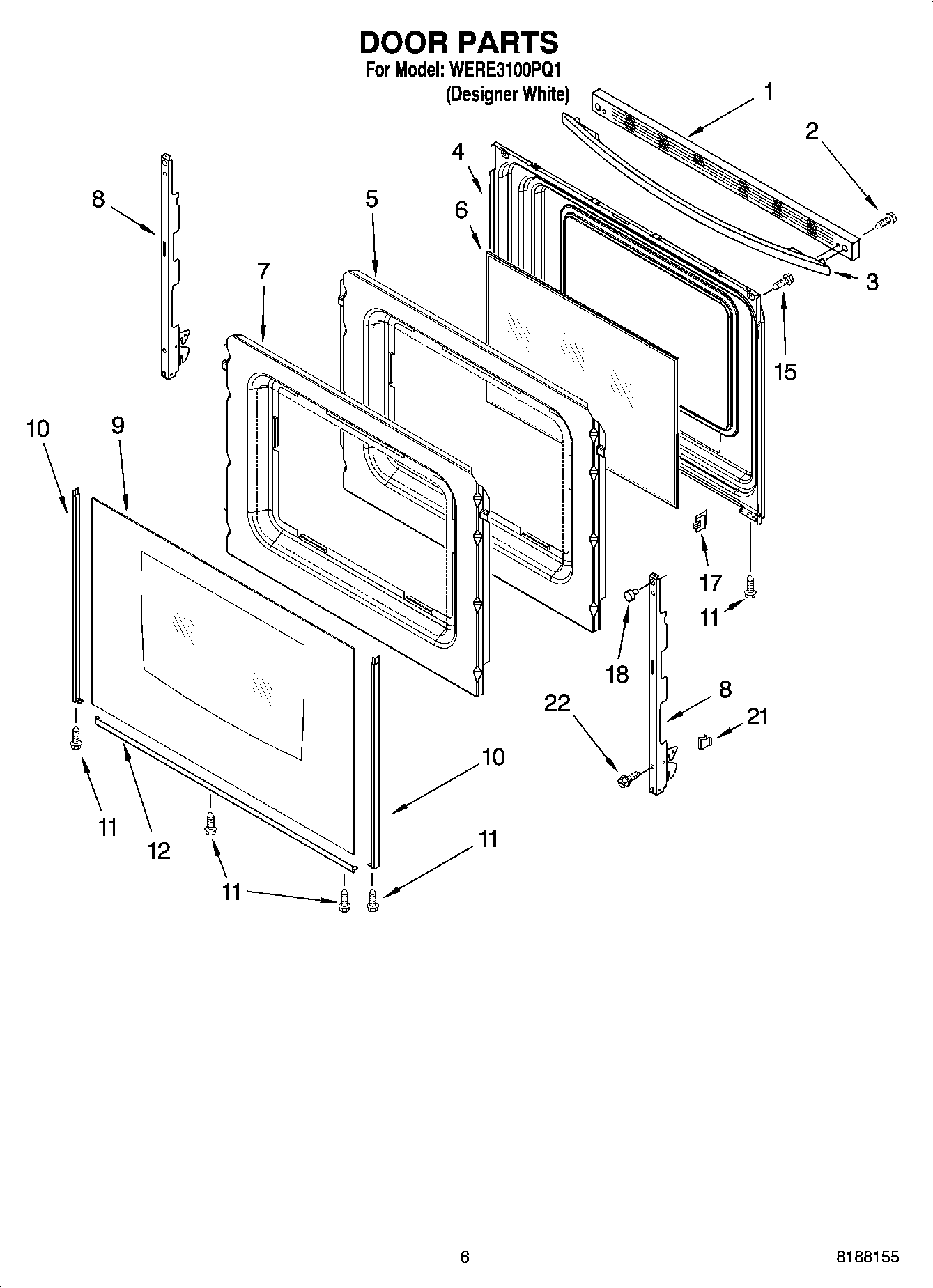

WERE3100PQ1 05 – DOOR PARTS, OPTIONAL PARTS

WERE3100PQ1 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

WERE3100PQ1 05 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI135056A
	Grease
	3184020 Whirlpool Oven Wire
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	WP3196174 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	WPL ARI135049A
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	WP3196154 Whirlpool Screw Assembly
	WPL 9756350
	WPL 9756779
	WPL ARI135055A
	WPL ARI135054A
	WPL ARI135053A
	WPL ARI135052A
	WPL ARI135051A
	WPL ARI135050A
	WPL 9758201
	WPL 9757288
	WPL 9762424
	WPL 9756752
	WPW10295595 Whirlpool Wire Harness
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	511873 Whirlpool Refrigerator Paint
	FOIL, ALUMINUM OVEN (18“ X 25 )
	Wire, 25` Roll (Red 14 Ga.)
	WPL 799832
	4392901 Whirlpool Biscuit Spray Paint
	285006 Whirlpool Spray
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	814381 Whirlpool Pin
	4392899 Whirlpool Biscuit Touch-Up Paint
	3400964 Whirlpool Oven Clip
	Wire (14 Ga. 150 c Yellow)
	WPW10208653 Whirlpool Insulation
	350930 Whirlpool White Spray Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	W11447673 Whirlpool Range Tip Anchor
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
5	Retainer, Insul.
6	WP8053948 Whirlpool Door Glass
7	Retainer, Insul.
8	Hinge, Door (2)
9	WPW10118454 Whirlpool Door Outer Glass White
10	WP8523166 Whirlpool Door Trim
10	WP8523172 Whirlpool Left Door Trim
11	W10491985 Whirlpool Screw
12	WP8523175 Whirlpool Door Trim Assembly
15	WP179051 Whirlpool Screw
17	Clip, Glass (4)
18	238614 Whirlpool Bumper Hinge
21	WP3196925 Whirlpool Clip Assembly
22	WP3196175 Whirlpool Screw
