WERE3100PQ2 05 – DOOR PARTS, OPTIONAL PARTS

WERE3100PQ2 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

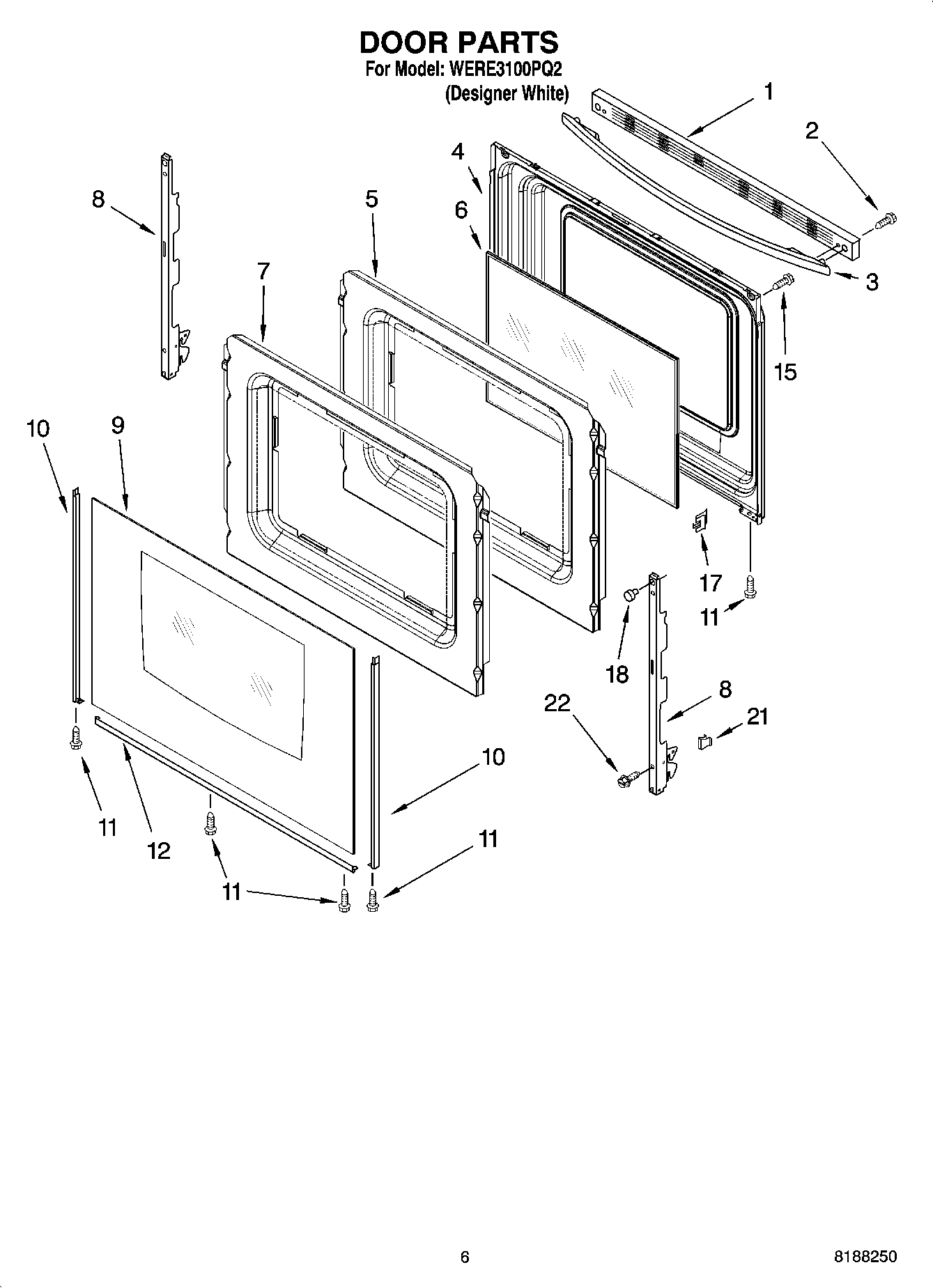

WERE3100PQ2 05 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI135066A
	3184020 Whirlpool Oven Wire
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	WP3196174 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WP3196154 Whirlpool Screw Assembly
	WPL 9756350
	WPL 9756779
	WPL ARI135065A
	WPL ARI135064A
	WPL ARI135063A
	WPL ARI135062A
	WPL ARI135061A
	WPL ARI135060A
	WPL ARI135059A
	WPL 9758201
	WPL 9762424
	WPL 9756752
	WPW10295595 Whirlpool Wire Harness
	242831 Whirlpool Oven Wire
	350930 Whirlpool White Spray Paint
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	WPL 799832
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	511873 Whirlpool Refrigerator Paint
	Wire, 25` Roll (Red 14 Ga.)
	285006 Whirlpool Spray
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	814381 Whirlpool Pin
	4392901 Whirlpool Biscuit Spray Paint
	W11447673 Whirlpool Range Tip Anchor
	4392899 Whirlpool Biscuit Touch-Up Paint
	350942 Whirlpool Spray Paint
	799344 Whirlpool Refrigerator Paint
	Grease
	72017 Whirlpool Appliance Touch-Up Paint White
	3400964 Whirlpool Oven Clip
	4396923 Whirlpool Broil Pan Set Gray Porcelain
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
5	Retainer, Insul.
6	WP8053948 Whirlpool Door Glass
7	Retainer, Insul.
8	Hinge, Door (2)
9	WPW10118454 Whirlpool Door Outer Glass White
10	WP8523166 Whirlpool Door Trim
10	WP8523172 Whirlpool Left Door Trim
11	W10491985 Whirlpool Screw
12	WP8523175 Whirlpool Door Trim Assembly
15	WP179051 Whirlpool Screw
17	Clip, Glass (4)
18	238614 Whirlpool Bumper Hinge
21	WP3196925 Whirlpool Clip Assembly
22	WP3196175 Whirlpool Screw
