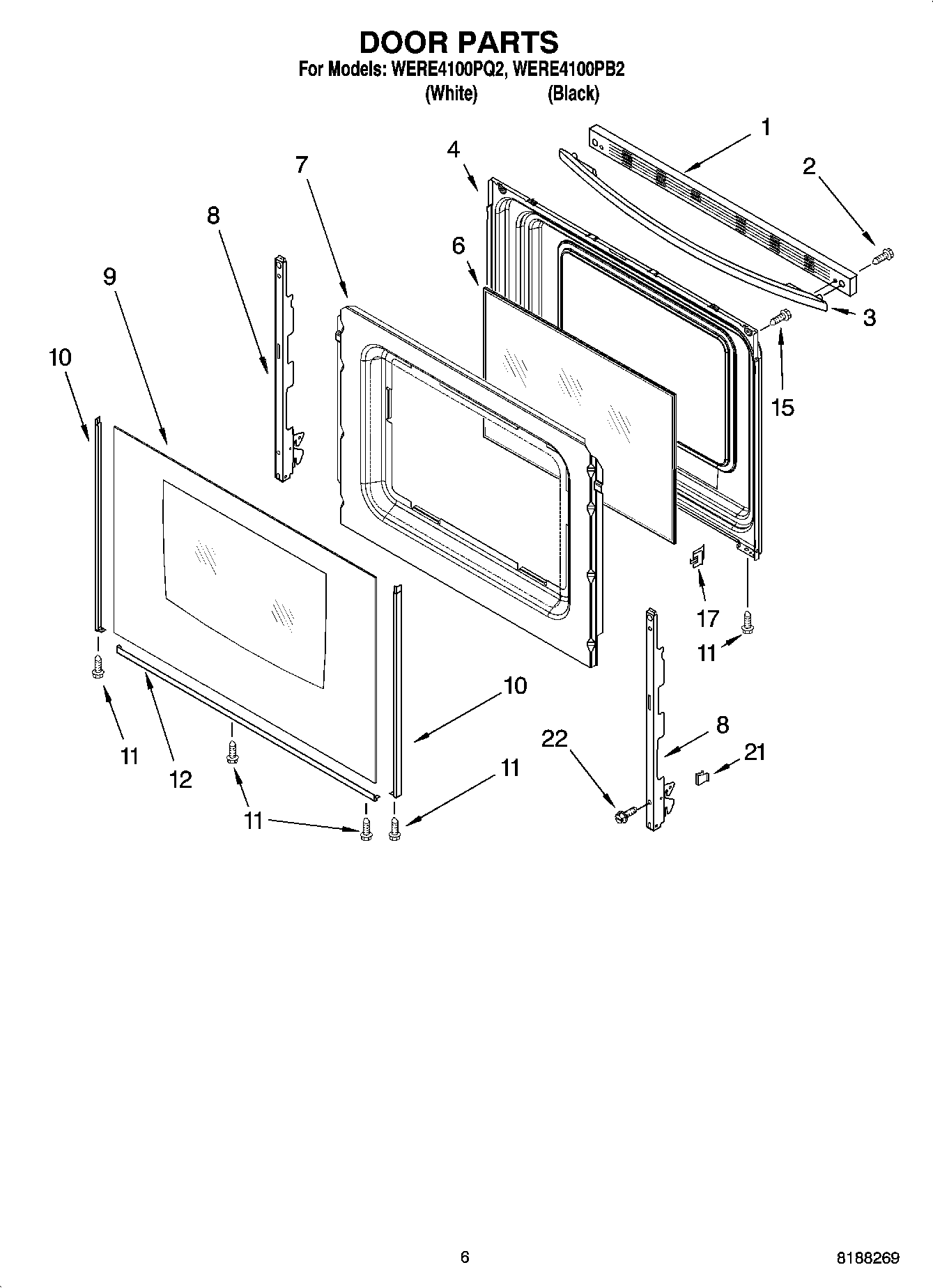

WERE4100PB2 05 – DOOR PARTS, OPTIONAL PARTS

WERE4100PB2 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

WERE4100PB2 05 – DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI164946A
Grease
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
WP3196174 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
WPL 9756350
WPL 9756779
WPL ARI164947A
WPL ARI164945A
WPL ARI164944A
WPL ARI164943A
WPL ARI164942A
WPL ARI164941A
WPL ARI164940A
WPL 9758202
WPL 9761452
WPL 9761451
WPL 9762424
WPL 9756752
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
WP3196154 Whirlpool Screw Assembly
WPW10208653 Whirlpool Insulation
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
814381 Whirlpool Pin
511873 Whirlpool Refrigerator Paint
W11447673 Whirlpool Range Tip Anchor
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
3400964 Whirlpool Oven Clip
FOIL, ALUMINUM OVEN (18“ X 25 )
1WPW10016370 Whirlpool Door Trim
1Trim, Top (Black)
2WP3196164 Whirlpool Screw
3WPW10202216 Whirlpool Door Handle
3WPW10202217 Whirlpool Door Handle
4Liner, Door
6WP8053948 Whirlpool Door Glass
7Retainer, Insul.
8Hinge, Door (2)
9WPW10118455 Whirlpool Door Glass Assembly
9WPW10118454 Whirlpool Door Outer Glass White
10W10761014 Whirlpool Right Door Trim
10WP8523172 Whirlpool Left Door Trim
10WP8523166 Whirlpool Door Trim
10W10761018 Whirlpool Dishwasher Left Door Trim
11W10491985 Whirlpool Screw
12WP8523175 Whirlpool Door Trim Assembly
12WP8523177 Whirlpool Door Trim Assembly
15WP179051 Whirlpool Screw
17Clip, Glass (4)
21WP3196925 Whirlpool Clip Assembly
22WP3196175 Whirlpool Screw
