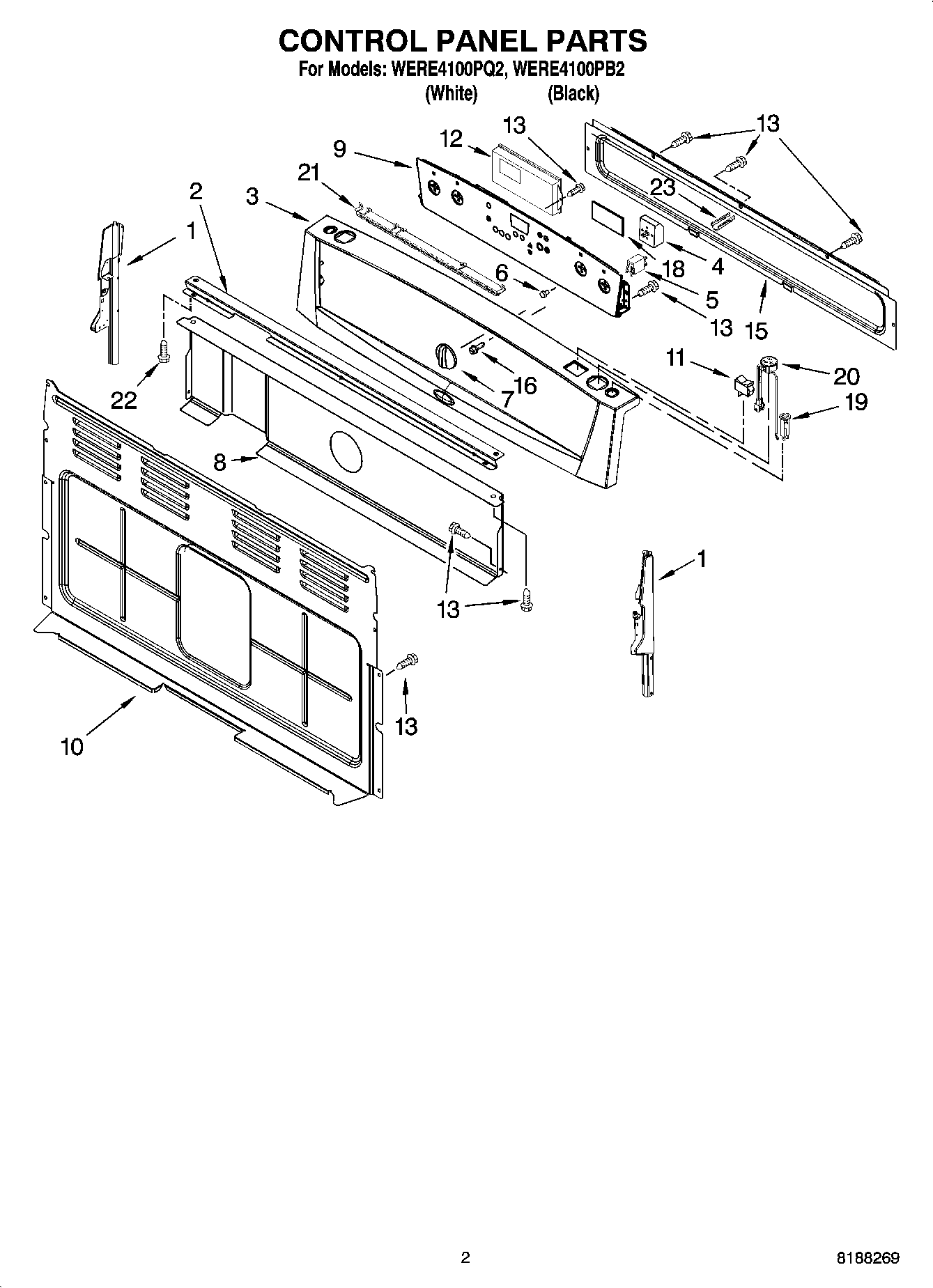

WERE4100PQ2 02 – CONTROL PANEL PARTS

WERE4100PQ2 02 – CONTROL PANEL PARTS

Written by

in

WERE4100PQ2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219370 Whirlpool Endcap Panel
1W11219664 Whirlpool Endcap Panel
1W11219665 Whirlpool Panel Endcap
1W11219365 Whirlpool Panel Endcap
2Bracket, Console
3Panel, Backguard (Black)
3Panel, Backguard (White)
4WP3149400 Whirlpool Oven Infinite Switch
4WP3149404 Whirlpool Oven Surface Element Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7W10851285 Whirlpool Knob
7Knob, Infinite (4) (White)
8Shield, Heat
9Bracket, Control (Black)
9Bracket, Control (White)
10Cover, Rear
11Switch, Rocker (Black)
11Switch, Rocker (White)
12Control, Range
13SCREW
15Cover, Rear (Console)
16WP3400882 Whirlpool Screw
18Card, Insulator
19WP9757601 Whirlpool Breaker
19WP9757602 Whirlpool Breaker
20Receptacle (Black)
20Receptacle (White)
21Re
223196166 Whirlpool Screw
23WPL 9757490
