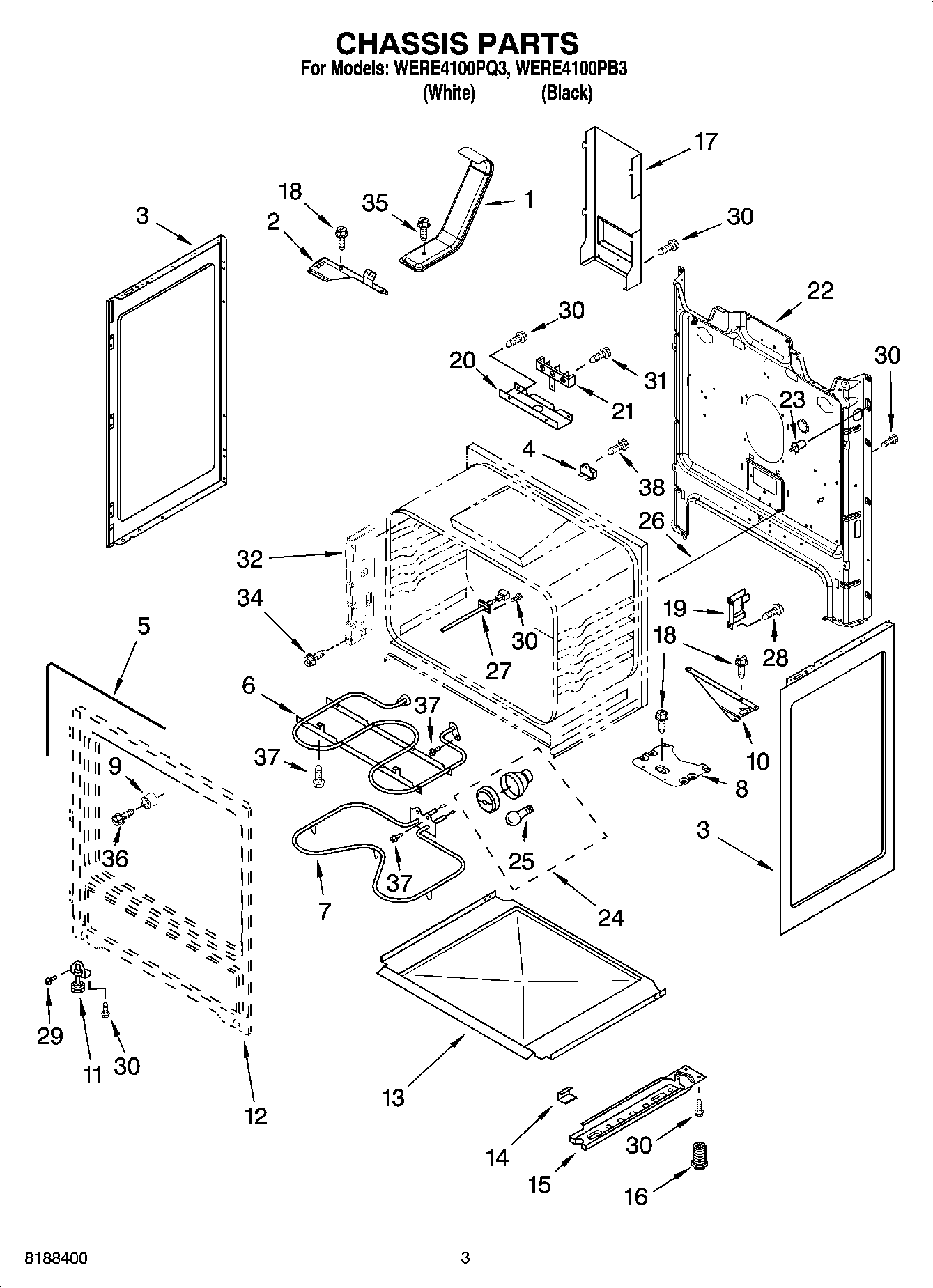

WERE4100PQ3 03 – CHASSIS PARTS

Products

Position	Product
1	WPW10134285 Whirlpool Vent Tube
2	Support, Corner LR
3	WPW10575396 Whirlpool Side Panel
3	W11730303 Whirlpool Side Panel
4	WP3196548 Whirlpool Thermal Fuse
5	W11542153 Whirlpool Door Gasket
6	WP9757341 Whirlpool Broil Element
7	WPW10308477 Whirlpool Bake Element
8	Support, Front (2)
9	W10877054 Whirlpool Spacer Assembly
10	Support, Corner RR
11	WP3196037 Whirlpool Leveling Foot
12	Frame, Front Not Serviced
13	WP8054068 Whirlpool Retainer
14	Clip, Panel (6)
15	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	WPW10326122 Whirlpool Black Cover
18	WP3196557 Whirlpool Screw
19	W10404688 Whirlpool Bracket Support
20	W11728255 Whirlpool Service Bracket
21	WP8203546 Whirlpool Terminal Block
21	WP112432 Whirlpool Nut Assembly
22	Back, Main
23	Switch, Door
24	W11594027 Whirlpool Range Oven Light Socket
25	RANGE ONLY 40W 120V APPL BULB
26	9757239 Whirlpool Oven Door Rod
27	WPW10181986 Whirlpool Oven Sensor
28	WP3196175 Whirlpool Screw
29	Screw
30	SCREW
31	WP3400016 Whirlpool Screw Assembly
32	W10647259 Whirlpool Hinge Receiver
34	W10777162 Whirlpool Screw
35	WP489491 Whirlpool Refrigerator Screw
36	WP3400832 Whirlpool Screw
37	WP3196174 Whirlpool Screw
38	3196172 Whirlpool Oven Screw
38	W11311894 Whirlpool Insulation
38	8053915 Whirlpool Oven Insulation
38	Insulation
38	WPW10208653 Whirlpool Insulation
