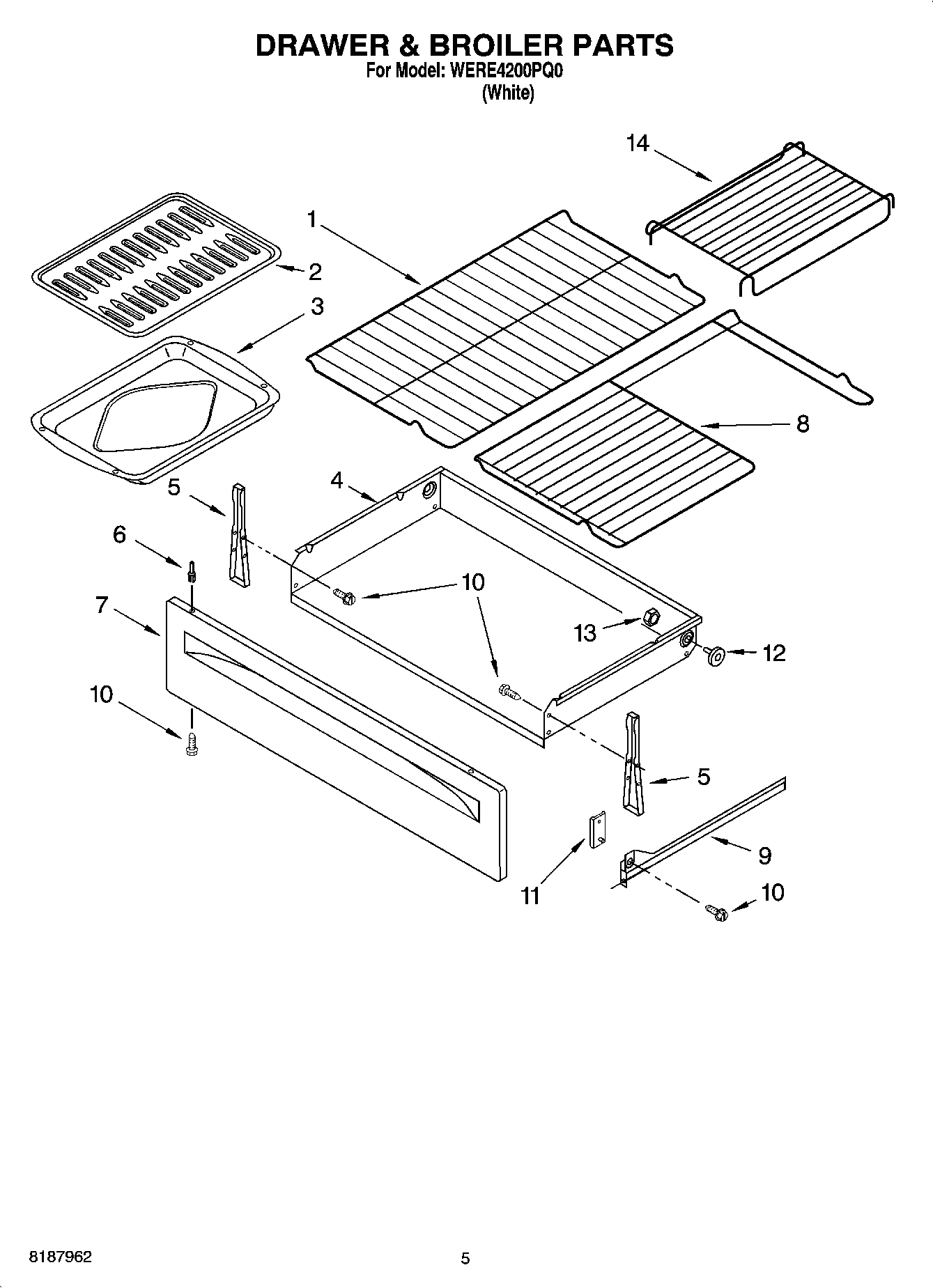

WERE4200PQ0 04 – DRAWER & BROILER PARTS

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
2	WP3195996 Whirlpool Pan Grid
3	WP3196076 Whirlpool Broil Pan
4	Drawer, Storage
5	W10838990 Whirlpool Mounting Bracket
6	WP3196814 Whirlpool Rivet
7	W11219377 Whirlpool Drawer Panel
8	WP8274021 Whirlpool Oven Rack
9	Rail, Drawer (Right Hand)
9	Rail, Drawer (Left Hand)
10	WP3400832 Whirlpool Screw
11	Spacer, Glide
12	814229 Whirlpool Primary Roller
13	WP487939 Whirlpool Refrigerator Nut
14	WP8274022 Whirlpool Oven Rack
