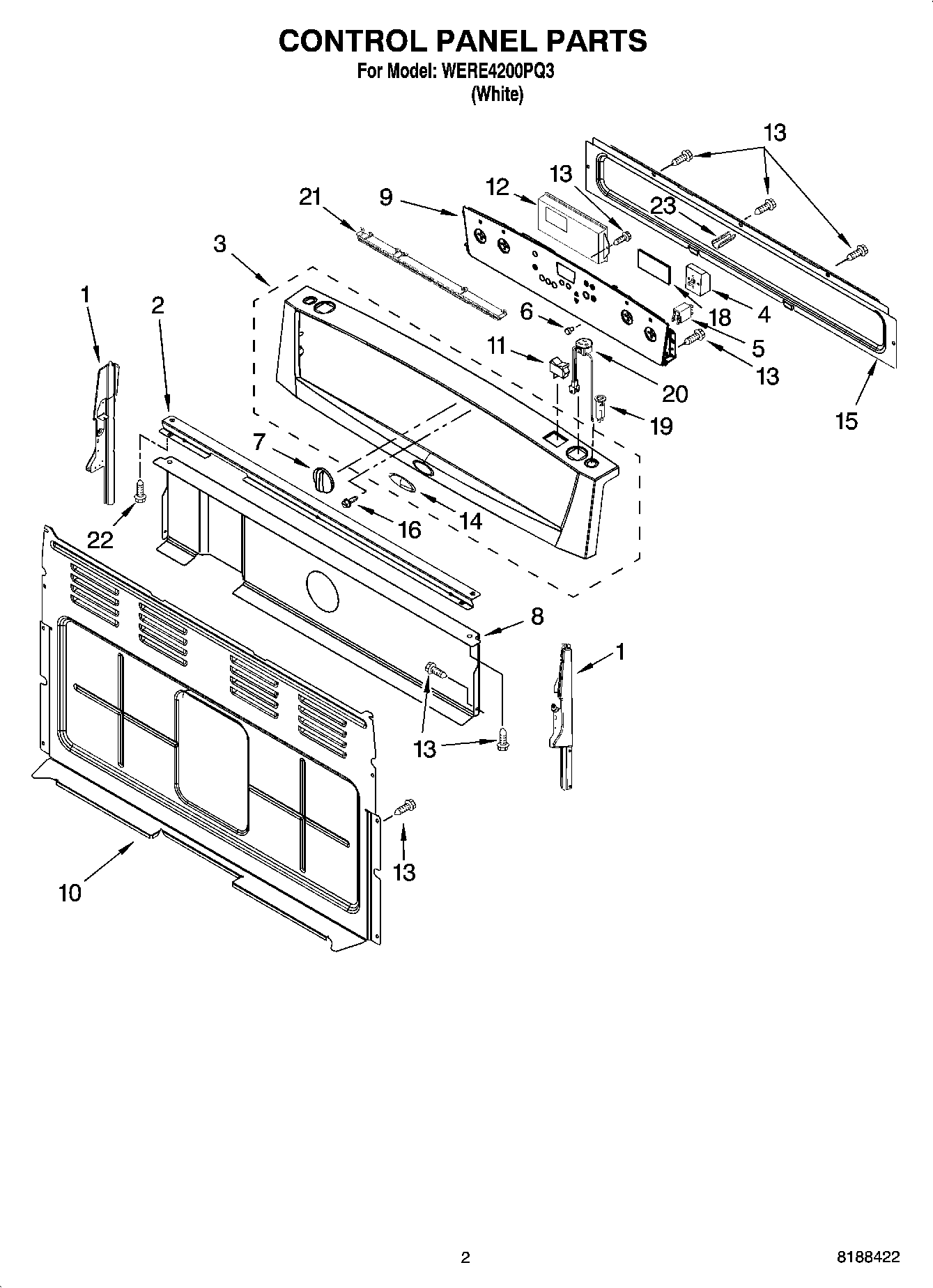

WERE4200PQ3 02 – CONTROL PANEL PARTSadmin2025-04-26T11:59:39+00:00WERE4200PQ3 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | W11219370 Whirlpool Endcap Panel |
| 1 | W11219365 Whirlpool Panel Endcap |
| 2 | Bracket, Console |
| 3 | Panel, Control (White) |
| 4 | WP3149404 Whirlpool Oven Surface Element Switch |
| 4 | WP3149400 Whirlpool Oven Infinite Switch |
| 5 | WP8523265 Whirlpool Indicator Light |
| 6 | WP3196068 Whirlpool Light Lens |
| 7 | Knob, Infinite (4) (White) |
| 8 | Shield, Heat |
| 9 | Bracket, Control |
| 10 | Cover, Rear |
| 11 | Switch, Rocker (White) |
| 12 | Control, Range |
| 13 | SCREW |
| 14 | Nameplate |
| 15 | Cover, Rear (Console) |
| 16 | WP3400882 Whirlpool Screw |
| 18 | Card, Insulator |
| 19 | WP9757601 Whirlpool Breaker |
| 20 | Receptacle (White) |
| 21 | Re |
| 22 | 3196166 Whirlpool Screw |
| 23 | WPL 9757490 |
