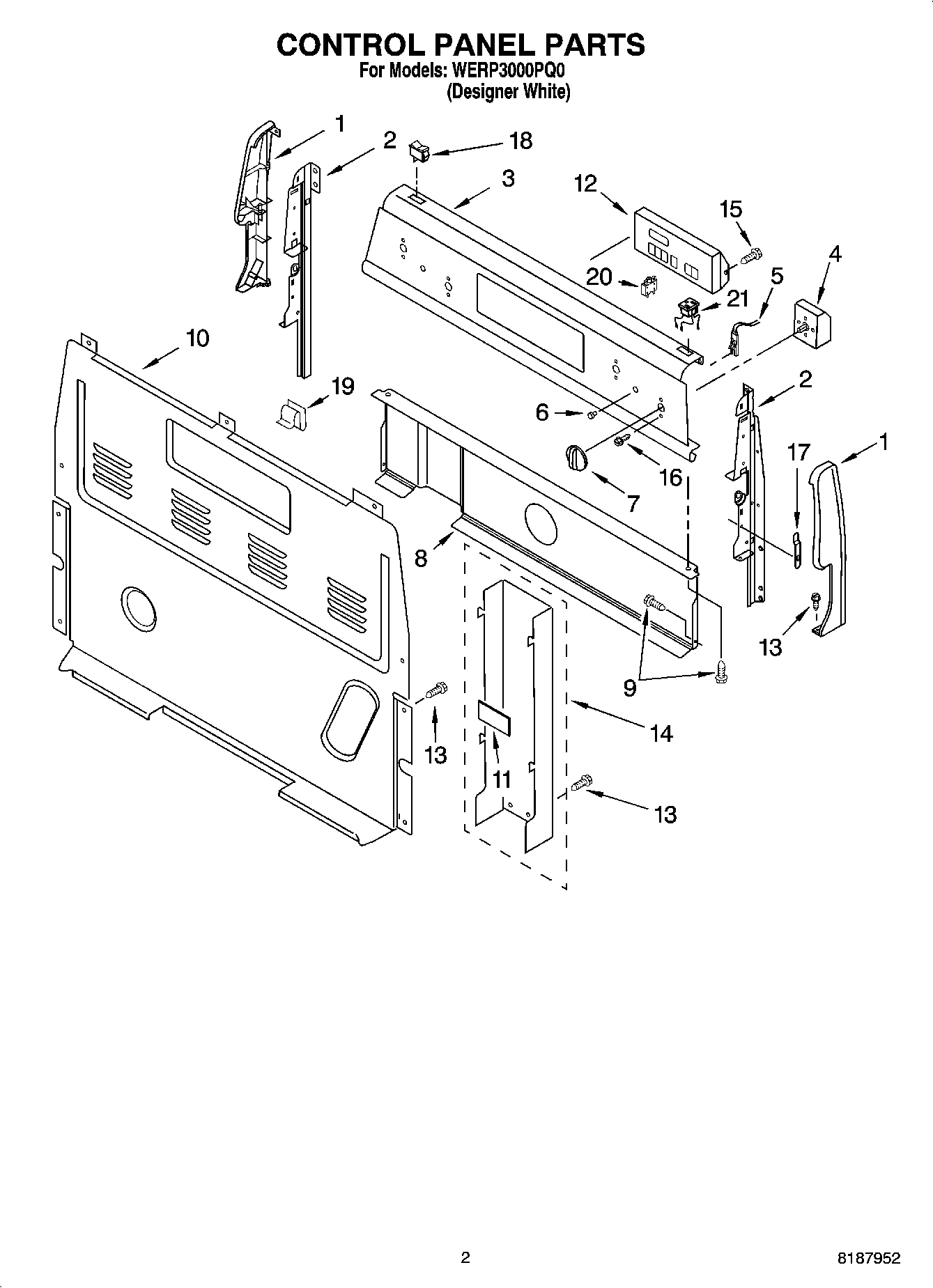

WERP3000PQ0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Endcap (White Left Hand)
1	Endcap (White Right Hand)
2	Support, Endcap (Right Hand)
2	Support, Endcap (Left Hand)
3	Panel, Backguard
4	WP3149400 Whirlpool Oven Infinite Switch
4	WP3148952 Whirlpool Oven Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	WP8522565 Whirlpool Knob
8	Shield, Heat
9	Screw
10	WP8272473 Whirlpool Rear Cover
11	Card, Insulation
12	WP6610457 Whirlpool Electronic Control Board + Core
13	SCREW
14	WPW10326122 Whirlpool Black Cover
15	WP3196557 Whirlpool Screw
16	WP3400882 Whirlpool Screw
17	3196200 Whirlpool Clip
18	3149360 Whirlpool Light Switch
19	WP8273564 Whirlpool Clip
20	Breaker, 15 Amp
21	Outlet, Untimed
