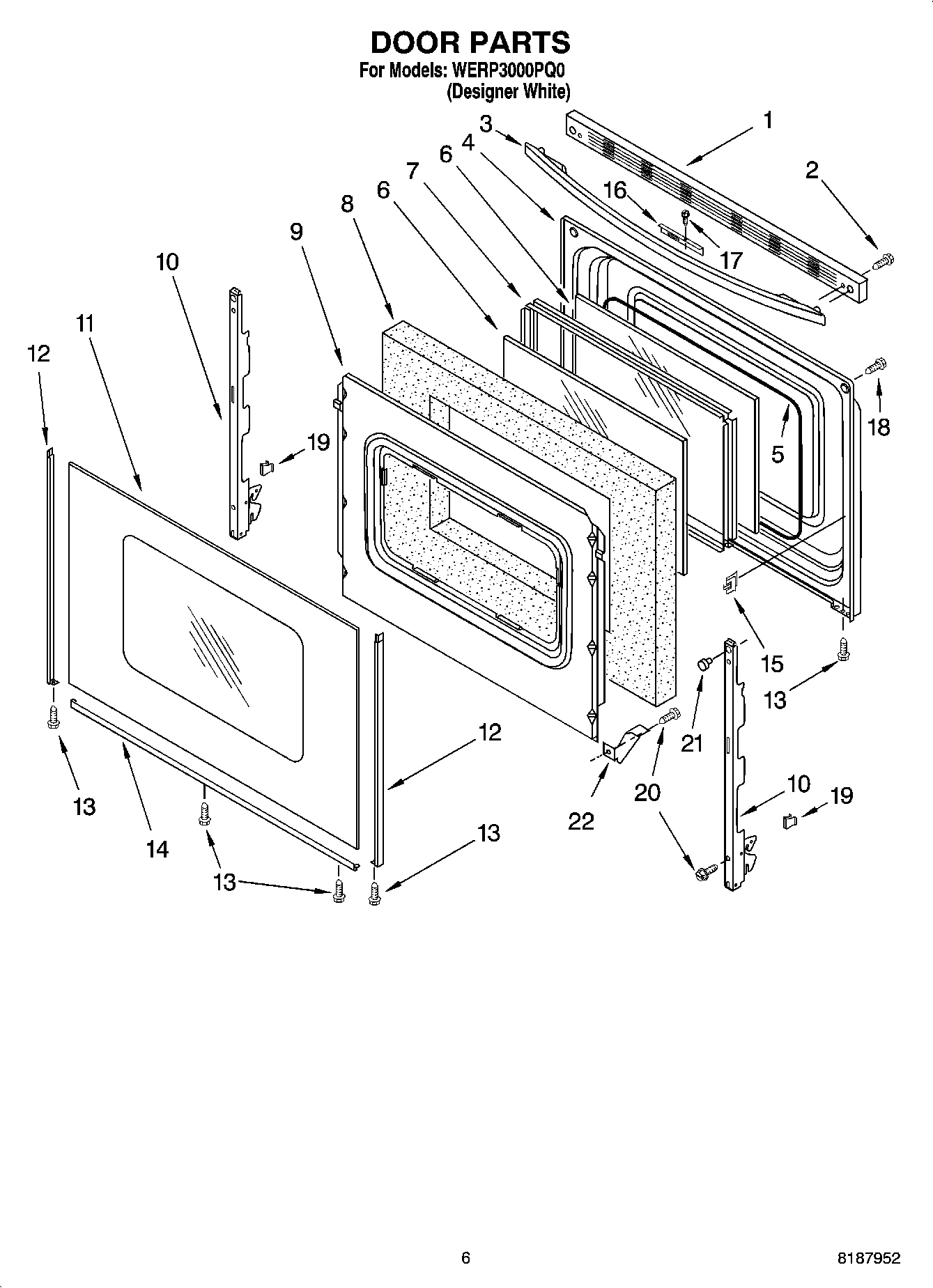

WERP3000PQ0 05 – DOOR PARTS, MISCELLANEOUS PARTS

WERP3000PQ0 05 – DOOR PARTS, MISCELLANEOUS PARTS

Written by

in

WERP3000PQ0 05 – DOOR PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI135103A
Grease
3196696 Whirlpool Clip
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
1
Wire (14 Ga. 200 c Brown)
WPL 9758297
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
WP3196154 Whirlpool Screw Assembly
WPL 8316781
WPL ARI135102A
WPL ARI135101A
WPL ARI135100A
WPL ARI135099A
WPL ARI135098A
WPL 9758417
WPL 9757584
WPL 8523718
WPL 9756779
WPL 9756350
WPL ARI135104A
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
WPW10208653 Whirlpool Insulation
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
285006 Whirlpool Spray
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
814381 Whirlpool Pin
18 Ga. 80~c Rating (Red)
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
FOIL, ALUMINUM OVEN (18“ X 25 )
1WPW10016370 Whirlpool Door Trim
2WP3196164 Whirlpool Screw
3WPW10202216 Whirlpool Door Handle
4Liner, Door
5Seal, Window
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WP8053807 Whirlpool Oven Door Hinge
11WP8053834 Whirlpool Door Glass
12WP8523166 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
13W10491985 Whirlpool Screw
14WP8523175 Whirlpool Door Trim Assembly
15Clip, Glass (4)
18WP179051 Whirlpool Screw
19WP3196925 Whirlpool Clip Assembly
20WP3196175 Whirlpool Screw
21238614 Whirlpool Bumper Hinge
22WP3196794 Whirlpool Glass Bracket
