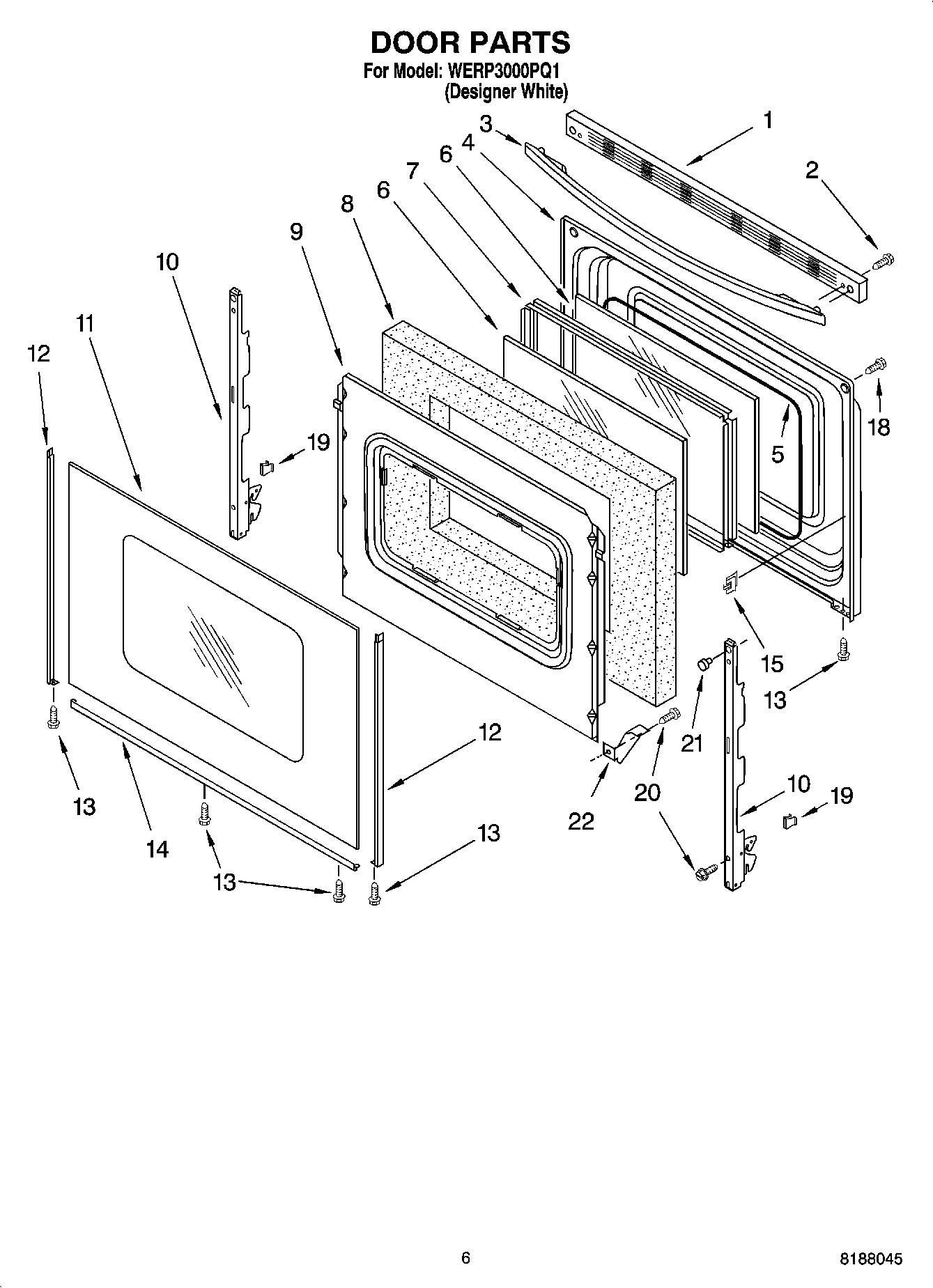

WERP3000PQ1 05 – DOOR PARTS, OPTIONAL PARTS

WERP3000PQ1 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

WERP3000PQ1 05 – DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI135112A
Grease
3196696 Whirlpool Clip
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
WPL 9757584
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
WP3196154 Whirlpool Screw Assembly
WPL ARI135111A
WPL ARI135110A
WPL ARI135109A
WPL ARI135108A
WPL ARI135107A
WPL 9758297
WPL 8523718
WPW10295595 Whirlpool Wire Harness
WPL 9756779
WPL 9756350
WPL ARI135113A
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
WPW10208653 Whirlpool Insulation
FOIL, ALUMINUM OVEN (18“ X 25 )
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
Wire, 25` Roll (Red 14 Ga.)
285006 Whirlpool Spray
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
814381 Whirlpool Pin
1
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
1WPW10016370 Whirlpool Door Trim
2WP3196164 Whirlpool Screw
3WPW10202216 Whirlpool Door Handle
4Liner, Door
5Seal, Window
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WP8053807 Whirlpool Oven Door Hinge
11WP8053834 Whirlpool Door Glass
12WP8523166 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
13W10491985 Whirlpool Screw
14WP8523175 Whirlpool Door Trim Assembly
15Clip, Glass (4)
18WP179051 Whirlpool Screw
19WP3196925 Whirlpool Clip Assembly
20WP3196175 Whirlpool Screw
21238614 Whirlpool Bumper Hinge
22WP3196794 Whirlpool Glass Bracket
