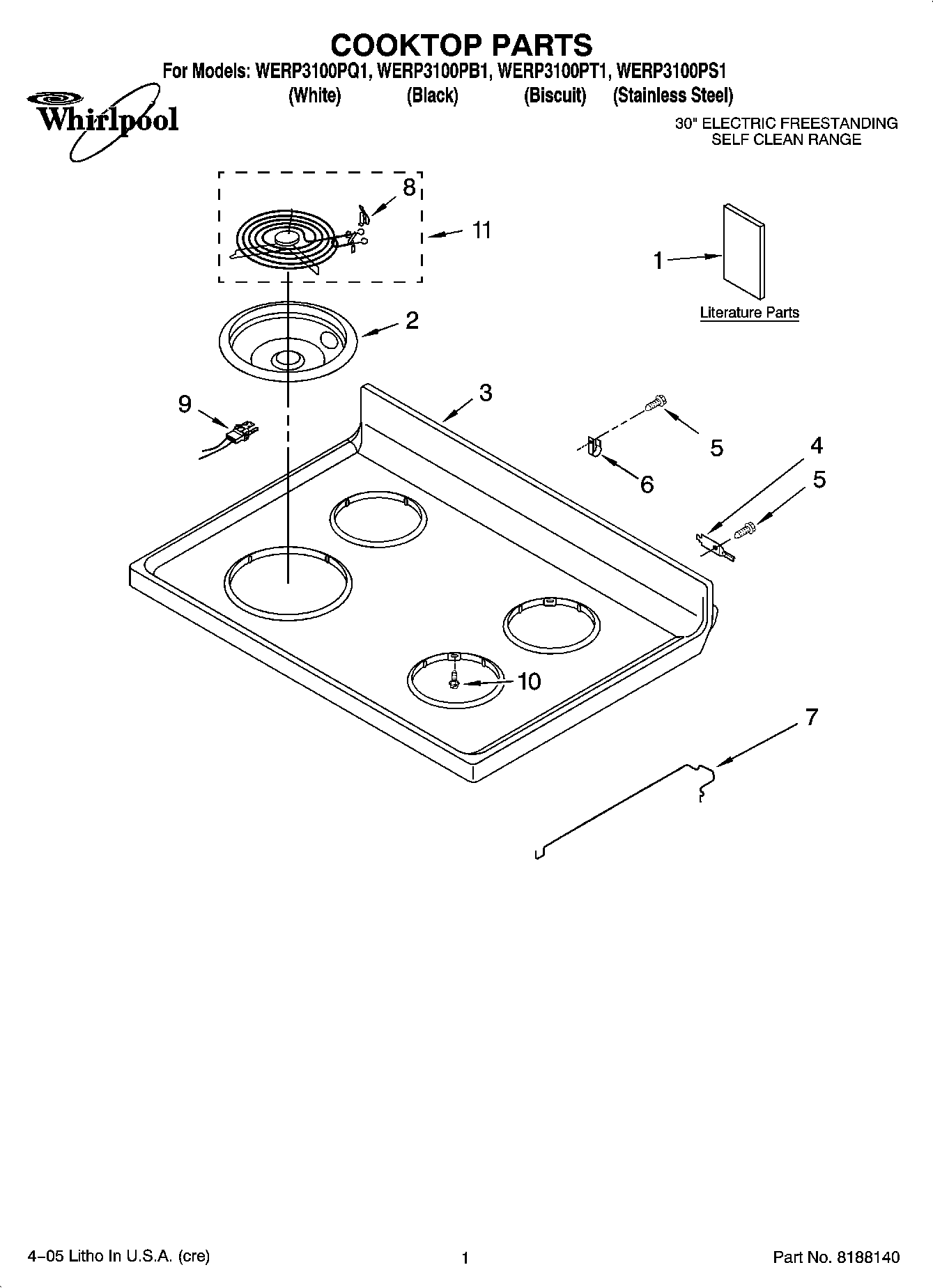

WERP3100PB1 01 – COOKTOP PARTS

Products

Position	Product
1	Use & Care Guide
1	English/Spanish
1	Tech Sheet
1	Installation Instructions Template, Anti-Tip
1	English/French
2	8522882 Whirlpool Oven 6" Drip Pan
2	W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
2	WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
2	WPW10290350 Whirlpool Stove Drip Bowl
2	8522881 Whirlpool Oven 8" Drip Pan
3	8195532 Whirlpool Cooktop Power Switch
3	Cooktop (Biscuit)
3	8195534 Whirlpool Cooktop
4	WP3195060 Whirlpool Cooktop Pin
5	SCREW
6	WP308605 Whirlpool Refrigerator Clamp
7	WP3195812 Whirlpool Cooktop Rod
8	WP3195917 Whirlpool Clip Assembly
9	814399 Whirlpool Receptacle Kit
10	WP3196154 Whirlpool Screw Assembly
11	WP660532 Whirlpool Oven Surface Element
11	WPW10259865 Whirlpool Range 8" Surface Element
