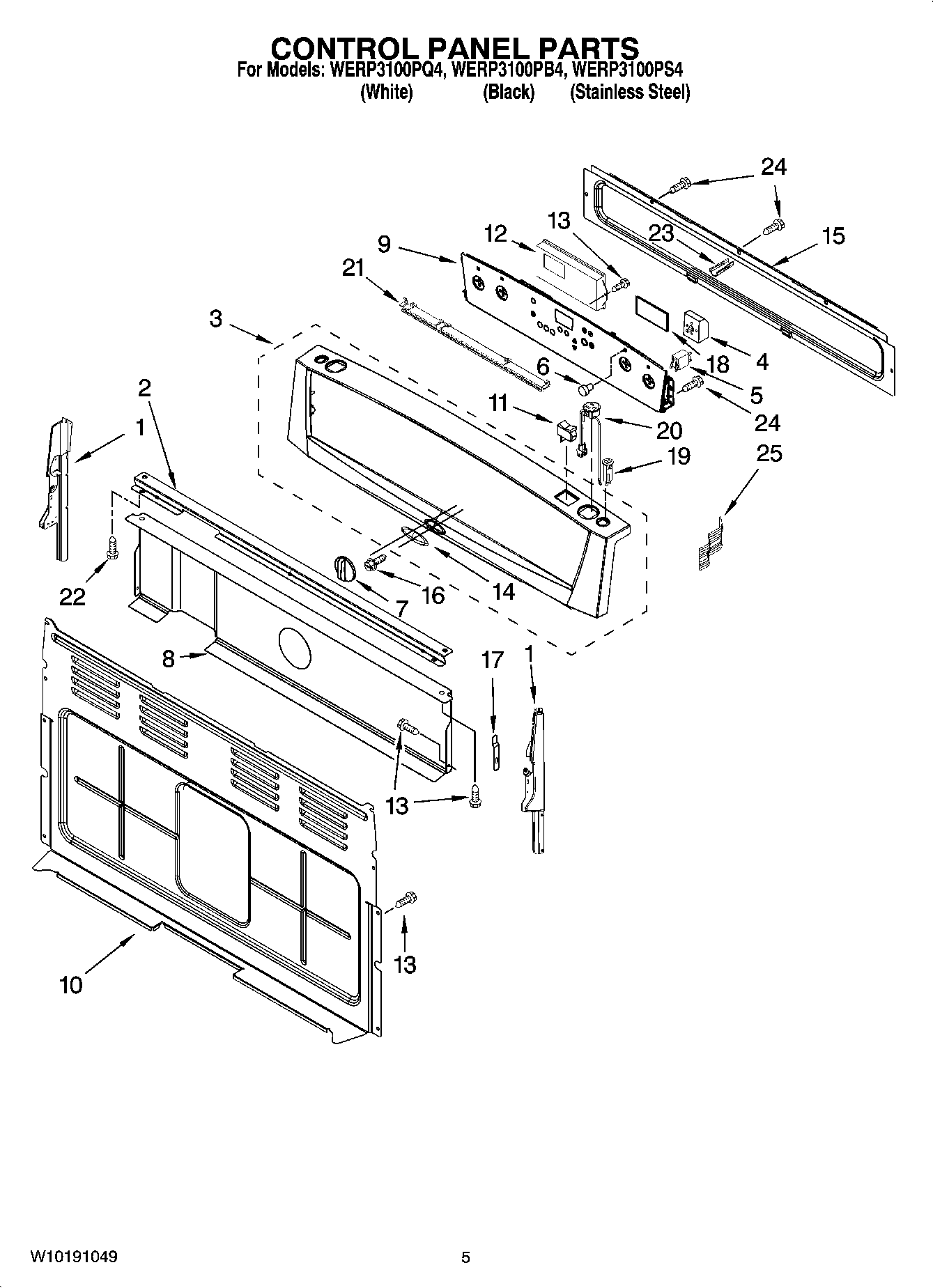

WERP3100PB4 04 – CONTROL PANEL PARTS

WERP3100PB4 04 – CONTROL PANEL PARTS

Written by

in

WERP3100PB4 04 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219365 Whirlpool Panel Endcap
1W11219370 Whirlpool Endcap Panel
1W11219664 Whirlpool Endcap Panel
1W11219665 Whirlpool Panel Endcap
2Bracket, Console
3Panel, Control (Universal Silver)
3Panel, Control (Black)
3Panel, Control (White)
4WP3149400 Whirlpool Oven Infinite Switch
4WP3148952 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7Knob, Infinite (4) (White)
7W10851285 Whirlpool Knob
8Shield, Heat
9Bracket, Control (White)
9Bracket, Control (Black)
10Cover, Rear
11Switch, Rocker (Architect Grey)
11Switch, Rocker (Black)
11Switch, Rocker (White)
12Control, Range
14Nameplate
15Cover, Rear (Console)
16WP3400882 Whirlpool Screw
173196200 Whirlpool Clip
18Card, Insulator
19Breaker, 15Amp (Architect Grey)
19WP9757602 Whirlpool Breaker
19WP9757601 Whirlpool Breaker
20Receptacle (White)
20Receptacle (Architect Grey)
20Receptacle (Black)
21Re
223196166 Whirlpool Screw
23WPL 9757490
24SCREW
25Connector, Flex
