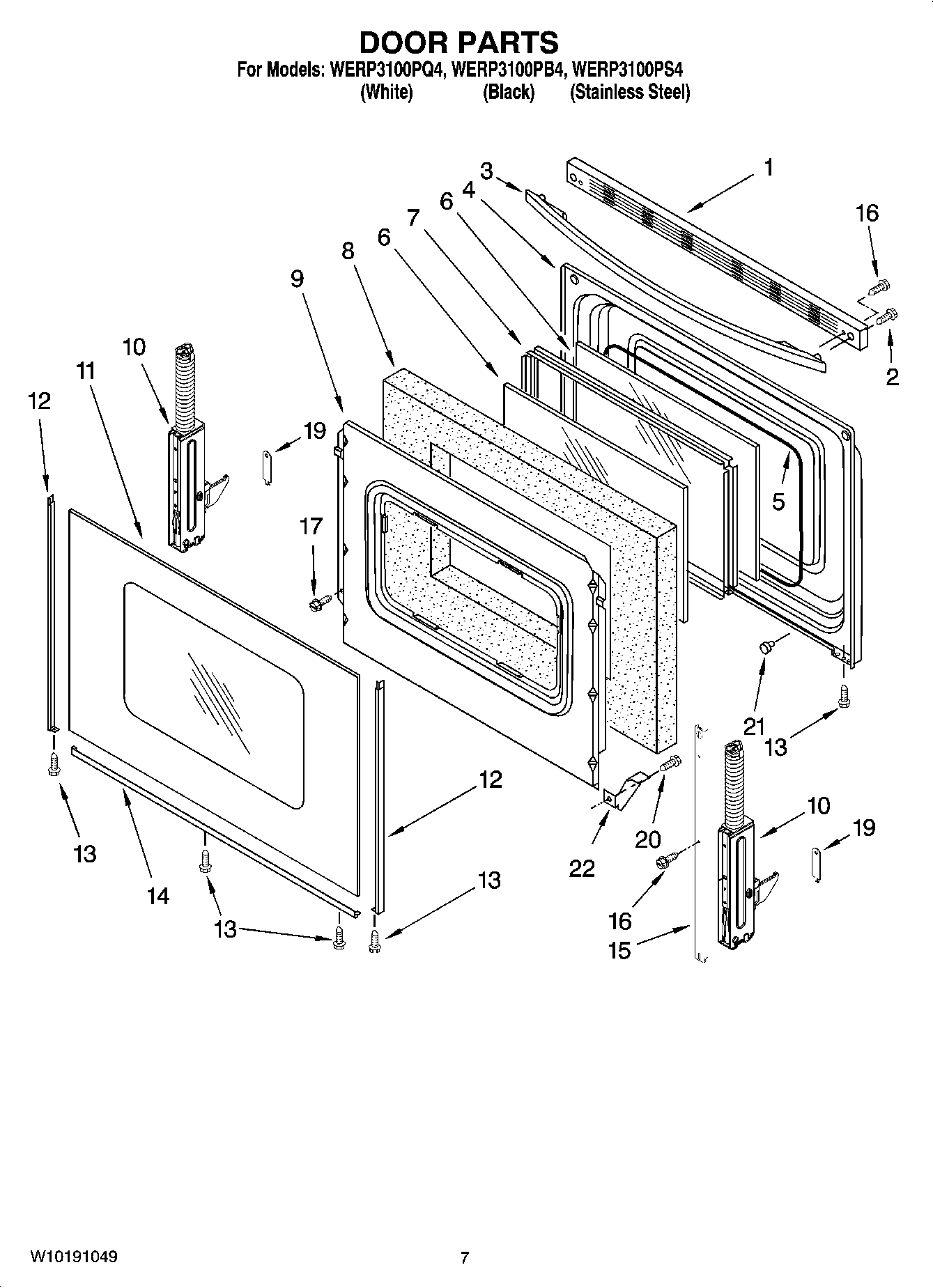

WERP3100PB4 05 – DOOR PARTS, OPTIONAL PARTS

WERP3100PB4 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

WERP3100PB4 05 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI135191A
	3184020 Whirlpool Oven Wire
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	WPL 9758180
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	Grease
	WP3196154 Whirlpool Screw Assembly
	WPL ARI135190A
	WPL ARI135189A
	WPL ARI135188A
	WPL ARI135187A
	WPL ARI135186A
	WPL 9762424
	WPL 9759580
	WPW10295595 Whirlpool Wire Harness
	WPL 9756779
	WPL 9756350
	WPL ARI135192A
	Wire (14 Ga. 200 c Brown)
	285006 Whirlpool Spray
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	4392899 Whirlpool Biscuit Touch-Up Paint
	Wire, 25` Roll (Red 14 Ga.)
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	FOIL, ALUMINUM OVEN (18“ X 25 )
	511873 Whirlpool Refrigerator Paint
	W11447673 Whirlpool Range Tip Anchor
	4392901 Whirlpool Biscuit Spray Paint
	350942 Whirlpool Spray Paint
	WPL 799832
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	3400964 Whirlpool Oven Clip
	WPW10208653 Whirlpool Insulation
	350930 Whirlpool White Spray Paint
1	WPW10016370 Whirlpool Door Trim
1	Trim, Top (Black)
1	Trim, Top (Black and S.Steel Models)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
3	WPW10202216 Whirlpool Door Handle
4	WP9761344 Whirlpool Door Liner
5	Seal, Window
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	W10347464 Whirlpool Door Hinge
10	W10347466 Whirlpool Door Hinge
11	WPW10330077 Whirlpool Door Glass
11	WPW10118455 Whirlpool Door Glass Assembly
11	WPW10118454 Whirlpool Door Outer Glass White
12	WP8523172 Whirlpool Left Door Trim
12	WP8523166 Whirlpool Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
12	W10761014 Whirlpool Right Door Trim
13	W10491985 Whirlpool Screw
14	WP8523175 Whirlpool Door Trim Assembly
14	WP8523180 Whirlpool Door Trim Assembly
14	WP8523177 Whirlpool Door Trim Assembly
15	W11502236 Whirlpool Door Trim
16	W10777162 Whirlpool Screw
17	WPW10031790 Whirlpool Screw
19	9761517 Whirlpool Oven Clip Assembly
20	WP3196175 Whirlpool Screw
21	238614 Whirlpool Bumper Hinge
22	WP3196794 Whirlpool Glass Bracket
