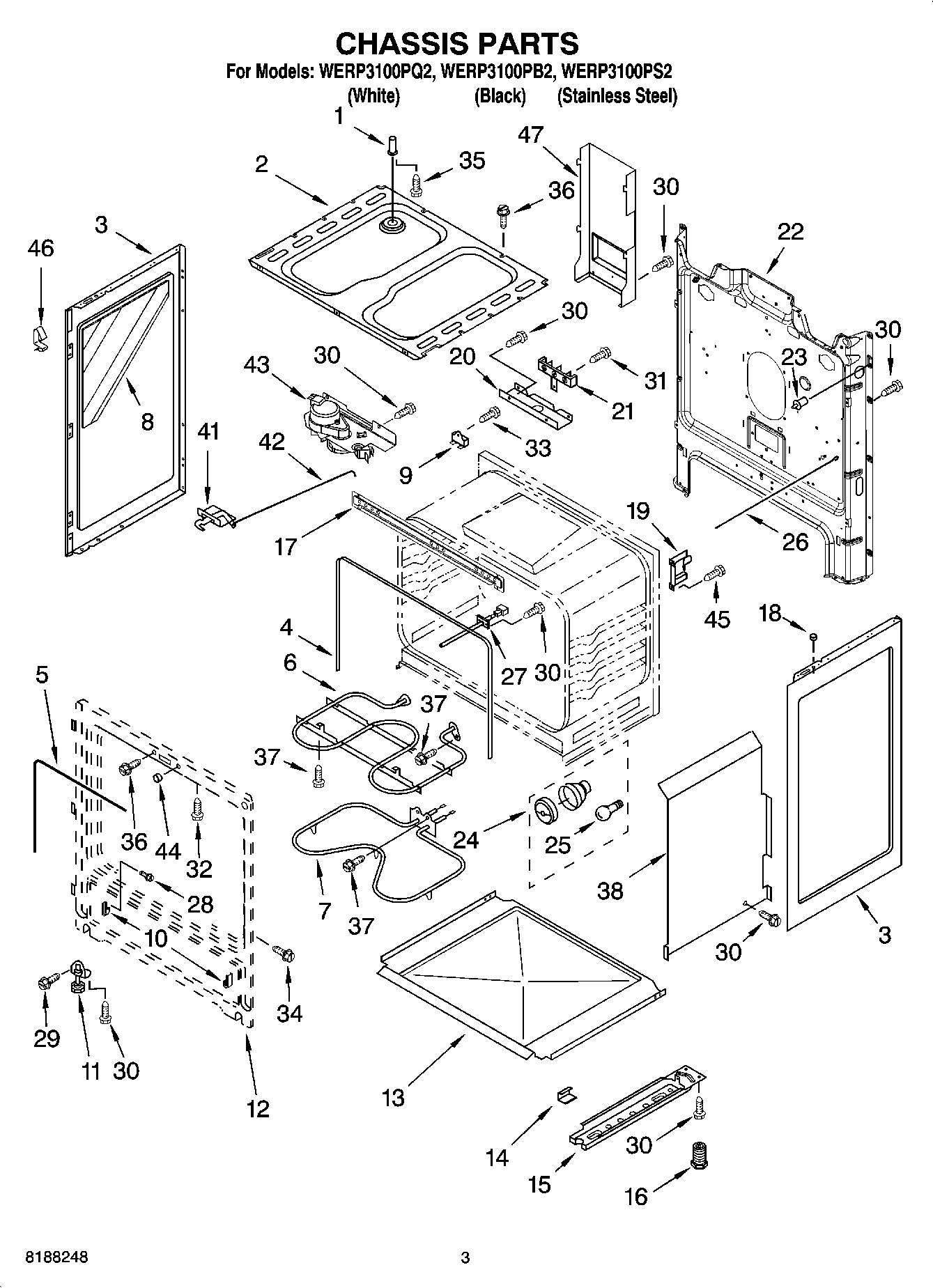

WERP3100PS2 03 – CHASSIS PARTS

Products

Position	Product
1	9755804 Whirlpool Oven Vent Tube
2	W11699791 Whirlpool Burner Box
3	WPW10575396 Whirlpool Side Panel
3	W11730303 Whirlpool Side Panel
4	Seal, Oven Flange
5	W11542153 Whirlpool Door Gasket
6	WP9757341 Whirlpool Broil Element
7	WPW10308477 Whirlpool Bake Element
8	Insulation
9	WP3196548 Whirlpool Thermal Fuse
10	WPW10114344 Whirlpool Drawer Glide
11	WP3196037 Whirlpool Leveling Foot
12	Frame, Front Not Serviced
13	WP8054068 Whirlpool Retainer
14	Clip, Panel (6)
15	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	Guard, Wire
18	238614 Whirlpool Bumper Hinge
19	W10404688 Whirlpool Bracket Support
20	W11728255 Whirlpool Service Bracket
21	WP112432 Whirlpool Nut Assembly
21	WP8203546 Whirlpool Terminal Block
22	Back, Main
23	W11243424 Whirlpool Light Switch
24	W11594027 Whirlpool Range Oven Light Socket
25	RANGE ONLY 40W 120V APPL BULB
26	9757239 Whirlpool Oven Door Rod
27	WPW10181986 Whirlpool Oven Sensor
28	WP3196175 Whirlpool Screw
29	Screw
31	WP3400016 Whirlpool Screw Assembly
32	SCREW
33	3196172 Whirlpool Oven Screw
34	WP7101P246-60 Whirlpool Screw
35	WP3196567 Whirlpool Screw
36	WP3400832 Whirlpool Screw
37	WP3196174 Whirlpool Screw
38	Retainer, Side (2)
41	W11169708 Whirlpool Screw
41	WP9761013 Whirlpool Door Latch
42	Rod, Latch
43	WPW10107830 Whirlpool Stove Door Lock Latch Assembly
44	W10877054 Whirlpool Spacer Assembly
45	WP3196557 Whirlpool Screw
46	Clip – Mounting
47	WPW10208653 Whirlpool Insulation
47	WPW10326122 Whirlpool Black Cover
47	WP8272612 Whirlpool Insulation
47	Insulation
