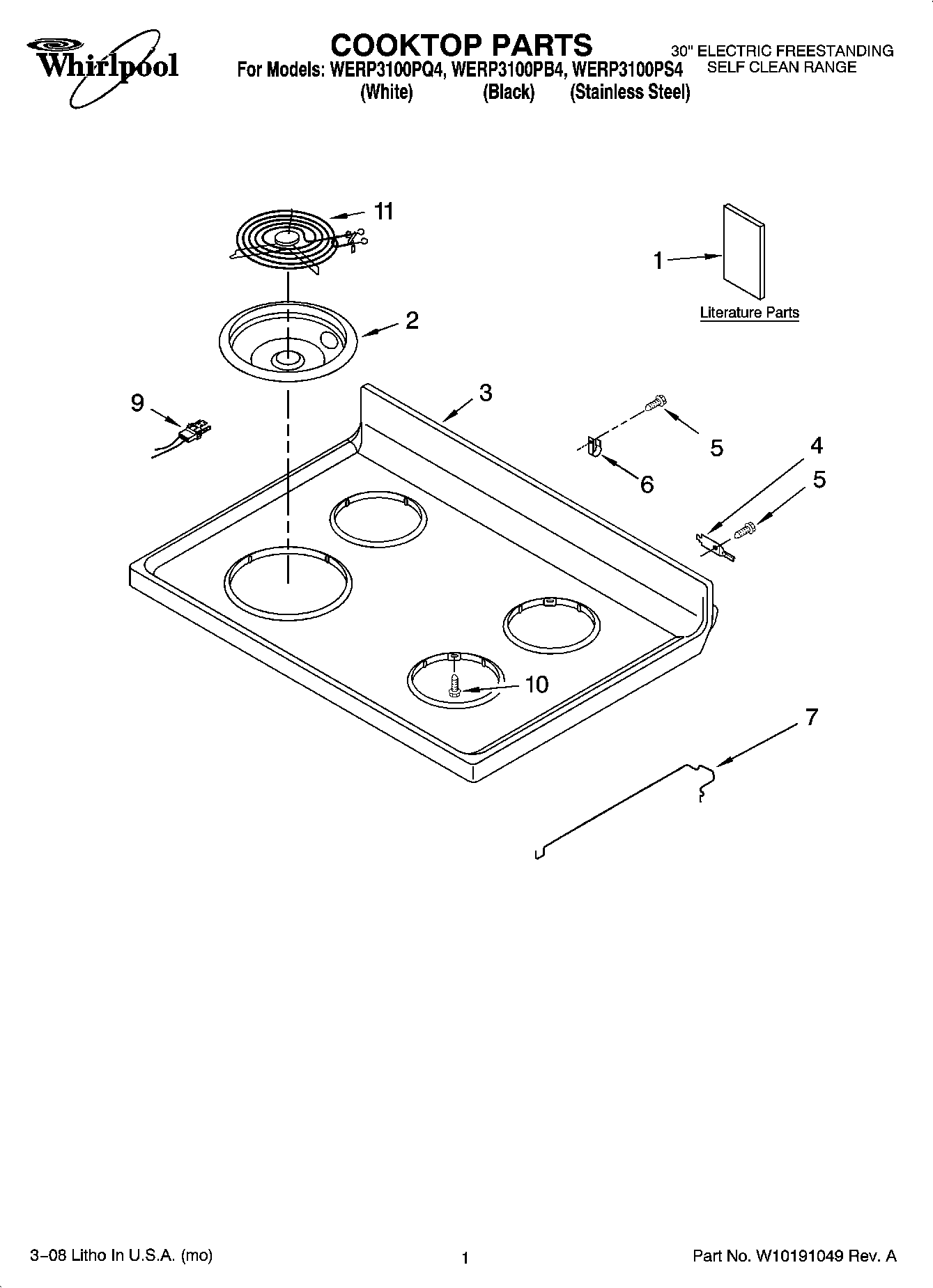

WERP3100PS4 01 – COOKTOP PARTS

WERP3100PS4 01 – COOKTOP PARTS

Written by

in

WERP3100PS4 01 – COOKTOP PARTS

Products

PositionProduct
1Owners Manual
1Tech Sheet
1Anti-Tip Template (English/Spanish)
1Anti-Tip Template (English/French)
1Installation Instructions
2WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
2WPW10290350 Whirlpool Stove Drip Bowl
38195534 Whirlpool Cooktop
38195532 Whirlpool Cooktop Power Switch
4WP3195060 Whirlpool Cooktop Pin
5SCREW
6WP308605 Whirlpool Refrigerator Clamp
7WP3195812 Whirlpool Cooktop Rod
9814399 Whirlpool Receptacle Kit
10WP3196154 Whirlpool Screw Assembly
11WPW10259865 Whirlpool Range 8" Surface Element
11WP660532 Whirlpool Oven Surface Element
