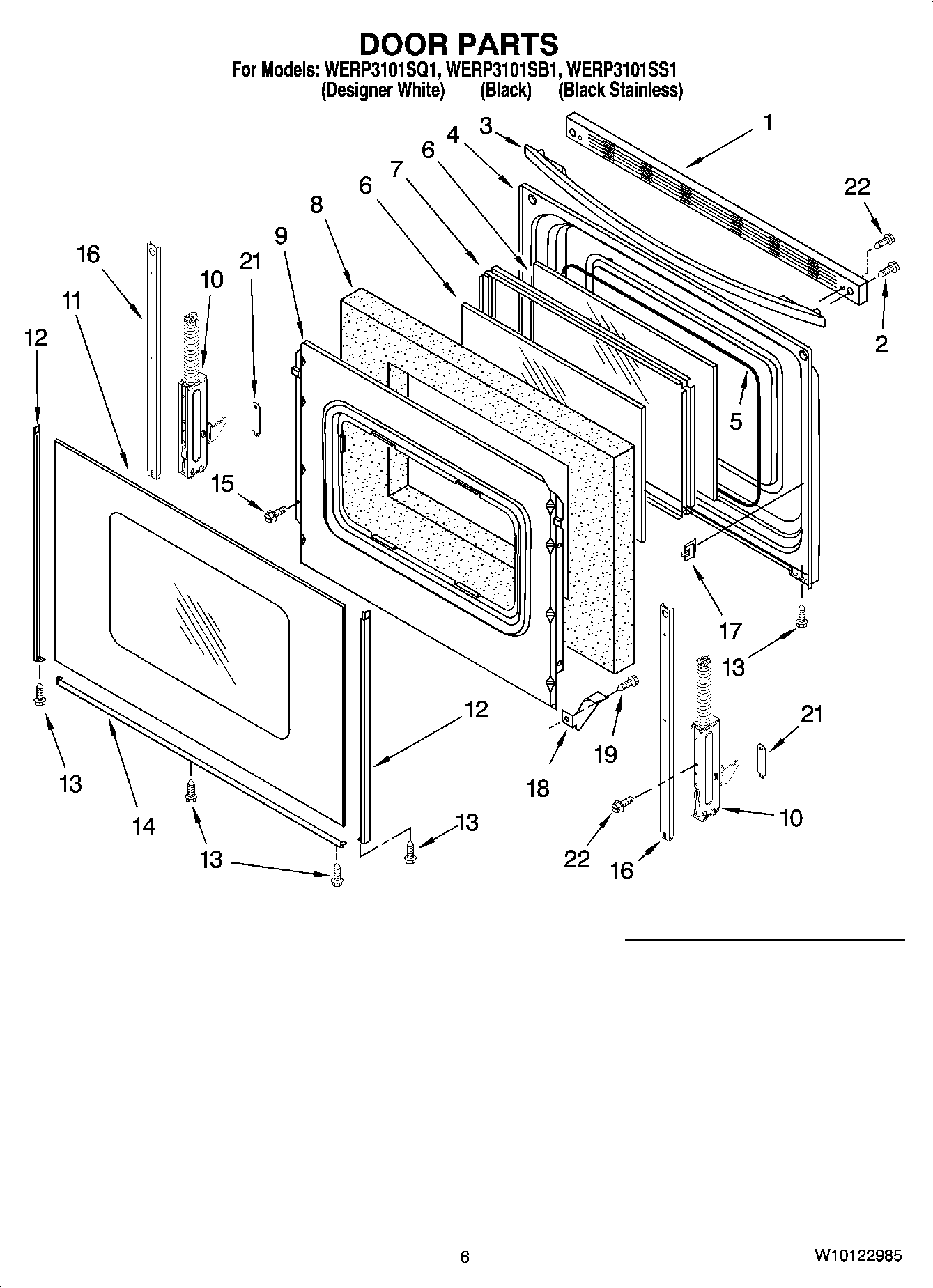

WERP3101SB1 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

WERP3101SB1 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

WERP3101SB1 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
W11244557 Whirlpool Screw
WPL W10083590
W11172524 Whirlpool Wire Harness
WPW10295595 Whirlpool Wire Harness
3184020 Whirlpool Oven Wire
242831 Whirlpool Oven Wire
Wire (14 Ga. 150 c Blue)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
WPL 9756779
Wire (14 Ga. 200 c Brown)
WPL ARI135336A
WP3196154 Whirlpool Screw Assembly
Grease
8212471 Whirlpool Oven Paint
WPL ARI135330A
WPL ARI135331A
WPL ARI135332A
511873 Whirlpool Refrigerator Paint
350942 Whirlpool Spray Paint
Almond (Uncut)
WPL ARI135335A
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
WPL 799832
WPW10208653 Whirlpool Insulation
FOIL, ALUMINUM OVEN (18“ X 25 )
W11447673 Whirlpool Range Tip Anchor
WPL ARI135333A
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
350930 Whirlpool White Spray Paint
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
WPL ARI135334A
1WP9762391 Whirlpool Door Trim Assembly
1Trim, Top (White)
2WP3196164 Whirlpool Screw
3Handle, Door (Black)
3Handle, Door (White)
4WP9761344 Whirlpool Door Liner
5Seal, Window
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10W10347466 Whirlpool Door Hinge
11Glass, Outer (Stainless Steel)
11WPW10118454 Whirlpool Door Outer Glass White
11WPW10118455 Whirlpool Door Glass Assembly
12W10761014 Whirlpool Right Door Trim
12WP8523166 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
13W10491985 Whirlpool Screw
14WP8523180 Whirlpool Door Trim Assembly
14WP8523175 Whirlpool Door Trim Assembly
14WP8523177 Whirlpool Door Trim Assembly
15WPW10031790 Whirlpool Screw
16W11502236 Whirlpool Door Trim
17Clip, Glass (4)
18WP3196794 Whirlpool Glass Bracket
19WP3196175 Whirlpool Screw
219761517 Whirlpool Oven Clip Assembly
22W10777162 Whirlpool Screw
