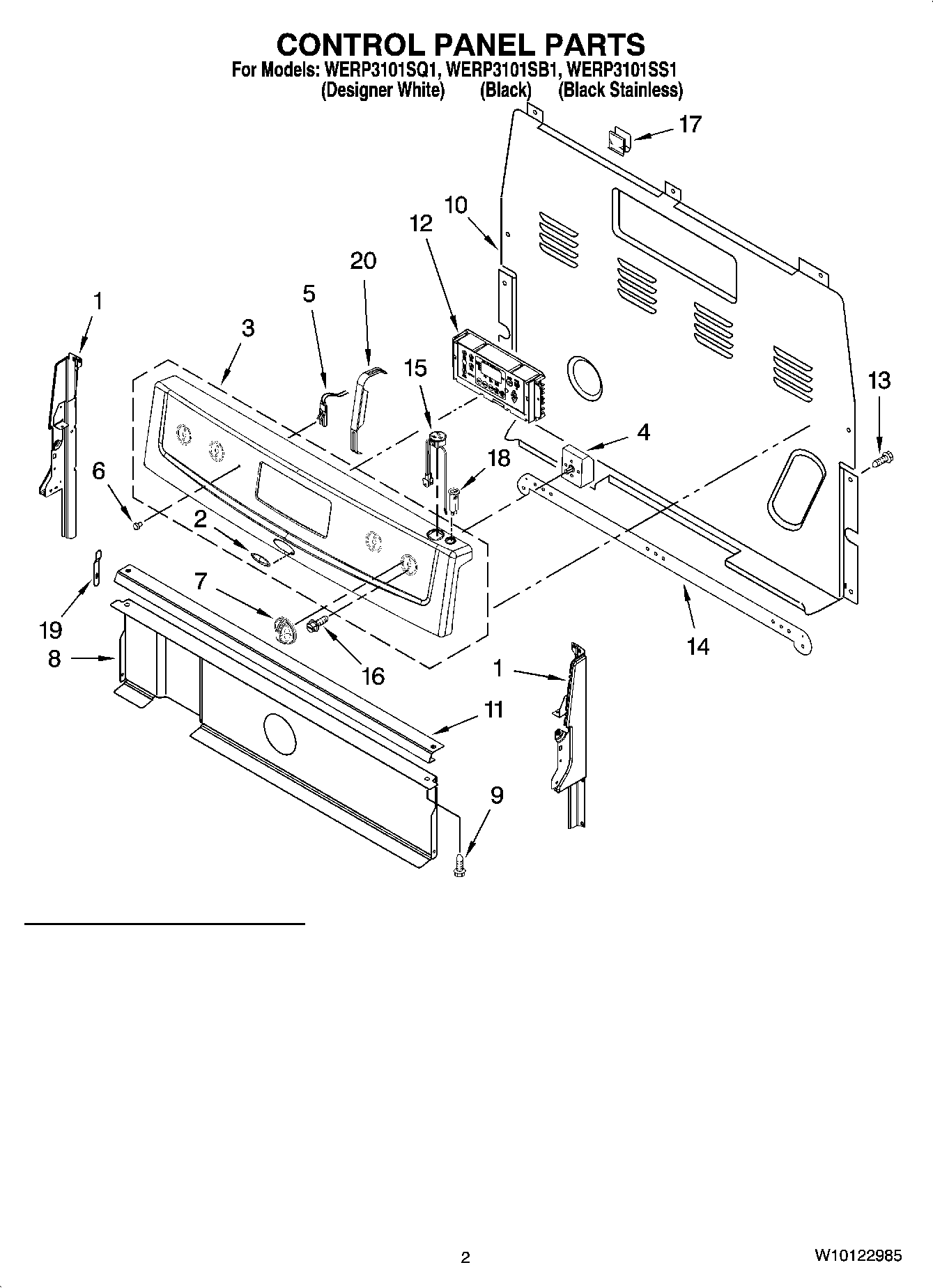

WERP3101SQ1 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
1	W11219665 Whirlpool Panel Endcap
2	Nameplate
3	Panel, Control (Silver)
3	Panel, Control (Black)
3	Panel, Control (White)
4	WP3149400 Whirlpool Oven Infinite Switch
4	WP3148952 Whirlpool Oven Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	WP9761964 Whirlpool Knob
7	WP9761962 Whirlpool Range Stove Burner Control Knob
8	Shield, Heat
9	3196166 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	Bracket, Console
12	W10840298 Whirlpool Control Assembly
13	SCREW
14	Guard, Wire
15	Receptacle (Black)
15	Receptacle (Stainless Steel)
15	Receptacle (2)
16	WP3400882 Whirlpool Screw
17	WP8273564 Whirlpool Clip
18	WP9757602 Whirlpool Breaker
18	Breaker, 15Amp (Architect Grey)
18	WP9757601 Whirlpool Breaker
19	3196200 Whirlpool Clip
20	BRACKET, MOUNTING EOC
