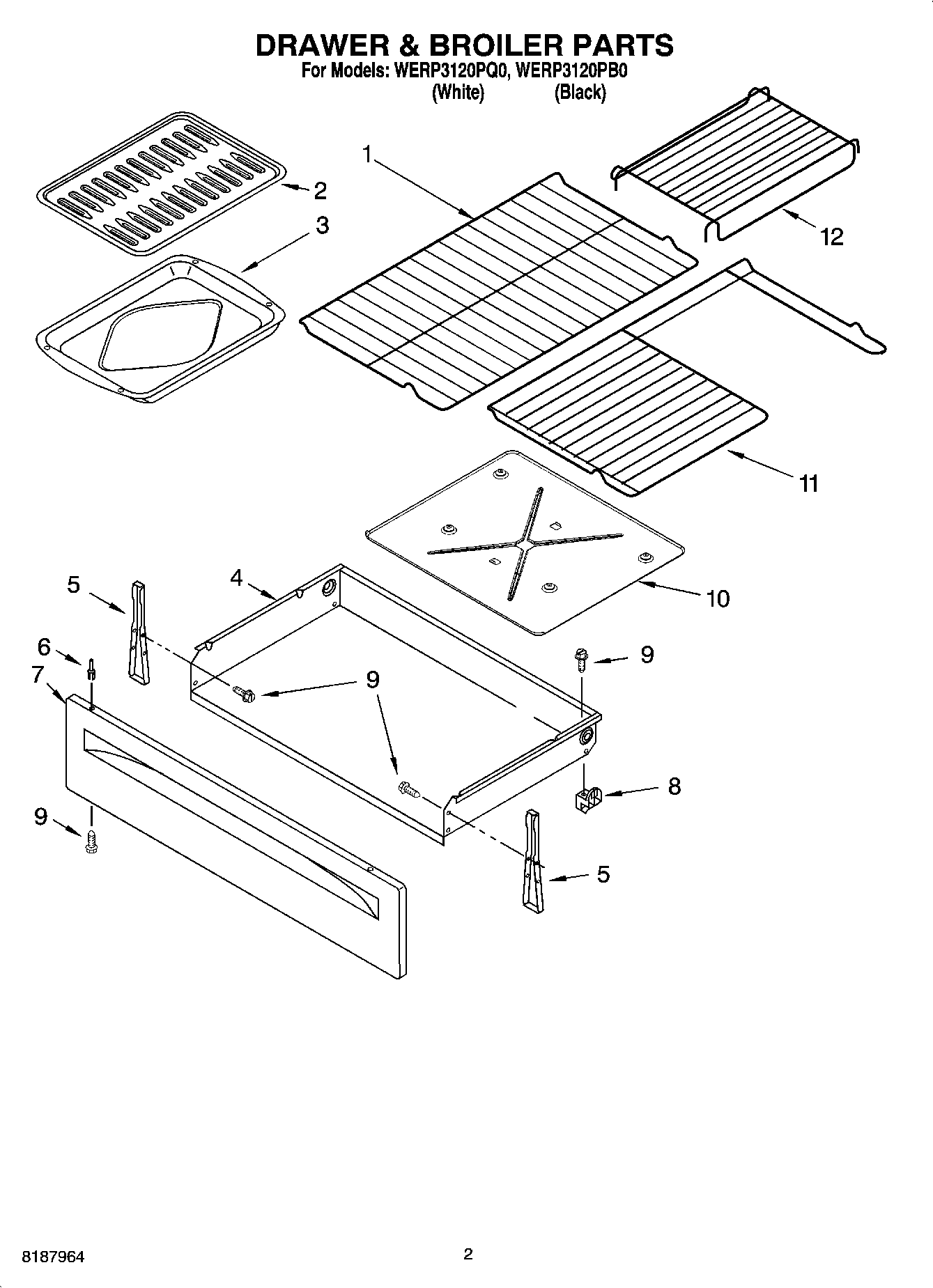

WERP3120PB0 02 – DRAWER & BROILER PARTS

WERP3120PB0 02 – DRAWER & BROILER PARTS

Written by

in

WERP3120PB0 02 – DRAWER & BROILER PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5W10838990 Whirlpool Mounting Bracket
6WP3196814 Whirlpool Rivet
6WP3196813 Whirlpool Rivet
7W11230488 Whirlpool Drawer Panel
7W11219377 Whirlpool Drawer Panel
8WP8053334 Whirlpool Drawer Glide
9WP3400832 Whirlpool Screw
10Heat Shield, Drawer
11WP8274021 Whirlpool Oven Rack
12WP8274022 Whirlpool Oven Rack
